Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER CLUSTER FINISH PANEL
(See CENTER CLUSTER FINISH PANEL )
REMOVE LOWER CENTER CLUSTER FINISH PANEL
(See LOWER CENTER CLUSTER FINISH PANEL )
REMOVE A/C CONTROL ASSEMBLY
1. Remove the 4 bolts and pull out the A/C control assembly with radio assembly, then disconnect the connectors.

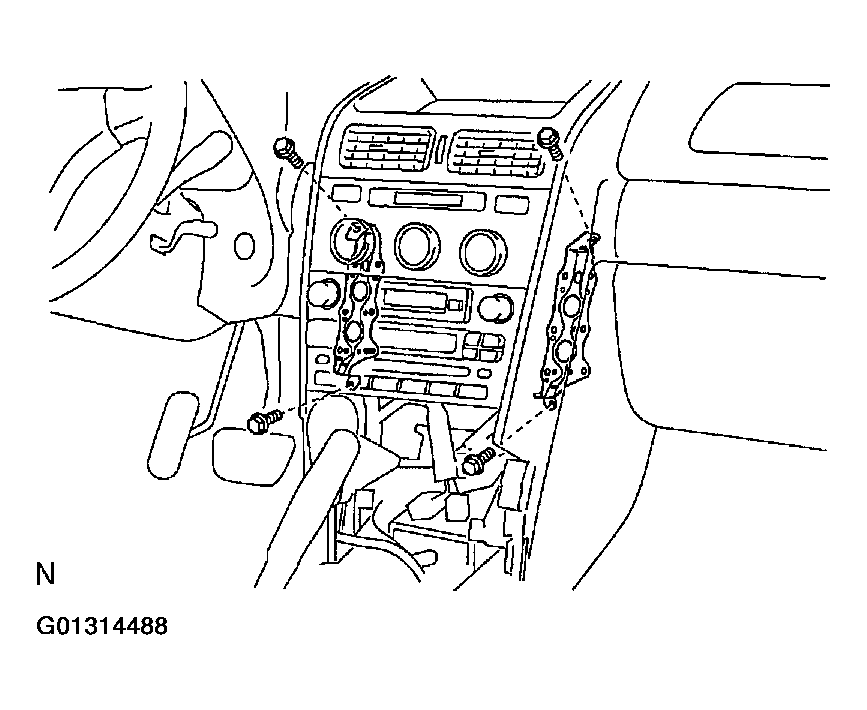

  Fig 1: Removing A/C Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 12 screws and 2 brackets.
3. Separate the A/C control assembly and radio assembly.

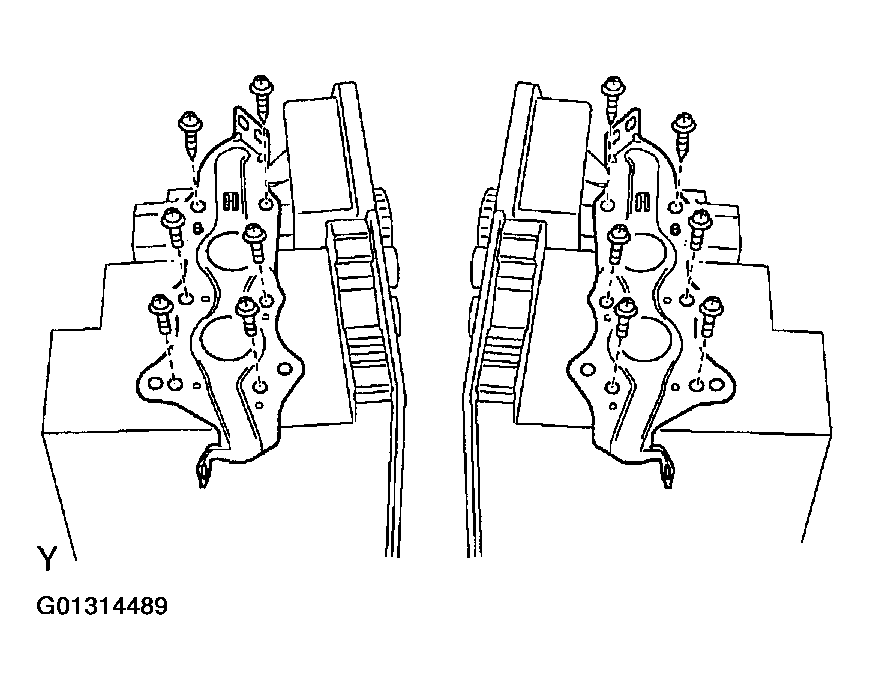

Fig 2: Separating A/C Control Assembly And Radio Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
