Blower Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL (See INSTRUMENT PANEL )
REMOVE AIR DUCT (DUCT SIDE)
1. Disconnect the connector and connector clamp.
2. Remove the screw.
3. Release the 2 claws and pull out the air duct.

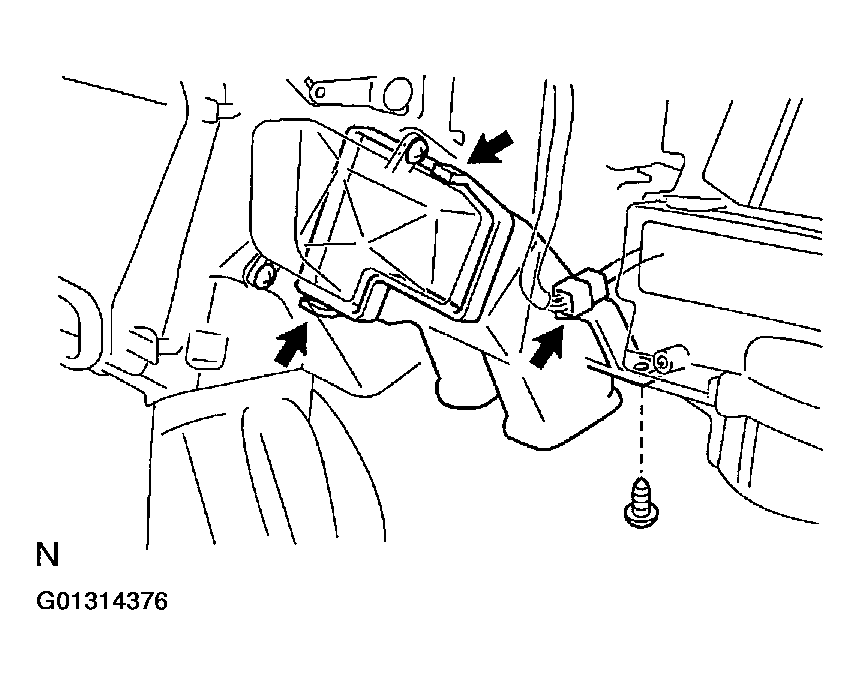

Fig 1: Removing Air Duct Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WIRE HARNESS
1. Disconnect the connector and connector clamp.

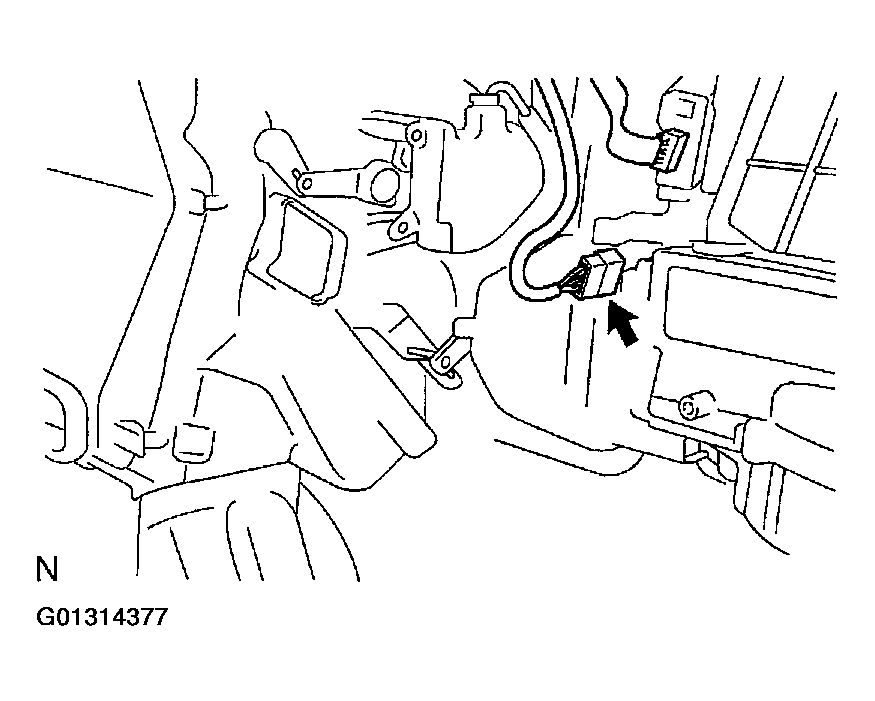

  Fig 2: Disconnecting Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the wire harness clamp and disconnect the connector.

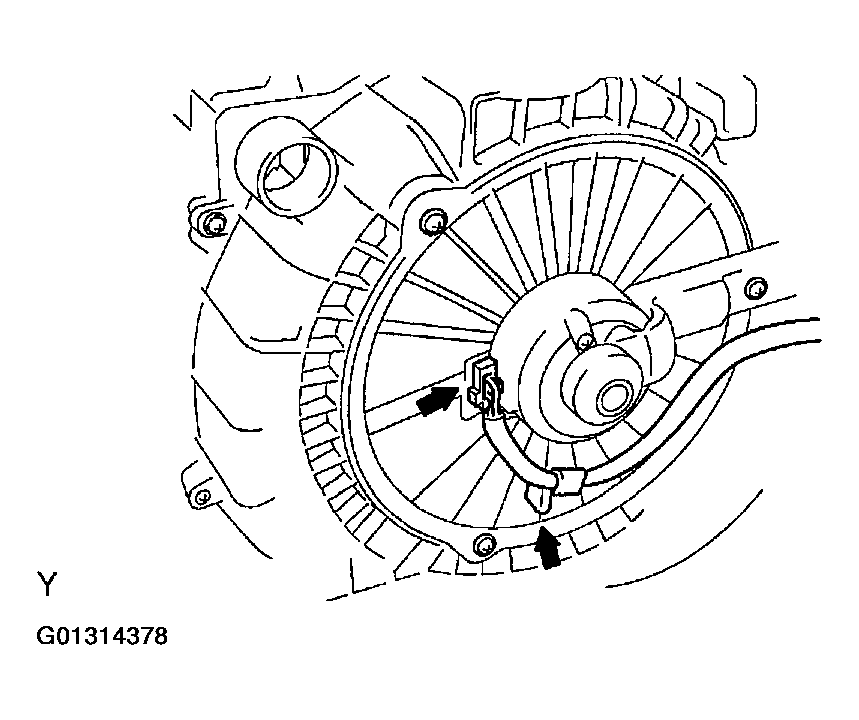

  Fig 3: Removing Wire Harness Clamp And Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER UNIT
1. Remove the 2 bolts and bracket.
2. Remove the bolt, screw and nut.
3. Release the claw and remove the blower unit.

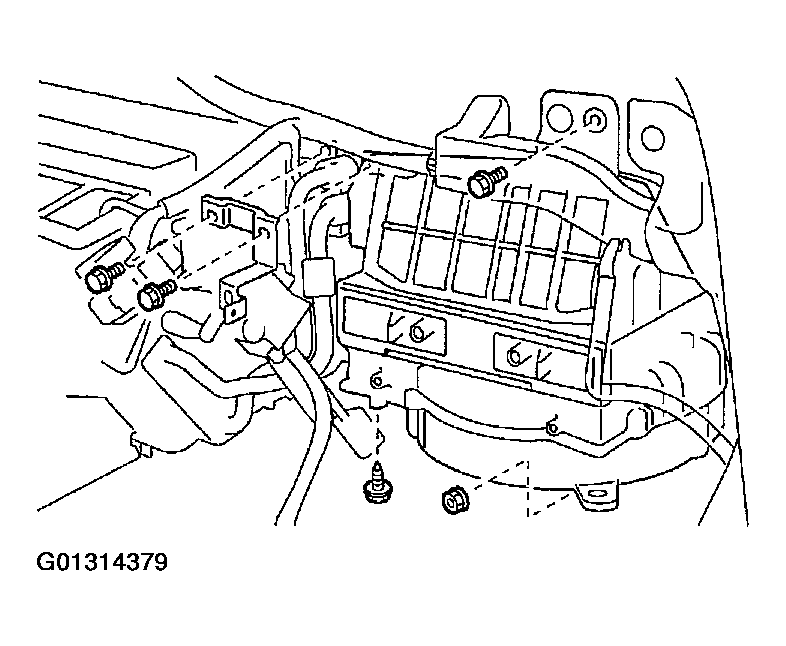

Fig 4: Removing Blower Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
