Condenser Fan: Components

WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

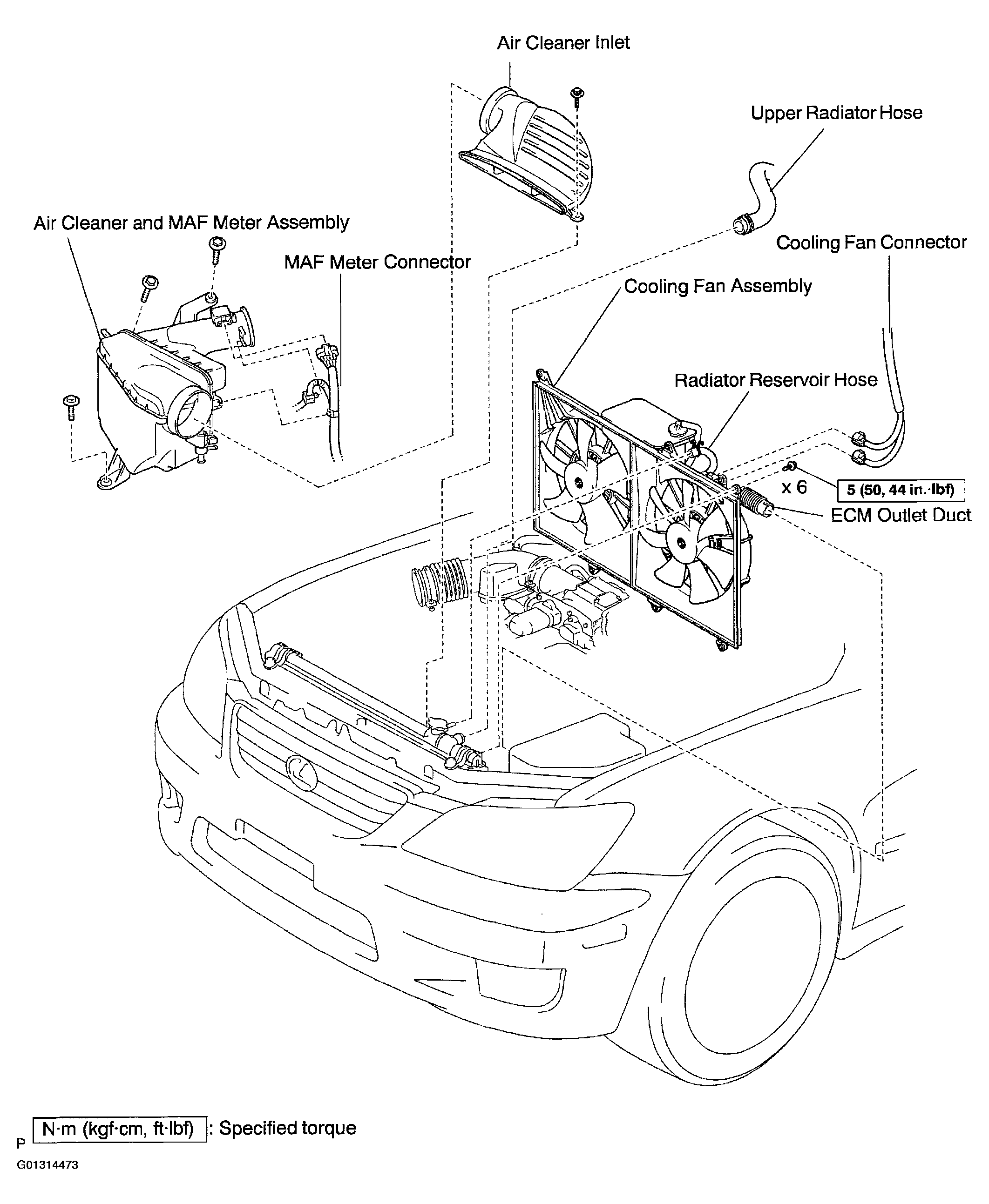

Fig 1: Exploded View Of Condenser Fan Components (1 Of 2)
G01314473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

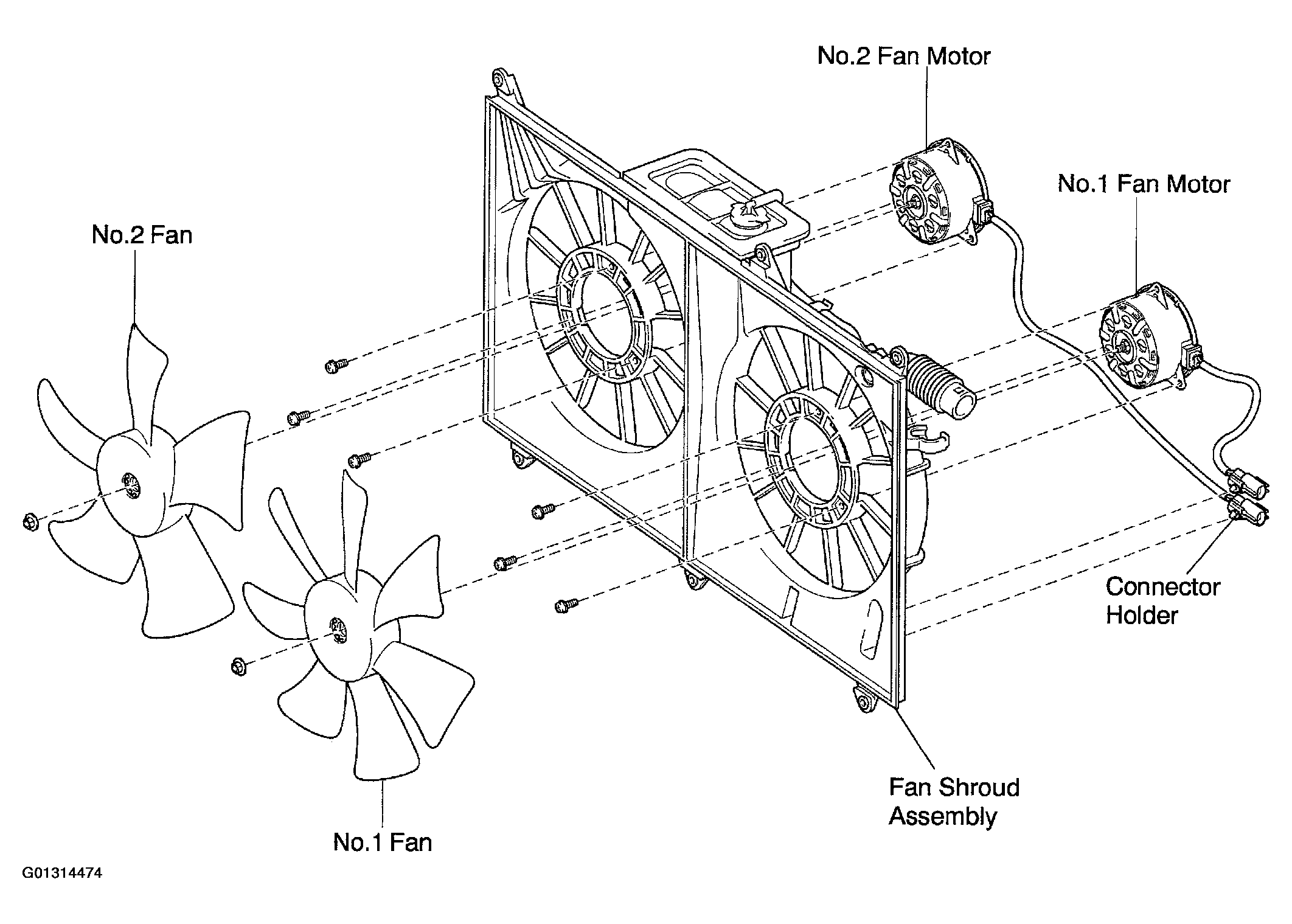

Fig 2: Exploded View Of Condenser Fan Components (2 Of 2)
G01314474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
