Condenser Fan: Installation
WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL COOLING FAN

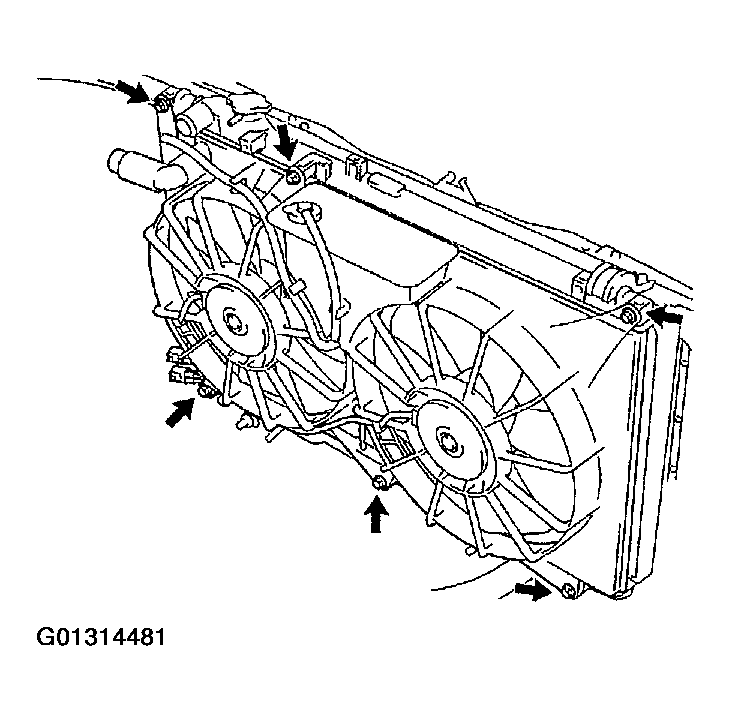

- Install the cooling fan with the 6 bolts.
Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)
- Connect the upper radiator hose to the radiator.
- Connect the ECM outlet duct to the ECM box.
- Connect the wire for cooling fan to clamp on the cooling fan.
- Connect the 2 cooling fan connectors.
- Connect the radiator reservoir hose to the radiator.
- Install the cooling fan with the 6 bolts.
- INSTALL AIR CLEANER AND MAF METER ASSEMBLY
- INSTALL AIR CLEANER INLET
- FILL WITH ENGINE COOLANT
- START ENGINE AND CHECK FOR COOLANT LEAKS
