Section 532 (Air Conditioning): Condenser: Removal
WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:
At the time of installation, please refer to the following item. Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount: 600 +/- 50 g (21.16 +/- 1.76 oz.)
- REMOVE AIR CLEANER DUCT AND AIR CLEANER ASSEMBLY
- REMOVE ECU OUTLET DUCT
- REMOVE 2 RADIATOR UPPER SUPPORTS
Remove the 2 bolts and upper supports.

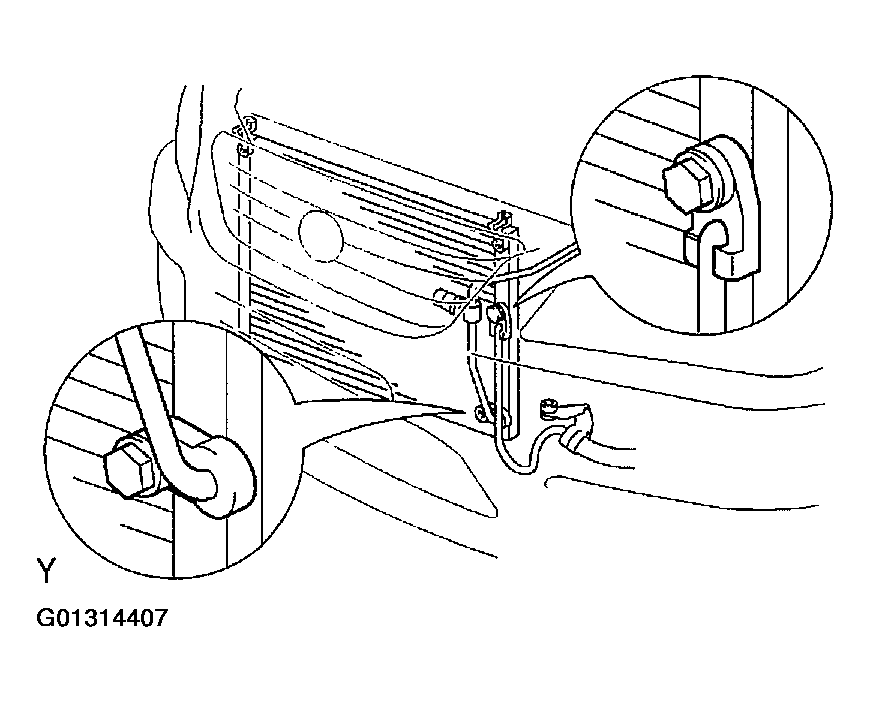

- DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
Remove the 2 bolts and disconnect the hose and tube.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.HINT:
At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install them to the hose and tube.

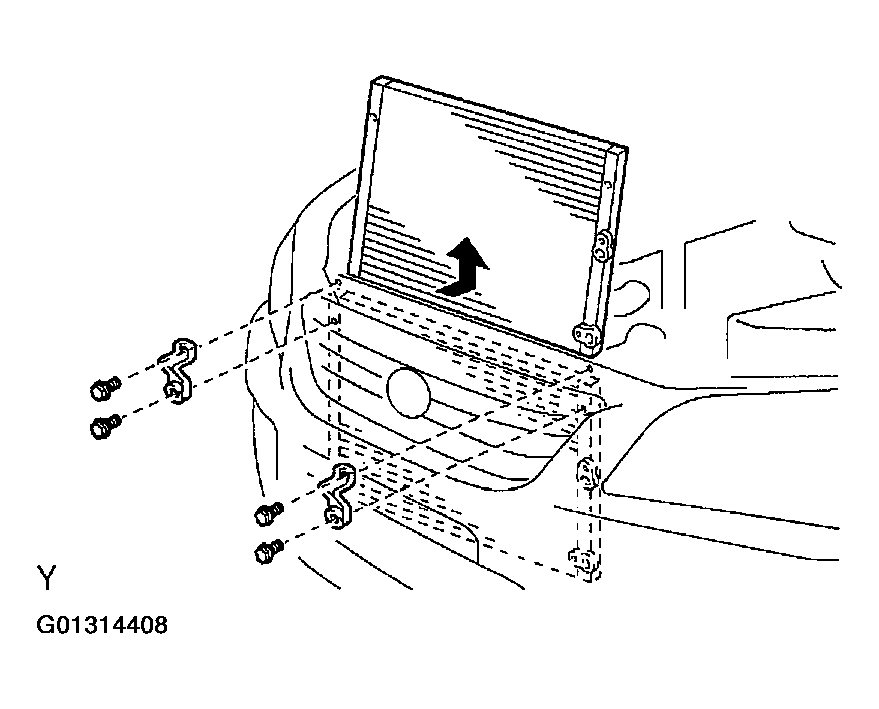

- REMOVE CONDENSER
- Remove the 4 bolts and 2 brackets.
- Push the radiator toward engine.
- Push the condenser toward radiator and pull it upward.
HINT:
At the time of installation, please refer to the following item.
If condenser is replaced, add compressor oil to the condenser.
Add 40 cc (1.4 fl. oz)
Compressor oil: ND - OIL 8 or equivalent
