Section 552 (Driver Door Control System - Diagnostics)
›
Terminals Of Ecu
Terminals Of Ecu
WARNING:
This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

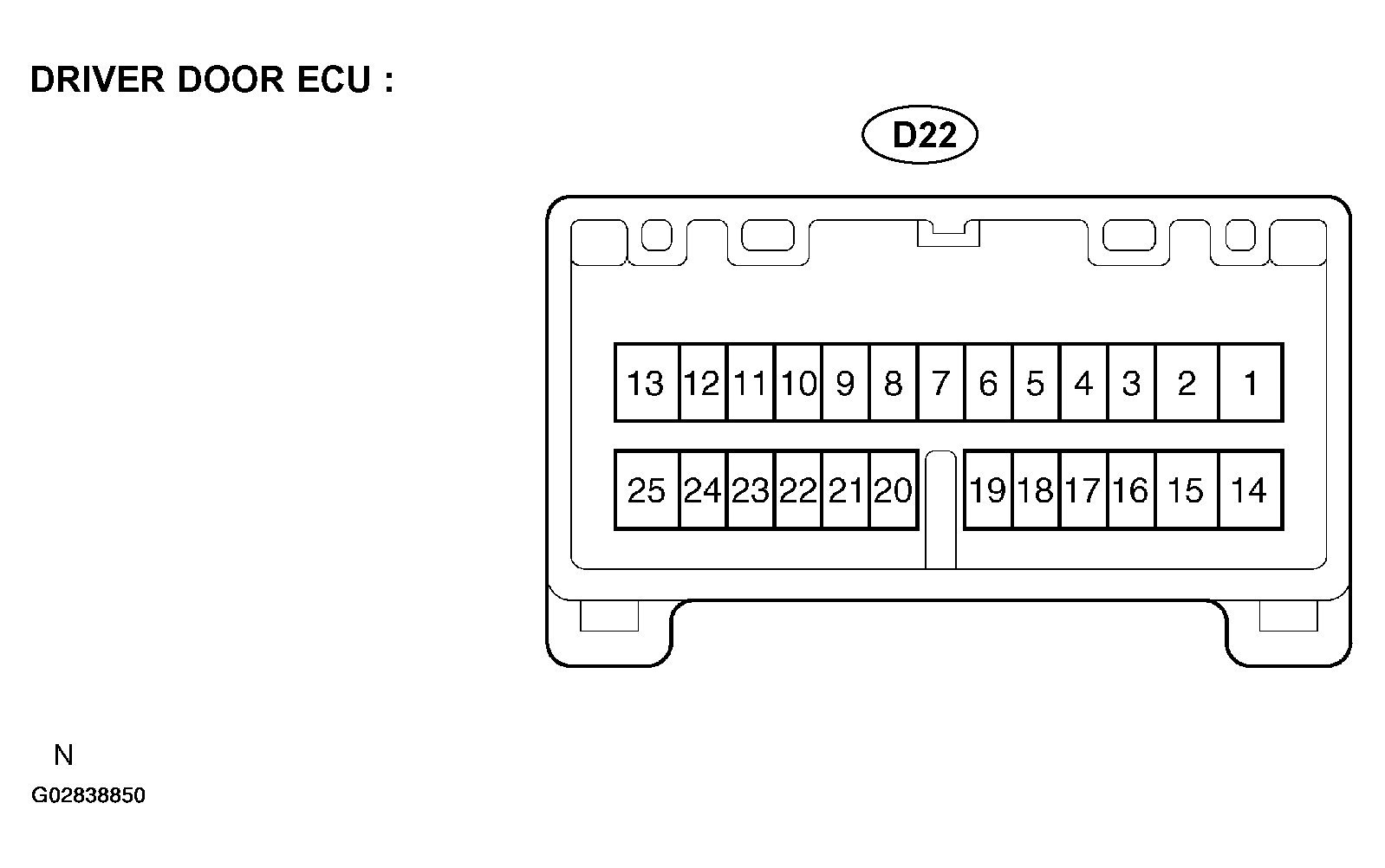

Fig 1: Identifying Terminals Of ECU - Driver Door ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

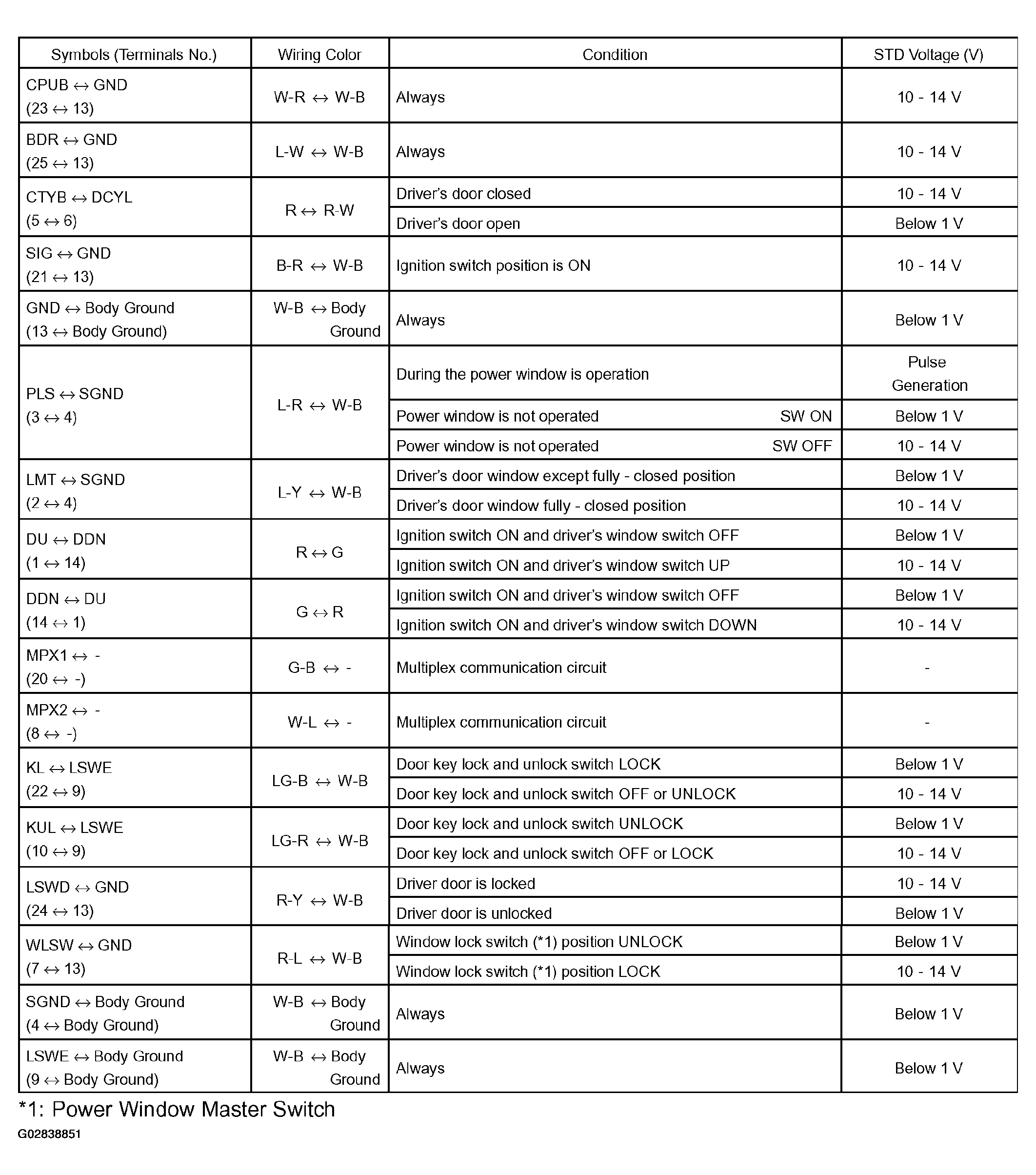

Fig 2: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
