Section 568 (Tilt Steering Column): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

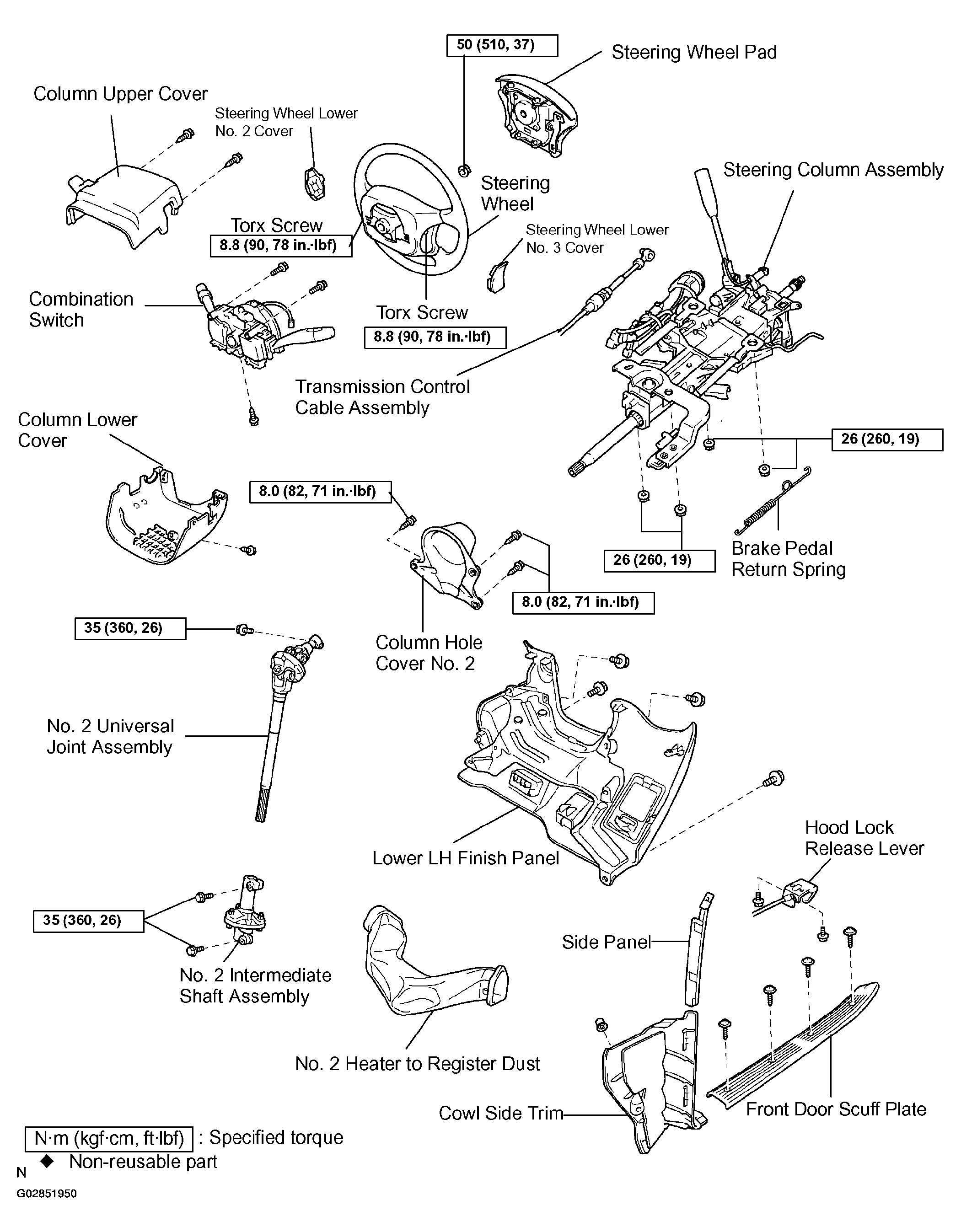

Fig 1: Locating Tilt Steering Column Components (1 Of 2)
G02851950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

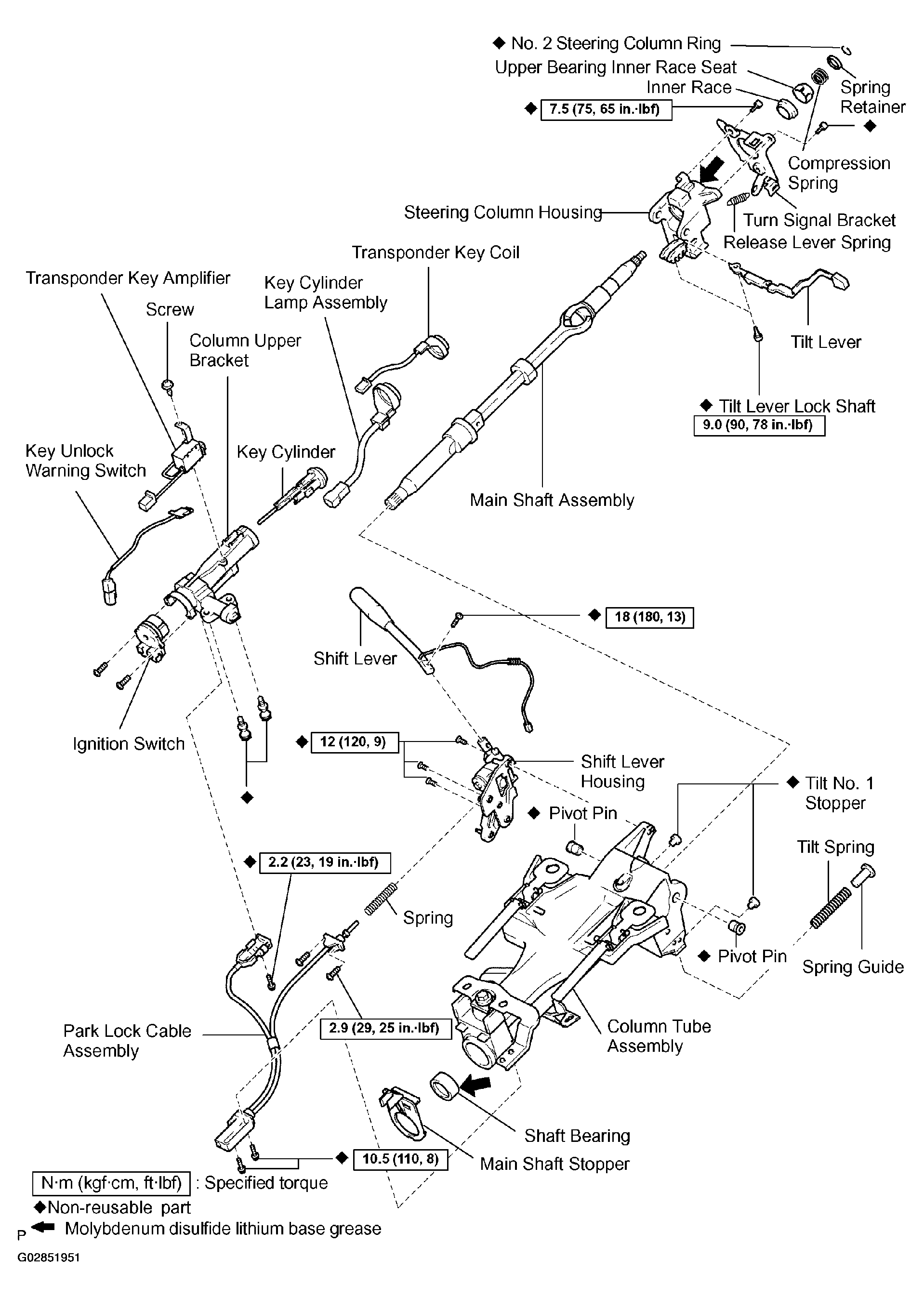

Fig 2: Locating Tilt Steering Column Components (2 Of 2)
G02851951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
