Inspection Procedure

WARNING: This page is about a different car, the 2002 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. USE LEXUS HAND-HELD TESTER
    1. YES: Go to next step
    2. NO: Go to step   3
  2. DO ACTIVE TEST OF LEXUS HAND-HELD TESTER
    1. ACTIVE TEST
      1. Make a judgement of good or bad and find out a malfunctioning part by the active test.

    Standard:

    LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)

    TESTER DISPLAY

    Item Operation
    Rr DEF OFF/ON
    1. OK: REPLACE LUGGAGE ROOM J/B, IF DEFOGGER DOES NOT OPERATE EVEN THOUGH A/C IS REPLACED
    2. NG: Go to step 3
  3. CHECK REAR WINDOW DEFOGGER
    1. Check the continuity between terminals of the rear defogger connector.

    Standard: Continuity

    NOTE:
    • With LEXUS hand-held tester, proceed to "OK-A".
    • Without LEXUS hand-held tester, proceed to "OK-B".
    1. OK-A: Go to next step
    2. OK-B: Go to step   6
    3. NG: REPAIR REAR WINDOW DEFOGGER
  4. CHECK WIRE HARNESS (REAR WINDOW DEFOGGER - LUGGAGE ROOM J/B)
    1. Disconnect the rear window defogger and luggage room J/B connectors.
    2. Check the continuity between the terminal of the rear window defogger vehicle's side connector and terminal 3 of the luggage room J/B vehicle's side connector. (See TERMINALS OF ECU )

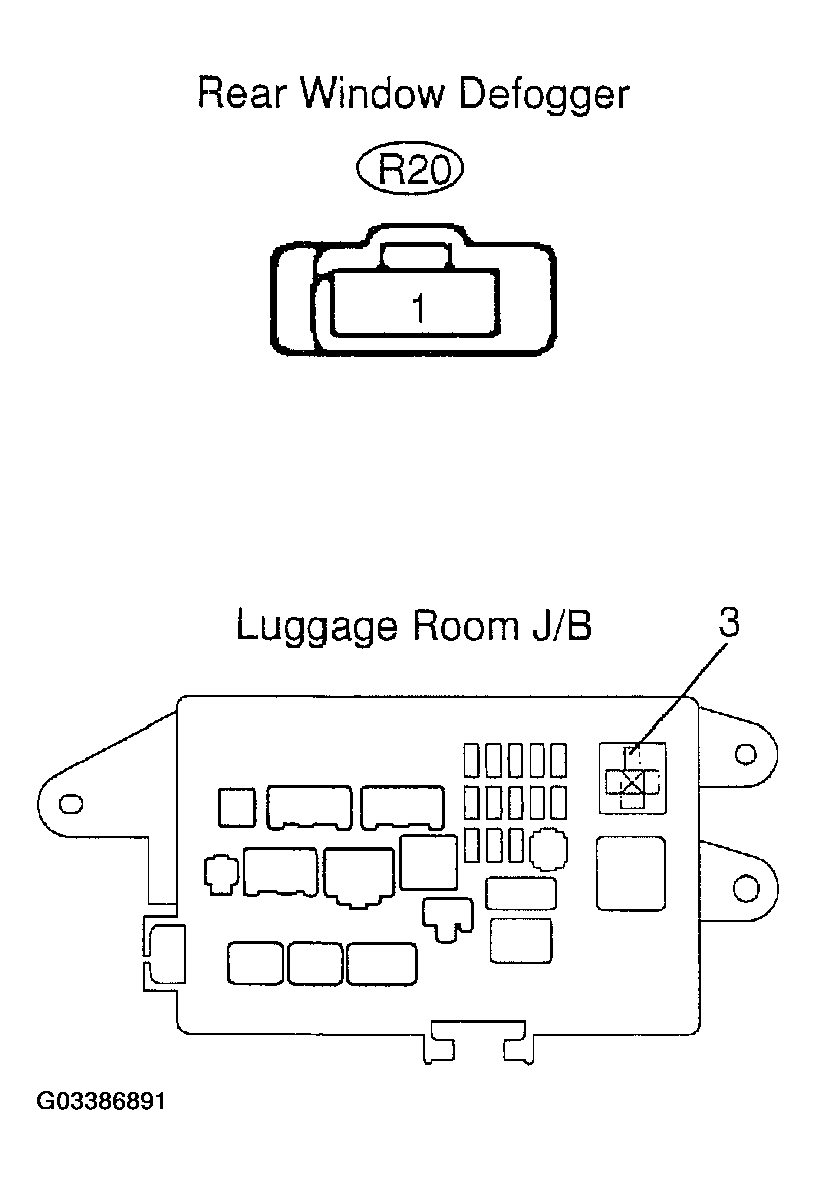

      Fig 1: Identifying Terminals To Check Wiring Harness
      G03386891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard: Continuity

    1. OK: GO TO NEXT STEP
    2. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
  5. CHECK WIRE HARNESS (REAR WINDOW DEFOGGER - BODY GROUND)
    1. Check the continuity between terminal R21 - 1 and the body ground.
      Fig 2: Identifying Rear Window Defogger Terminal R21
      G03386892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: CHECK AND REPLACE AIR CONDITIONER AMPLIFIER ASSY
    2. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
  6. INSPECT DEFOGGER RELAY
    1. Inspect the defogger relay continuity.
    Fig 3: Identifying Defogger Relay Terminals
    G03386893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    TESTER DISPLAY

    Condition Tester Connection Specified Condition
    Constant 1 -2 Continuity
    Apply B+ between terminals 1 and 2. 3 - 5 Continuity

    If the continuity is not as specified, replace the relay.

    1. OK: Go to next step
    2. NG: REPLACE DEFOGGER RELAY
  7. CHECK WIRE HARNESS (LUGGAGE ROOM J/B - BODY GROUND)
    1. Remove the defogger relay.
    2. Check the voltage between each terminal of the luggage room J/B.

      Standard:

      TESTER DISPLAY

      Terminal Tester Connection Specified Condition
      1 <=> Body Ground Ignition Switch ON 10 - 14 V
      5 <=> Body Ground Constant 10 - 14 V
    3. If terminal 1 malfunctions, proceed to "NG-A".
    4. If terminal 5 malfunctions, proceed to "NG-B".
      Fig 4: Identifying Luggage Room J/B Terminals
      G03386894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG-A: REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSY
    2. NG-B: Go to step 8
    3. OK: Go to next step
  8. CHECK FUSE(DEFOG FUSE)
    1. Remove the DEFOG fuse from the luggage room J/B.
    2. Check the continuity of the DEFOG fuse.
    1. OK: REPLACE LUGGAGE ROOM JUNCTION BLOCK ASSY
    2. NG: REPLACE FUSE(DEFOG FUSE)
