Section 695 (Lighting System - Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

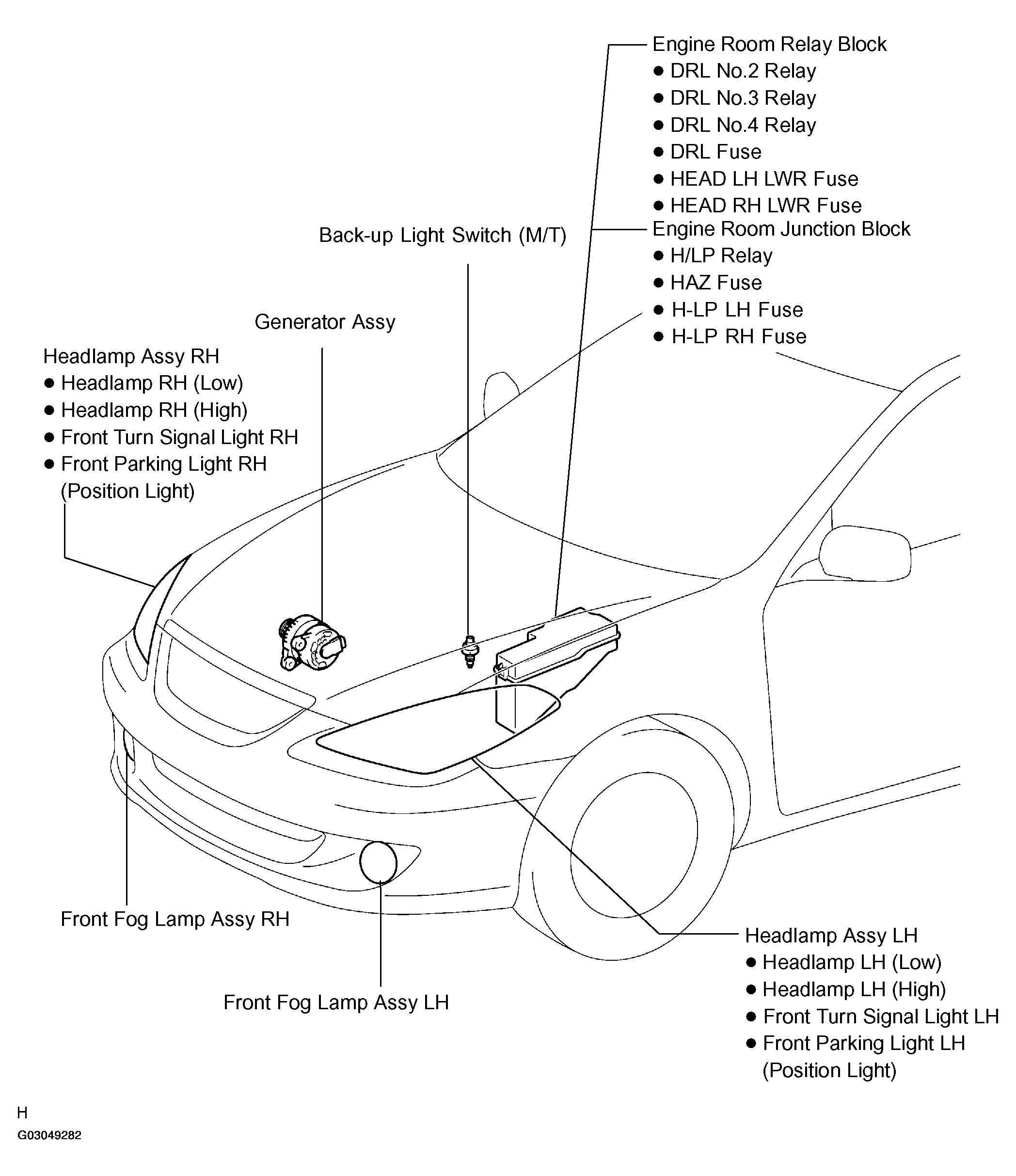

Fig 1: Locating Lighting System Components (1 Of 3)
G03049282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

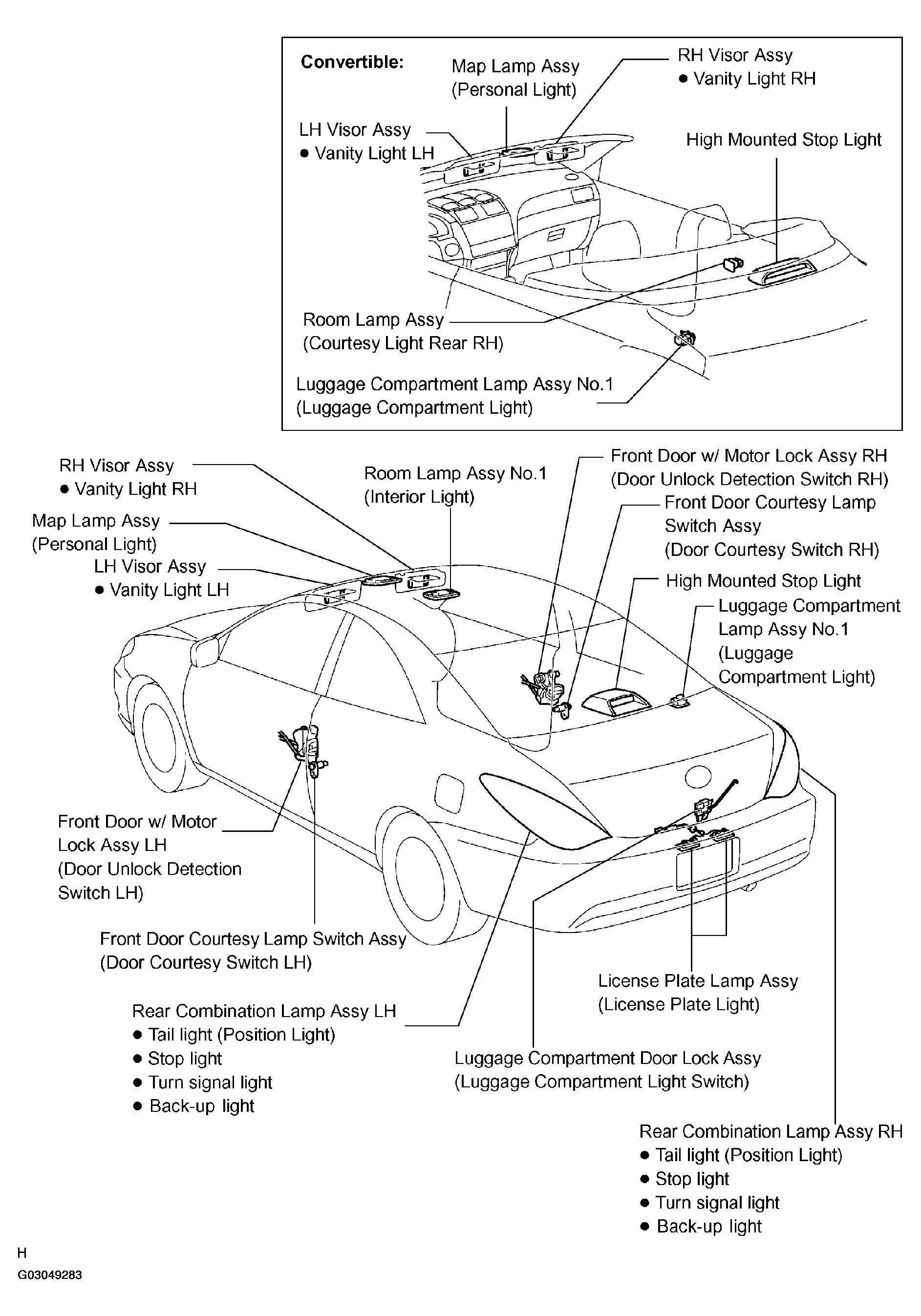

Fig 2: Locating Lighting System Components (2 Of 3)
G03049283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

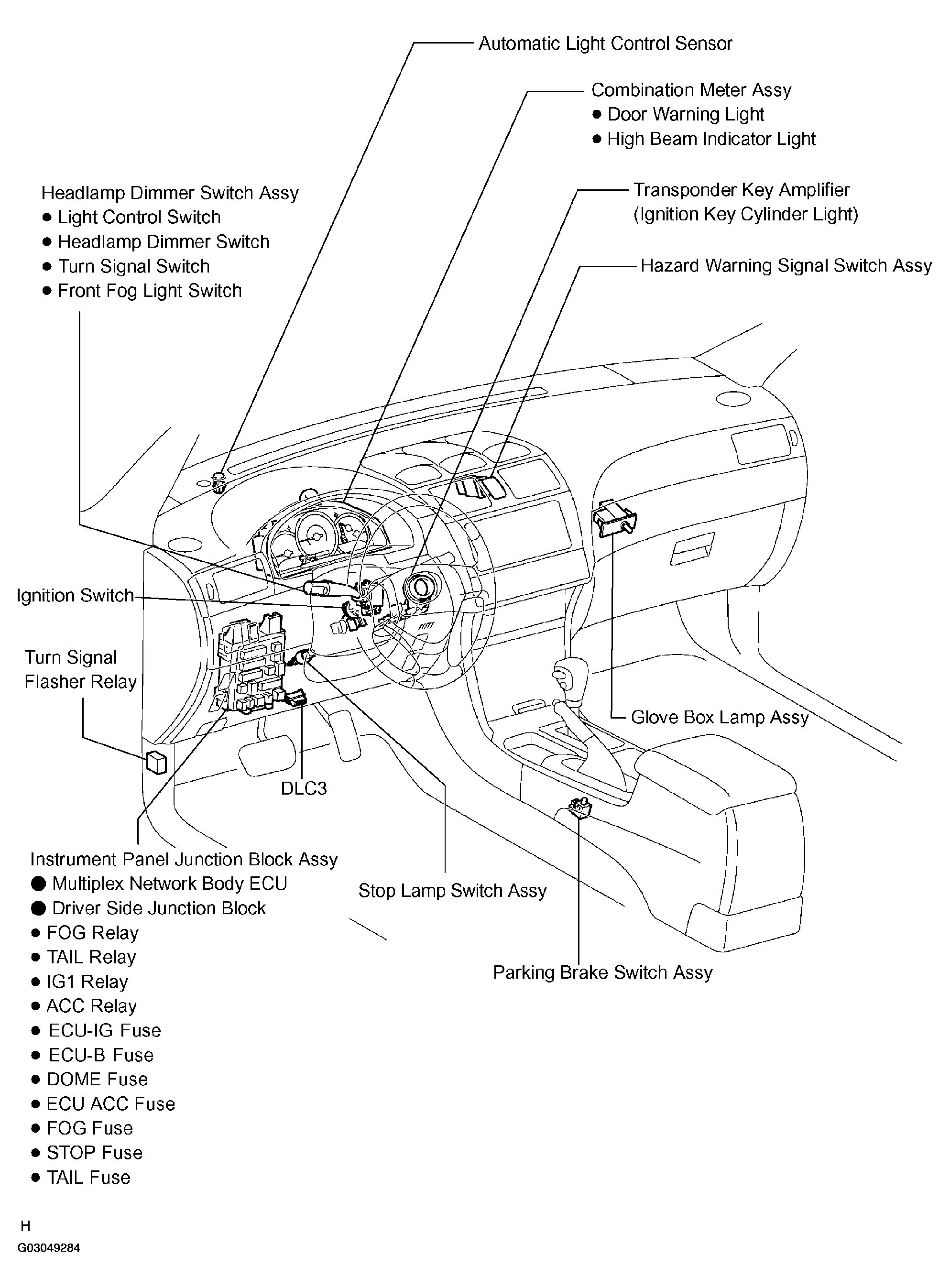

Fig 3: Locating Lighting System Components (3 Of 3)
G03049284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
