Section 701 (Wireless Door Lock Control System - Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

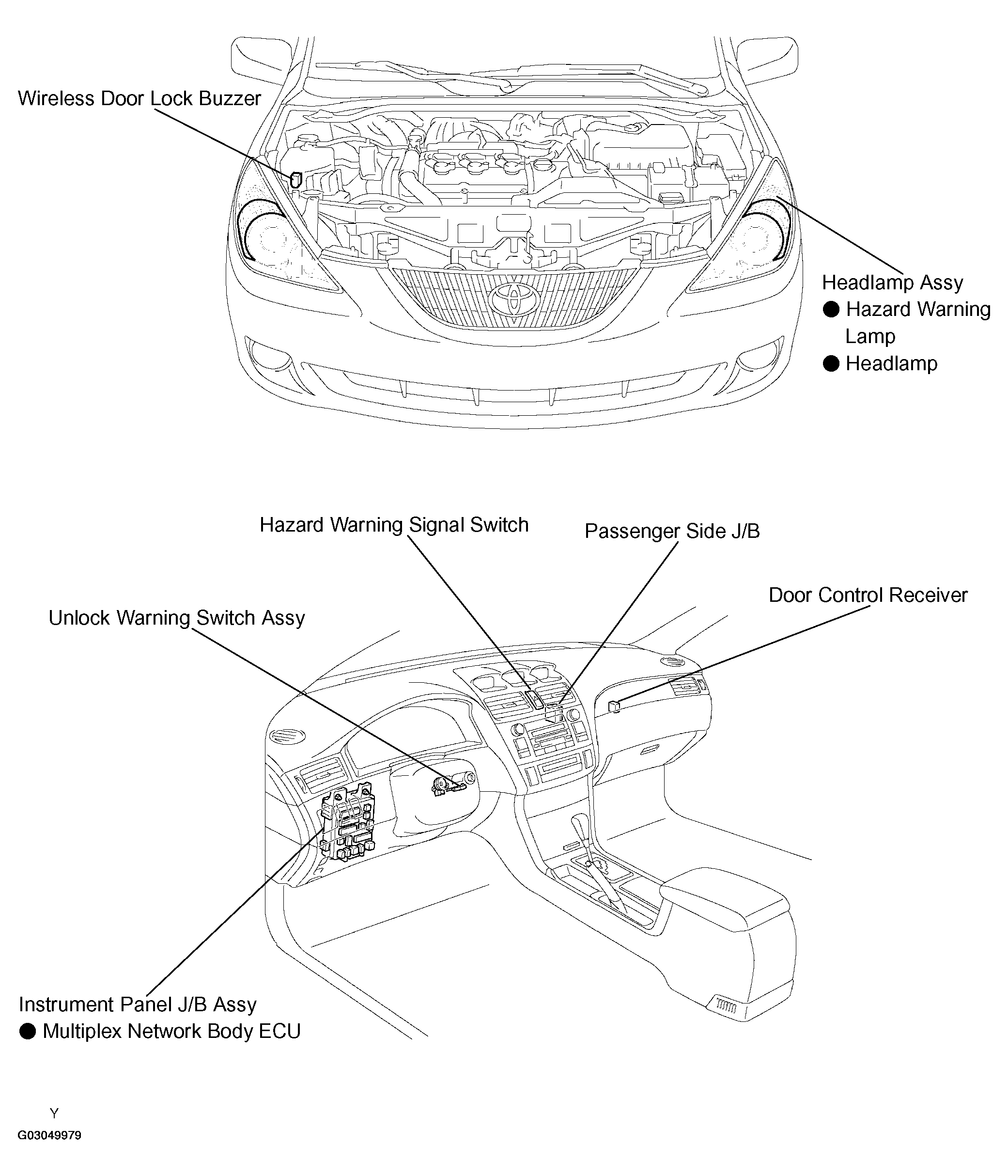

Fig 1: Locating Wireless Door Lock Control System (1 Of 2)
G03049979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

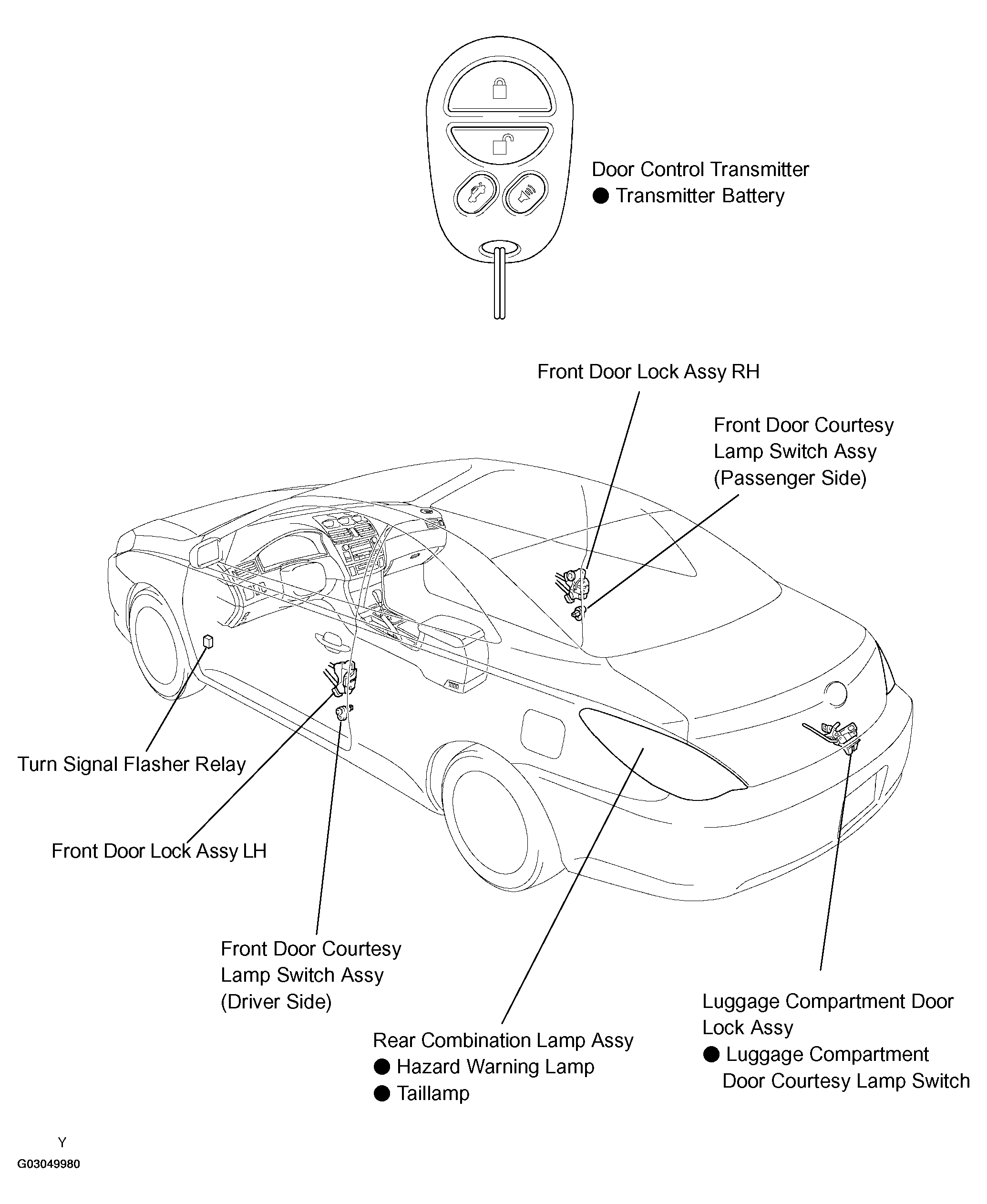

Fig 2: Locating Wireless Door Lock Control System (2 Of 2)
G03049980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
