Section 705 (Cruise Control System - Diagnostics): Location

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

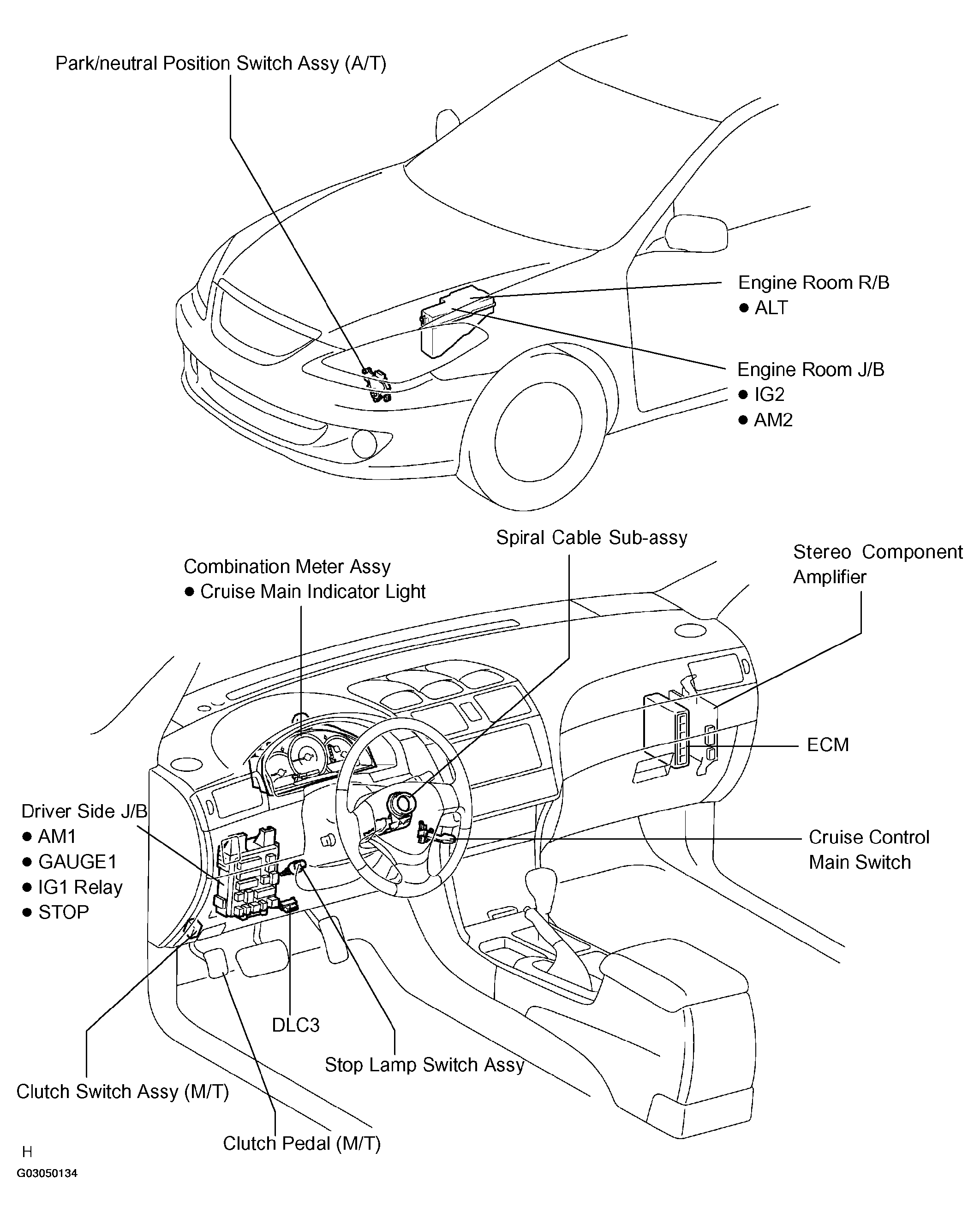

Fig 1: Locating Cruise Control System Components
G03050134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
