Section 775 (Cruise Control System - Diagnosis)
›
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
WARNING:
This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Troubleshoot in accordance with the procedure on the following page.

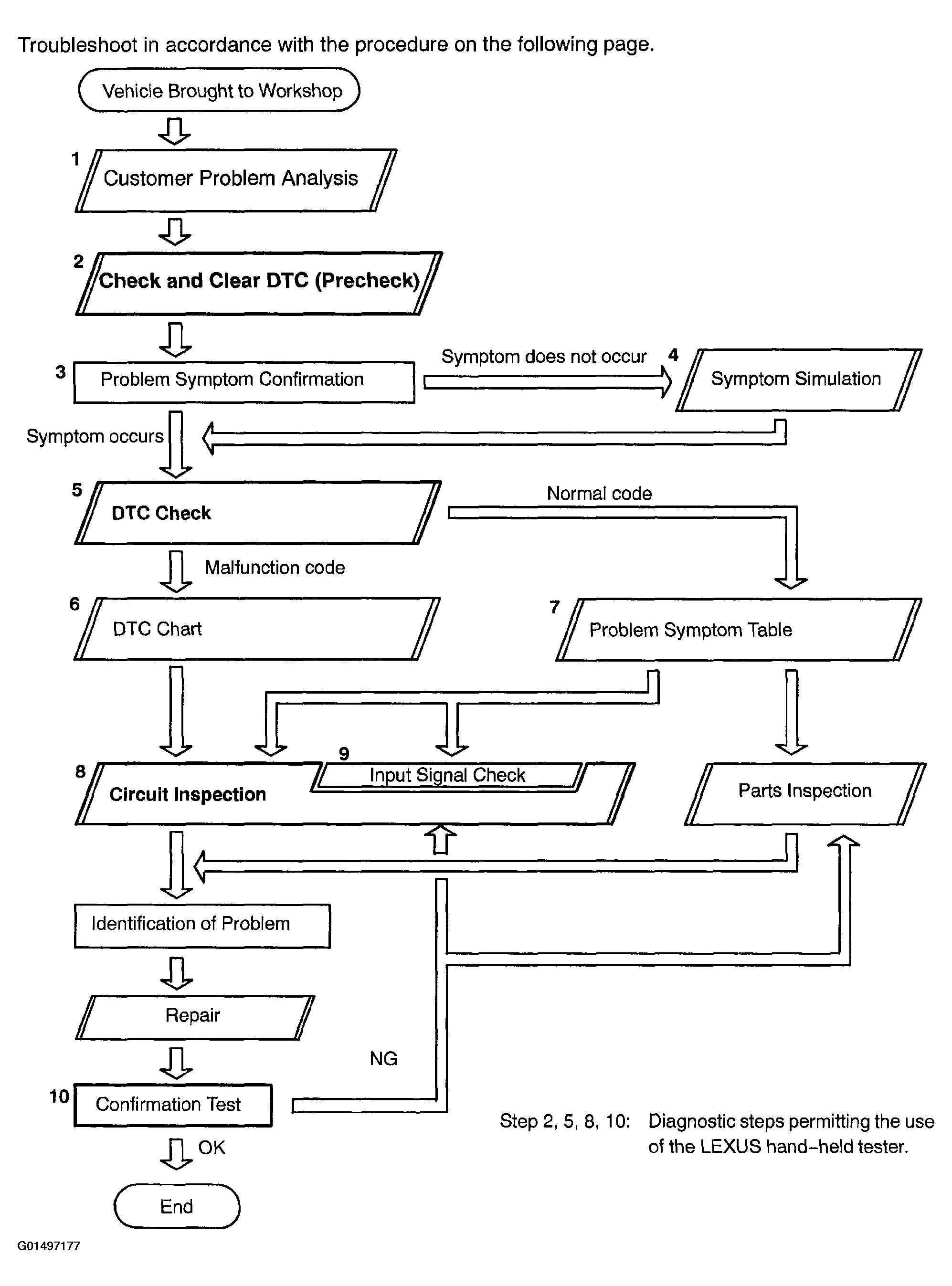

Fig 1: Cruise Control Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
