System Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

A rack and pinion type steering gear and engine revolution sensing type power steering are used on all models.

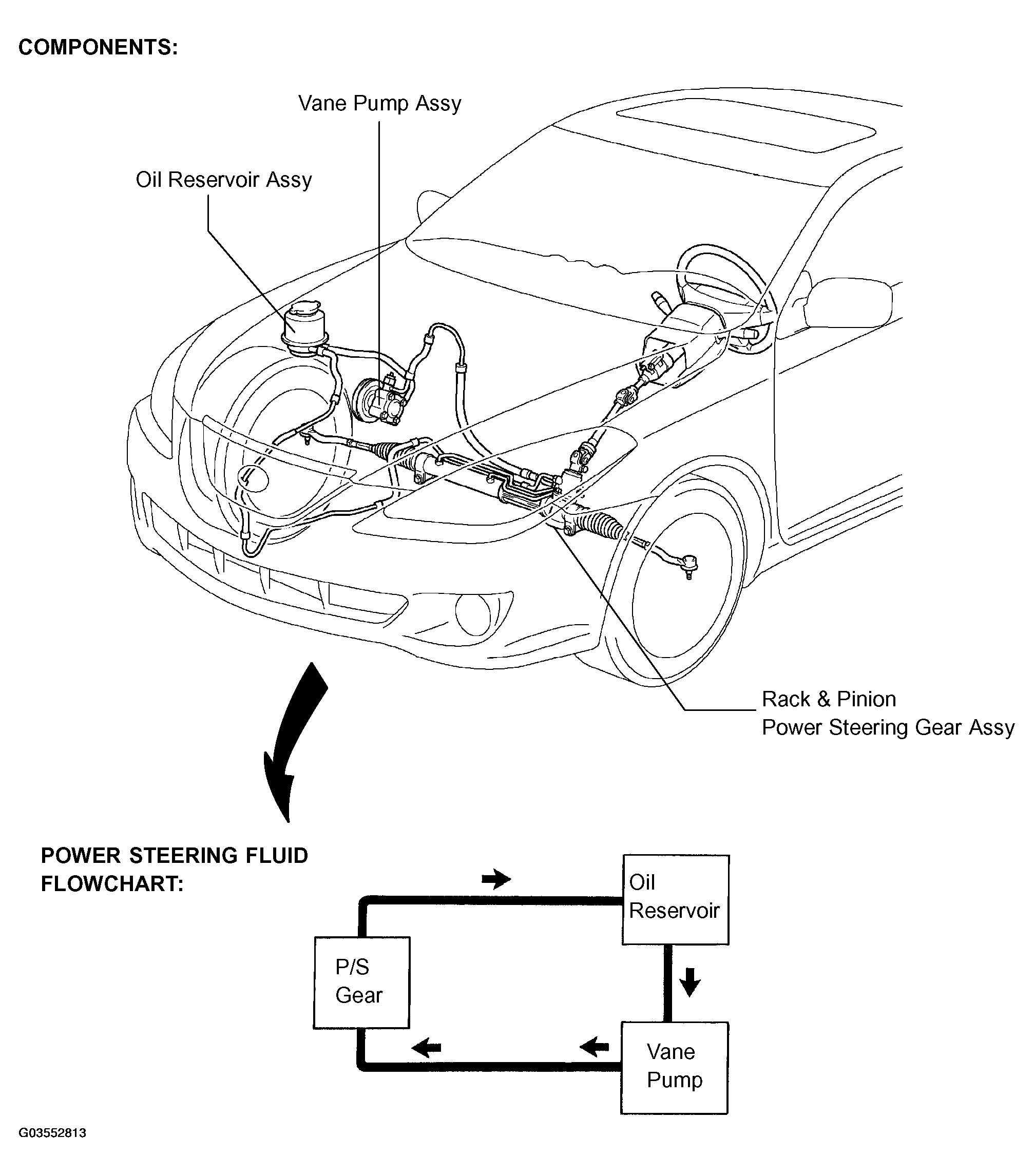

Fig 1: Power Steering System Description
G03552813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
