Fuel Lid Lock Control ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  2. REMOVE REAR FLOOR FINISH PLATE
    1. Using a screwdriver, disengage the 7 clips and remove the rear floor finish plate.
      Fig 1: Removing Rear Floor Finish Plate
      G03553560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSY
    1. Remove the bolt and tray.
  4. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH
    1. Using a clip remover, remove the 2 clips and trim.
  5. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT   )
    1. Using a screwdriver, disengage the 3 clips and remove the plate.

      HINT:

      Tape the screwdriver tip before use.

  6. REMOVE COWL SIDE TRIM SUB-ASSY LH
    1. Using a screwdriver, disengage the 3 clips and remove the trim.

      HINT:

      Tape the screwdriver tip before use.

  7. REMOVE REAR SEAT ASSY (SEE  OVERHAUL  )
  8. REMOVE QUARTER TRIM PANEL LOWER LH (See  REPLACEMENT  )
  9. REMOVE LUGGAGE DOOR LOCK OPEN BEZEL
    1. Pull up at the rear edge of the bezel to disengage the clip.
    2. Slide clip bezel rearward to disengage the claw.
    3. The clip mentioned in step ( a) will remain in the opener sub-assy. Remove the clip and re-attach it to the bezel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 2: Removing Luggage Door Lock Open Bezel
      G03553561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSY
    1. Remove the 2 bolts and lever.
    2. Disconnect the 2 cables.
      Fig 3: Removing Luggage Door Lock Open Lever Sub-Assy
      G03553562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LUGGAGE OPENER CANCEL CYLINDER ASSY
    1. Remove the bolt and the cylinder.
      Fig 4: Removing Luggage Opener Cancel Cylinder Assy
      G03553563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSY
    1. Remove the cable, as shown in Fig 5 .

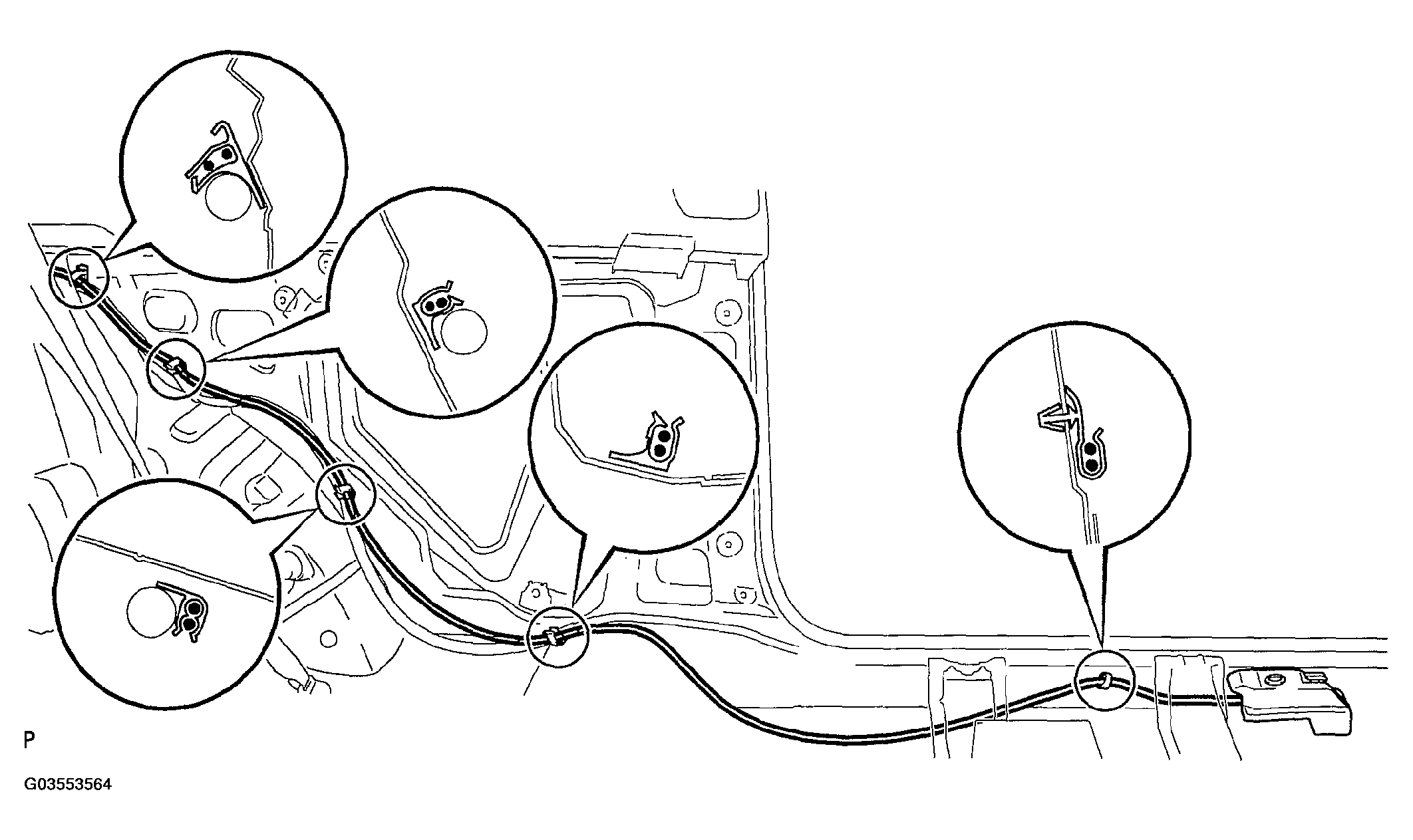

      Fig 5: Removing Fuel Lid Lock Control Cable Sub-Assy
      G03553564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the cable.

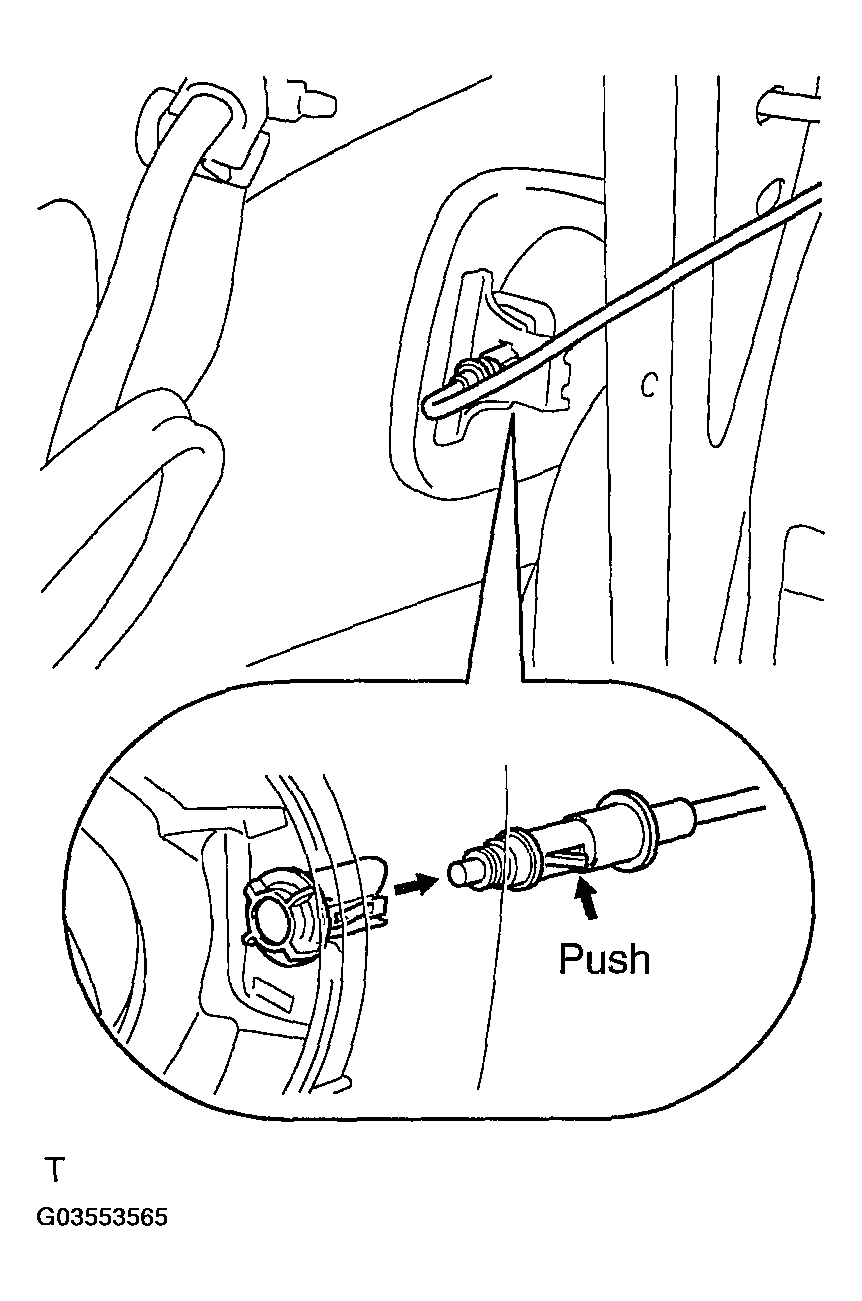

      Fig 6: Disengaging Claw & Removing Cable
      G03553565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the fuel filler opening lock retainer, as shown in Fig 7 .

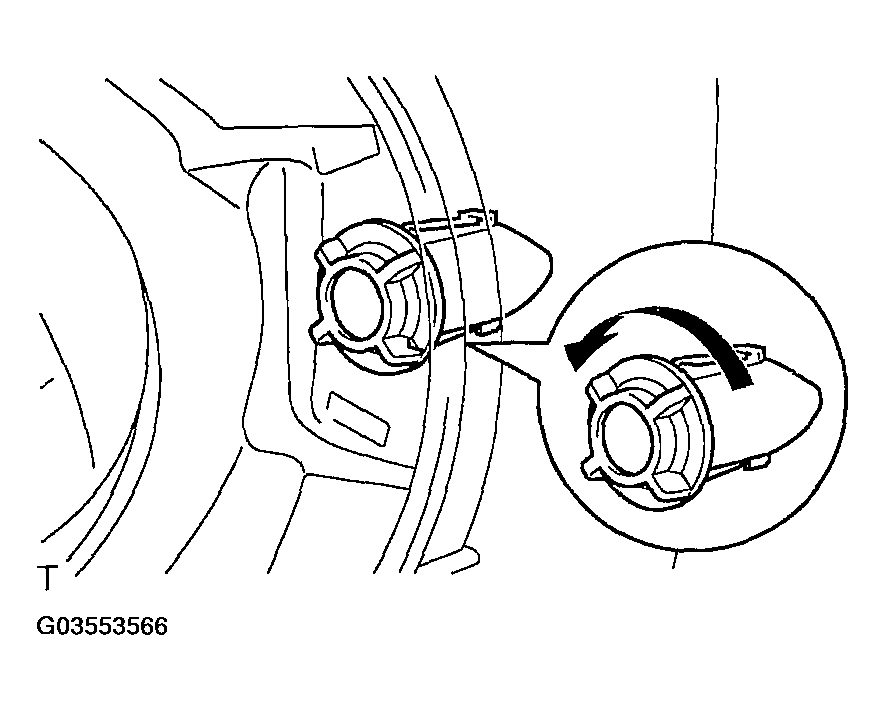

      Fig 7: Removing Fuel Filler Opening Lock Retainer
      G03553566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSY
    1. Install the fuel filler opening lock retainer, as shown in Fig 8 .

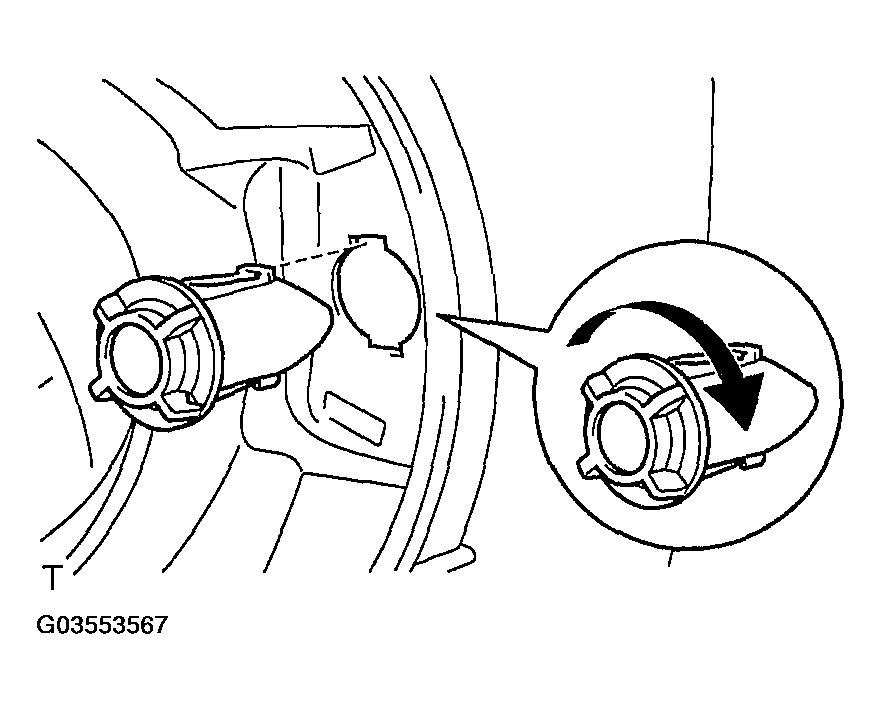

      Fig 8: Installing Fuel Filler Opening Lock Retainer
      G03553567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cable as shown in Fig 9 .
      Fig 9: Installing Cable

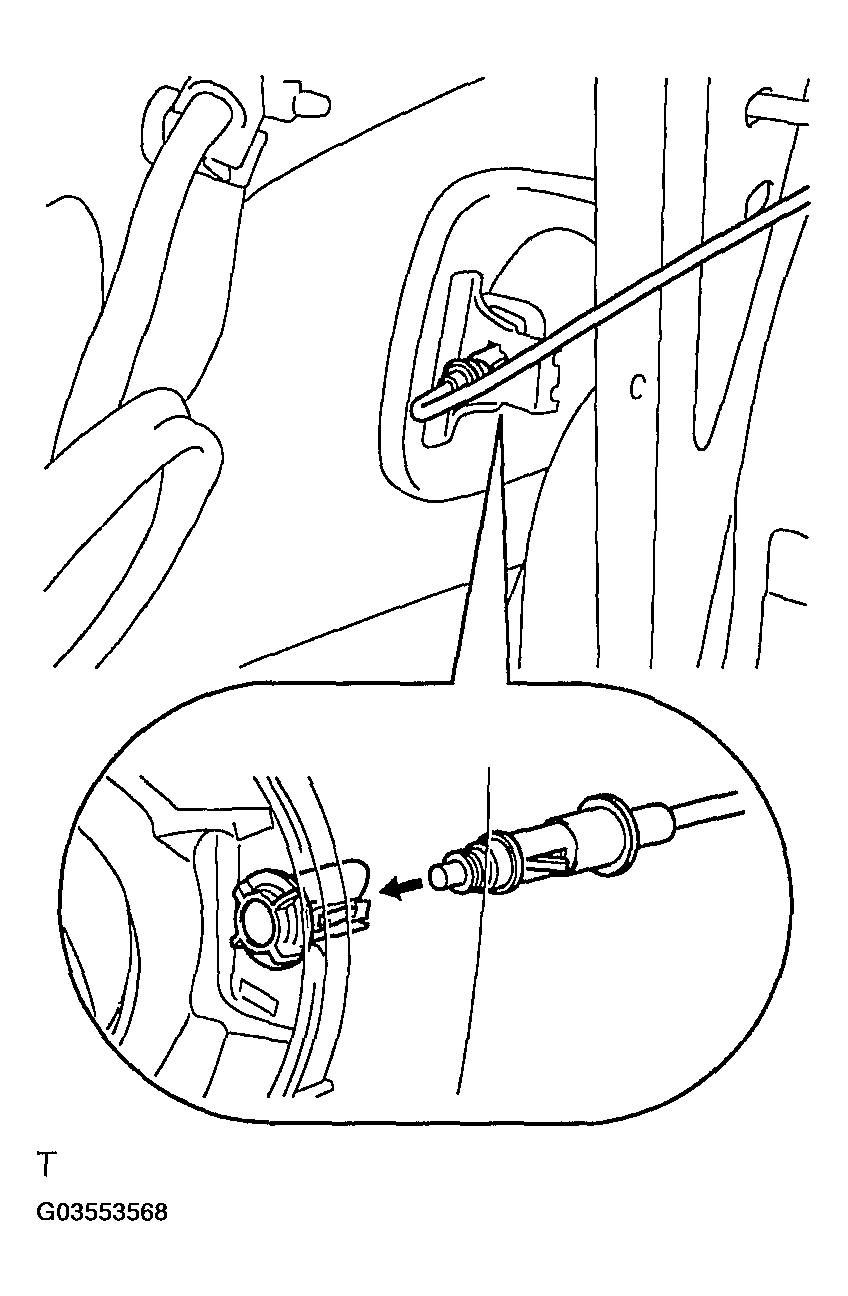

      G03553568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the cable as shown in Fig 10 .

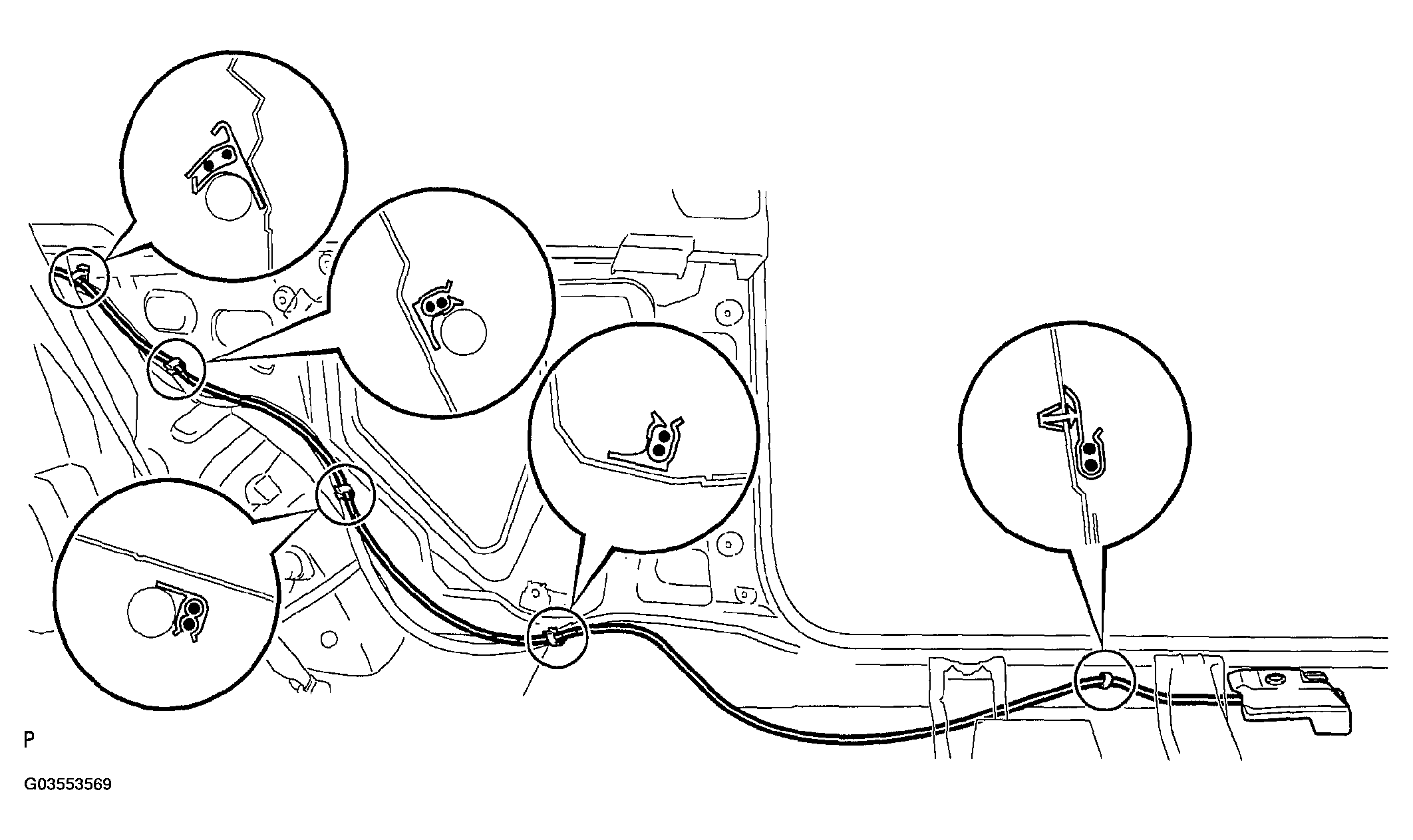

      Fig 10: Installing Fuel Lid Lock Control Cable Sub-Assy
      G03553569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL LUGGAGE OPENER CANCEL CYLINDER ASSY
    1. Install the cylinder with the bolt.

      Torque:  5.5 N.m (56 kgf.cm, 49 in.lbf)

      Fig 11: Installing Luggage Opener Cancel Cylinder Assy
      G03553570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSY
    1. Install the lever with the 2 bolts.

      Torque:  5.5 N.m (56 kgf.cm, 49 in.lbf)

      Fig 12: Installing Luggage Door Lock Open Lever Sub-Assy
      G03553571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
