Front Wiper Module: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cowl plenum grille (Refer to COWL PLENUM GRILLE ).

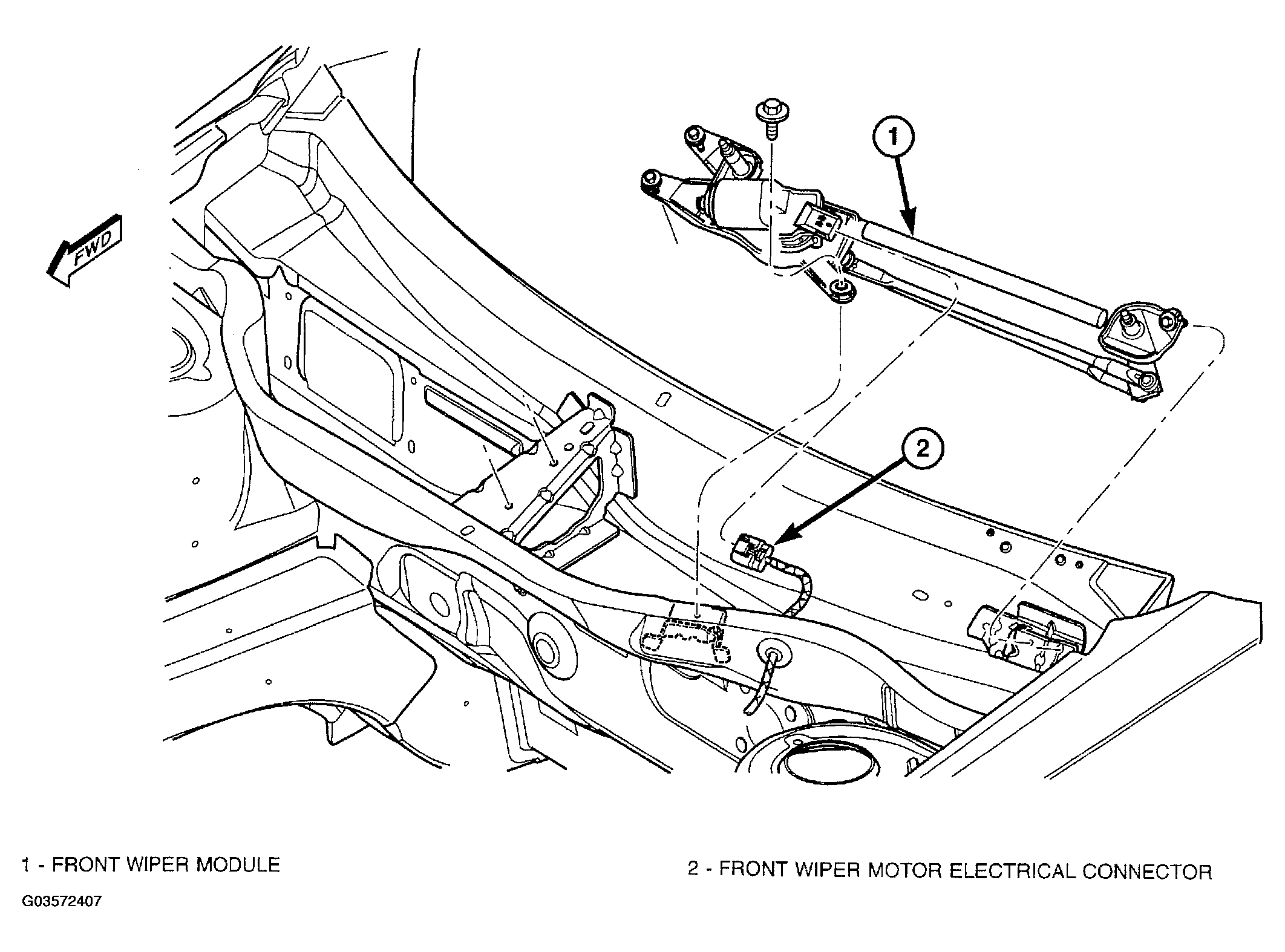

  3. Disconnect the wiper motor electrical connector (Figure).
  4. Remove the four retaining bolts to the wiper module (Figure).
  5. Remove wiper module from vehicle.
