Washer Fluid Level Switch: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure to use a new grommet when installing a new switch, or even reinstalling the old switch back into the reservoir.

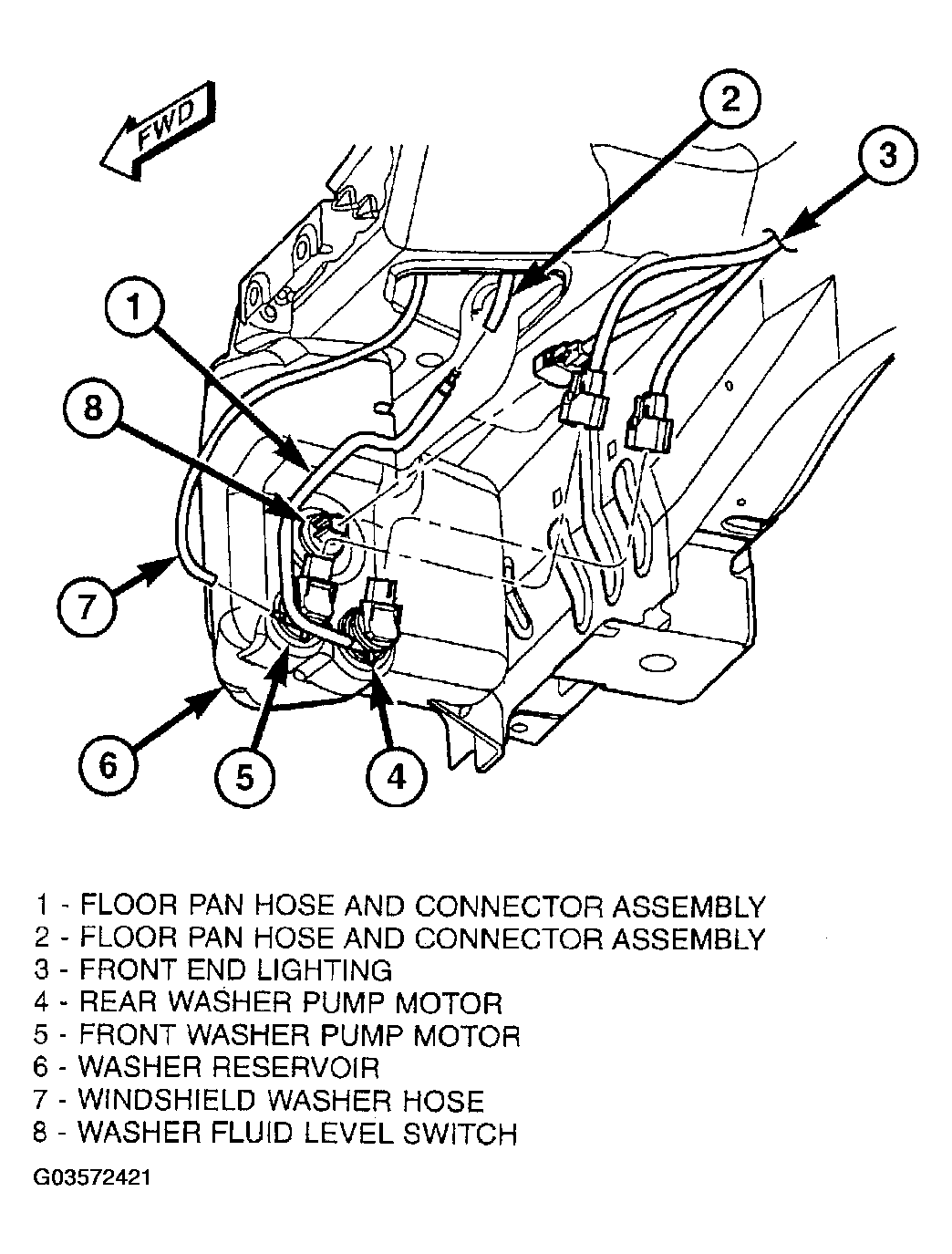

- With grommet installed, position the washer fluid level switch in grommet and firmly snap into place (Figure).
- Connect the washer fluid level switch electrical connector.
- Install inner splash shield.
- Lower vehicle from hoist.
- Connect the battery negative cable.
- Top off washer fluid reservoir.
- Close hood.
- Verify vehicle and system operation.
