Outside Handle: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove liftgate trim panel. (Refer to TRIM PANEL  ).
  2. Disconnect the exterior handle electrical connectors (Fig 1 ).

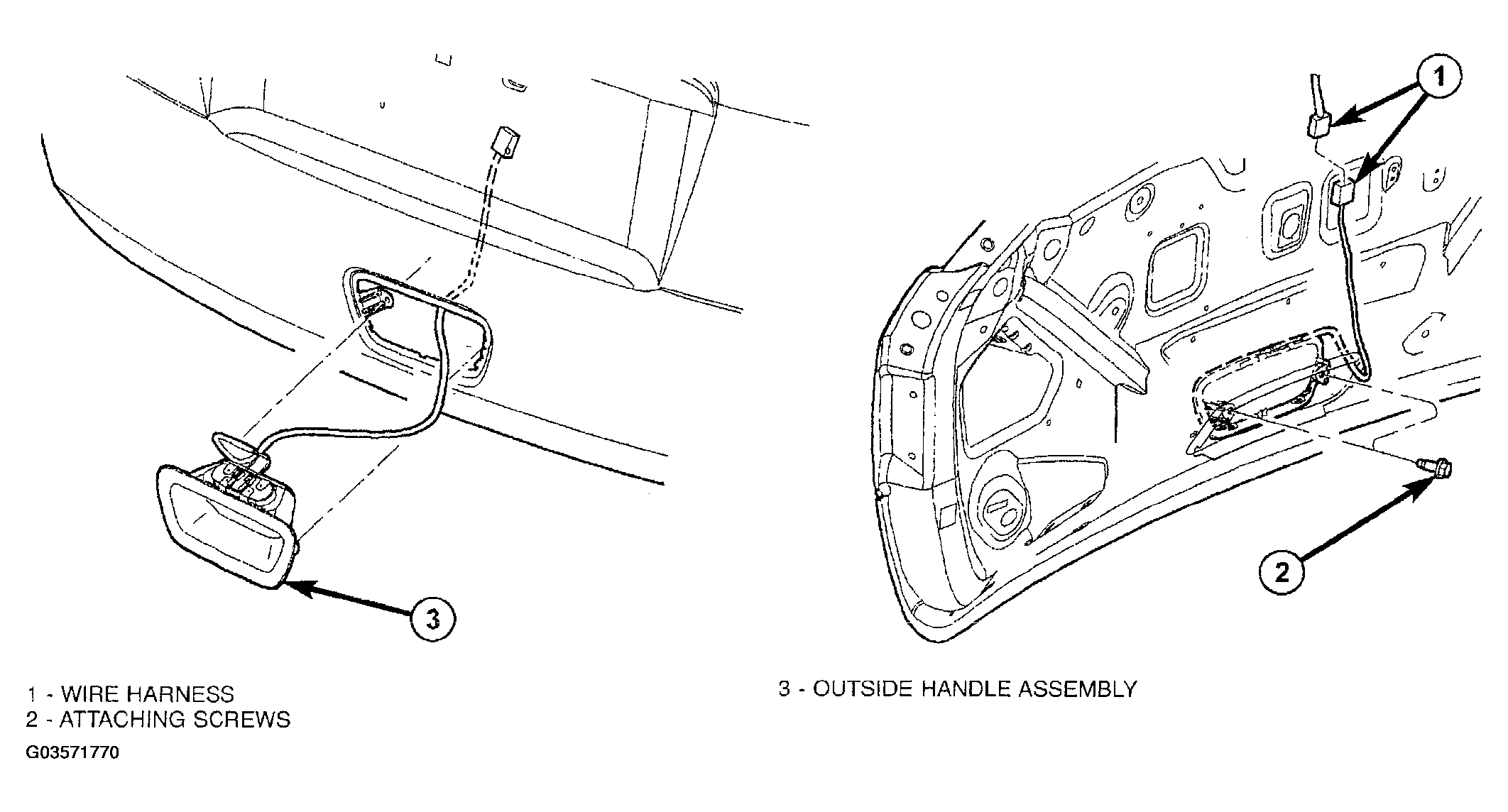

    3. Fig 1: Removing Outside Handle
    G03571770Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the two screws attaching liftgate handle to liftgate inner panel.
  4. Remove the exterior handle/license plate light assembly.
