Manual Transaxle ASSY (C60): Components
WARNING:
This page is about a different variant/trim than selected.

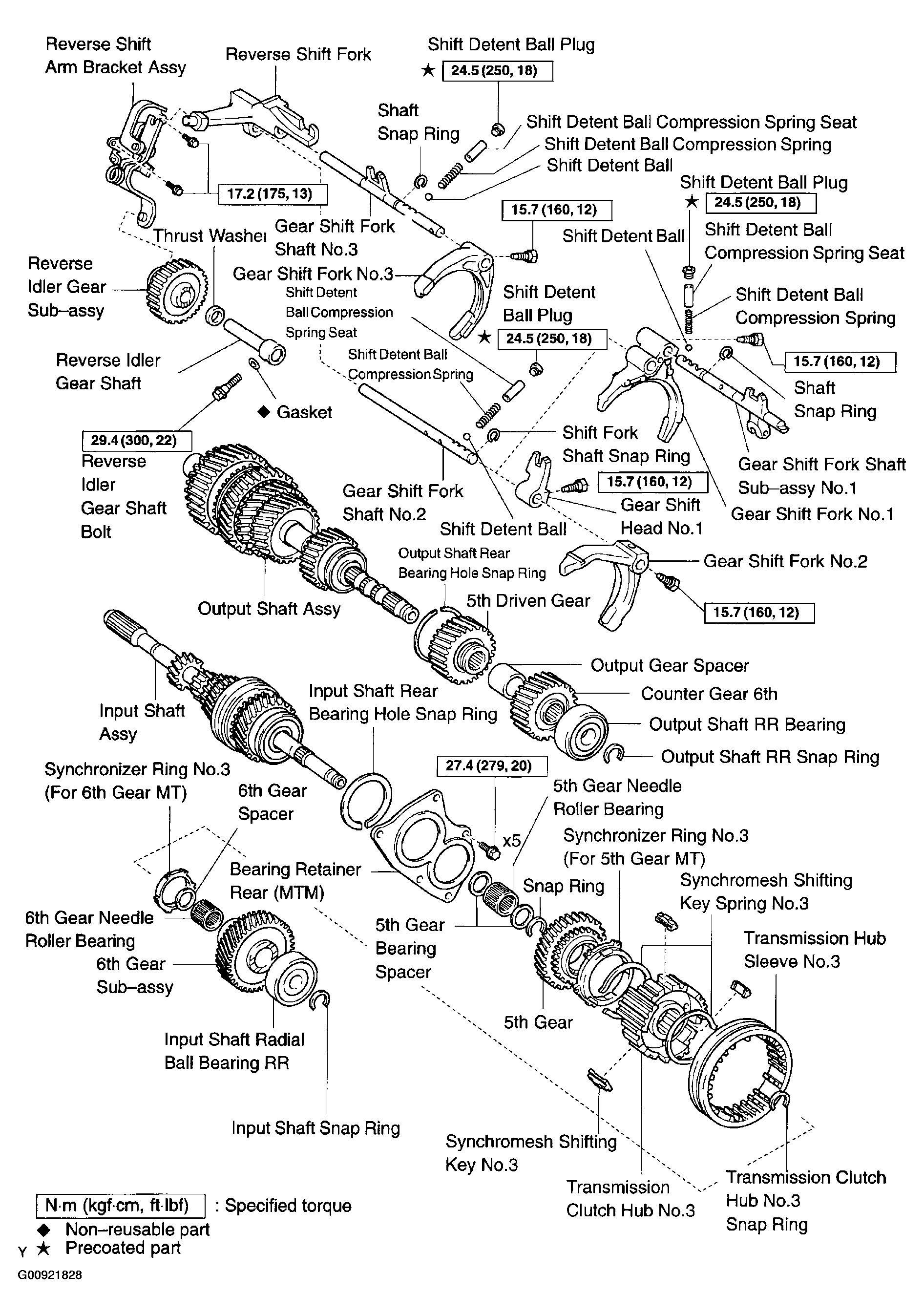

Fig 1: Exploded View Of Manual Transaxle Assembly Components (C60) (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

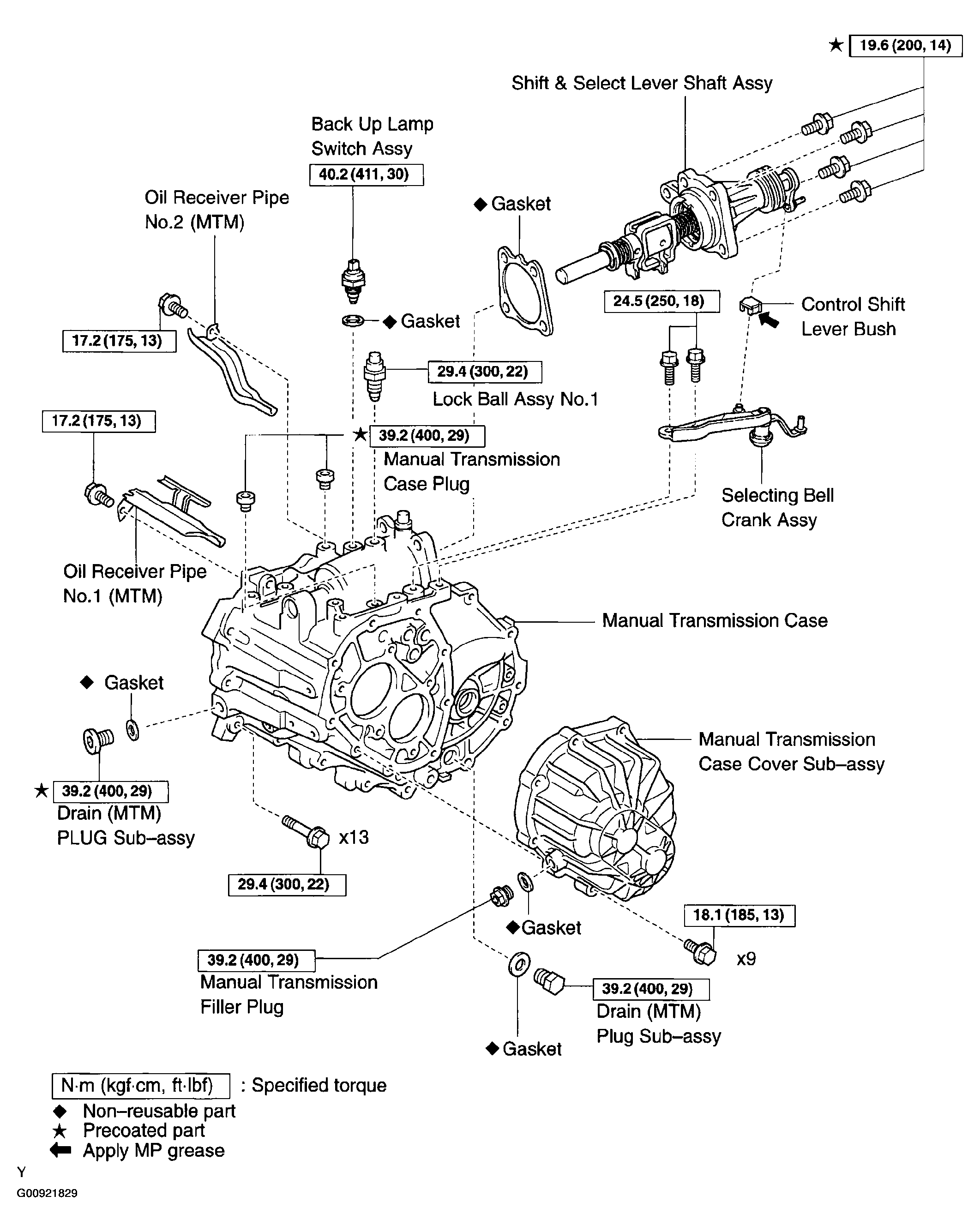

Fig 2: Exploded View Of Manual Transaxle Assembly Components (C60) (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

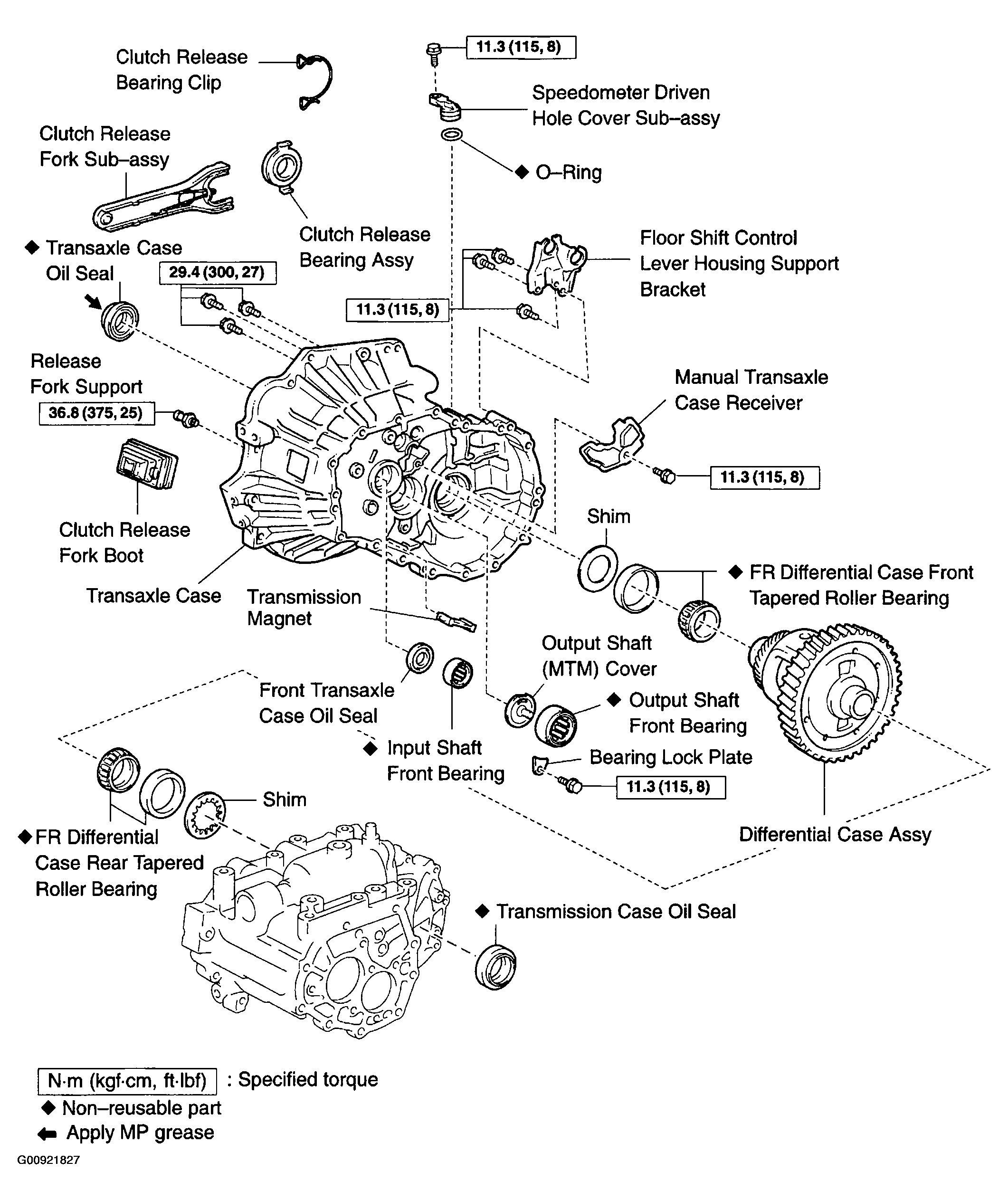

Fig 3: Exploded View Of Manual Transaxle Assembly Components (C60) (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
