Output Shaft ASSY (C59): Components

WARNING: This page is about a different variant/trim than selected.

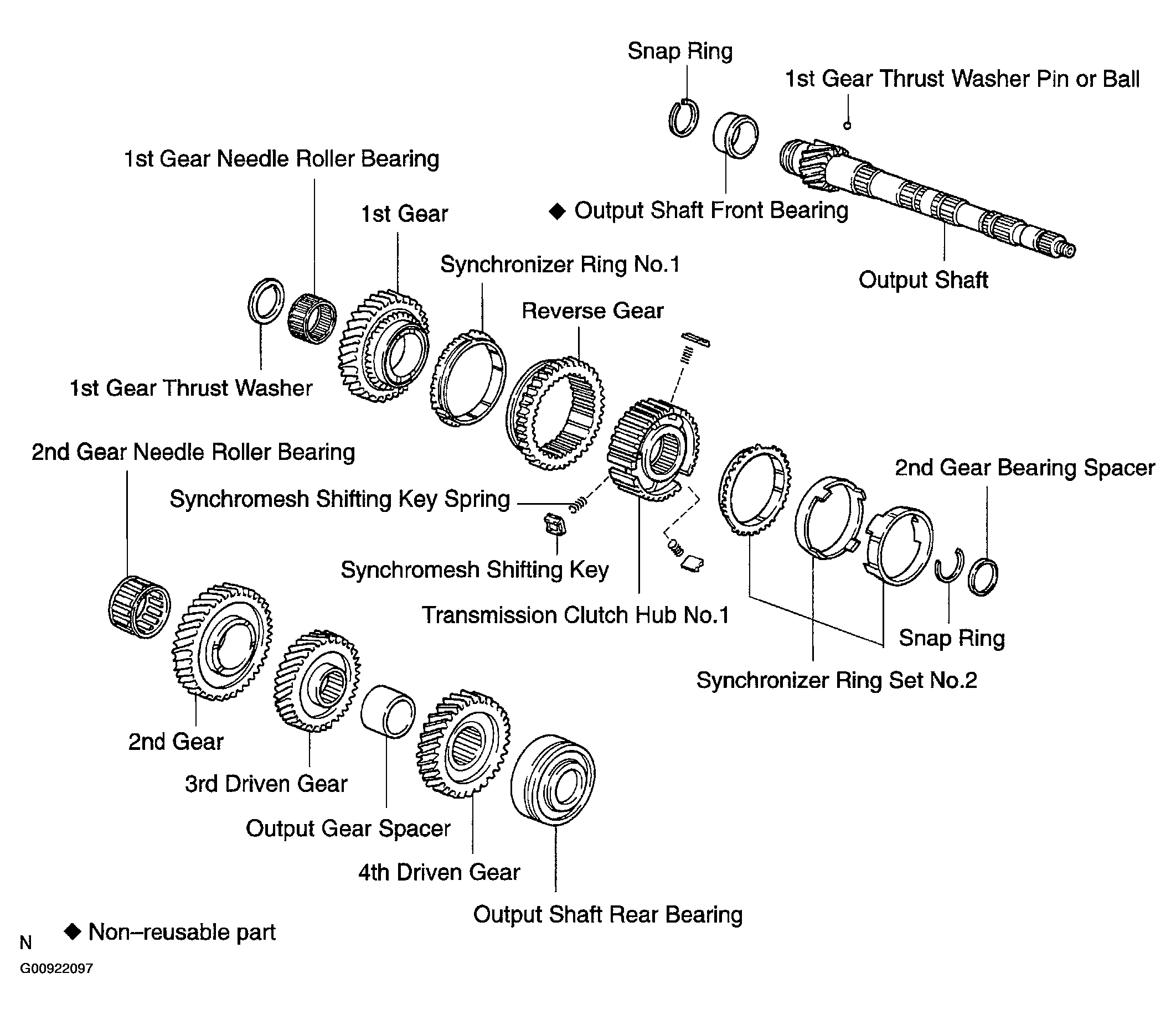

Fig 1: Exploded View Of Output Shaft Assy Components (C59)
G00922097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
