Front Seat Belt With PRETENSIONER: Components

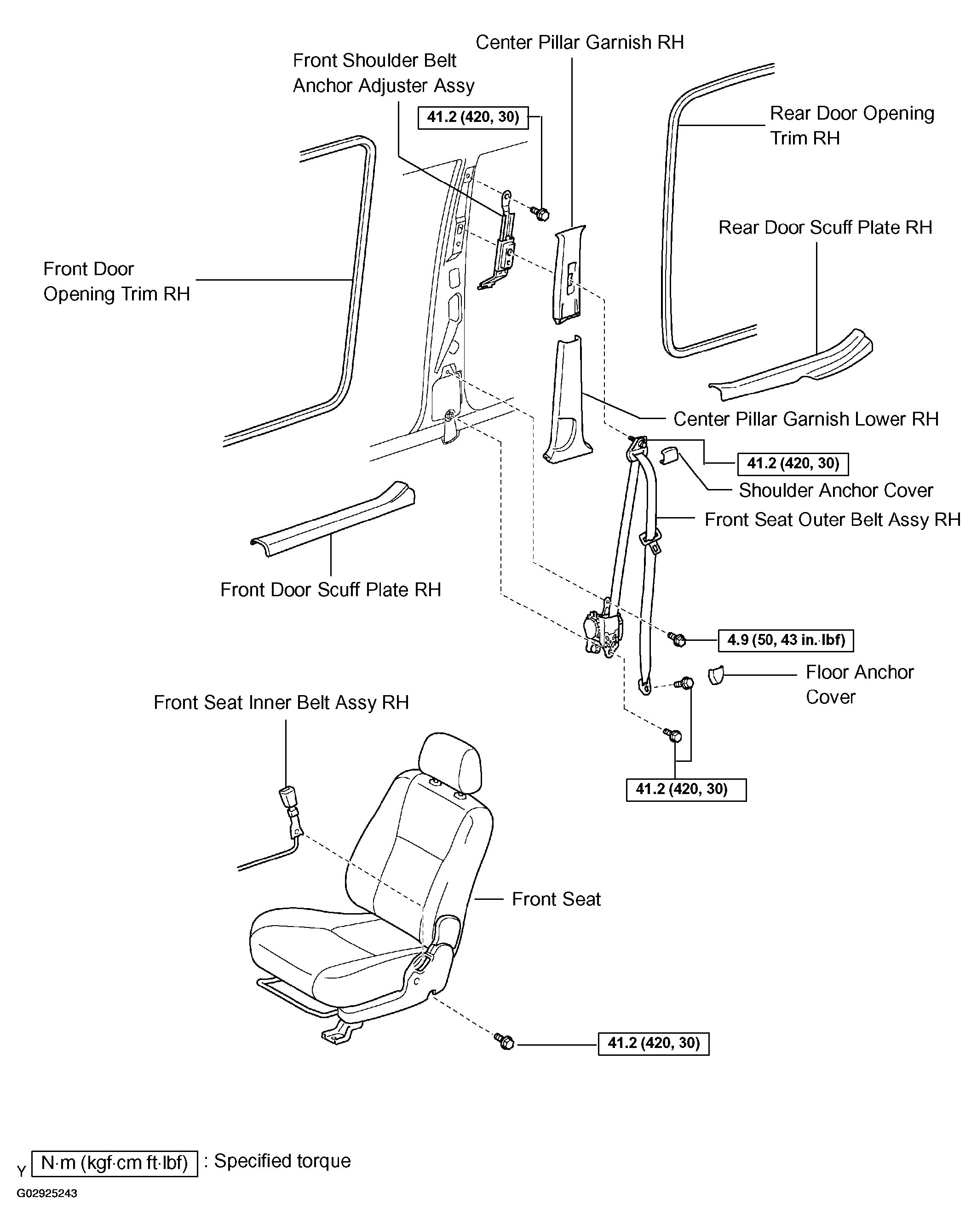

Fig 1: Exploded View Of Front Seat Belt And Related Components
G02925243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
