Section 1015 (Audio System)
›
Location
Section 1015 (Audio System): Location
WARNING:
This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

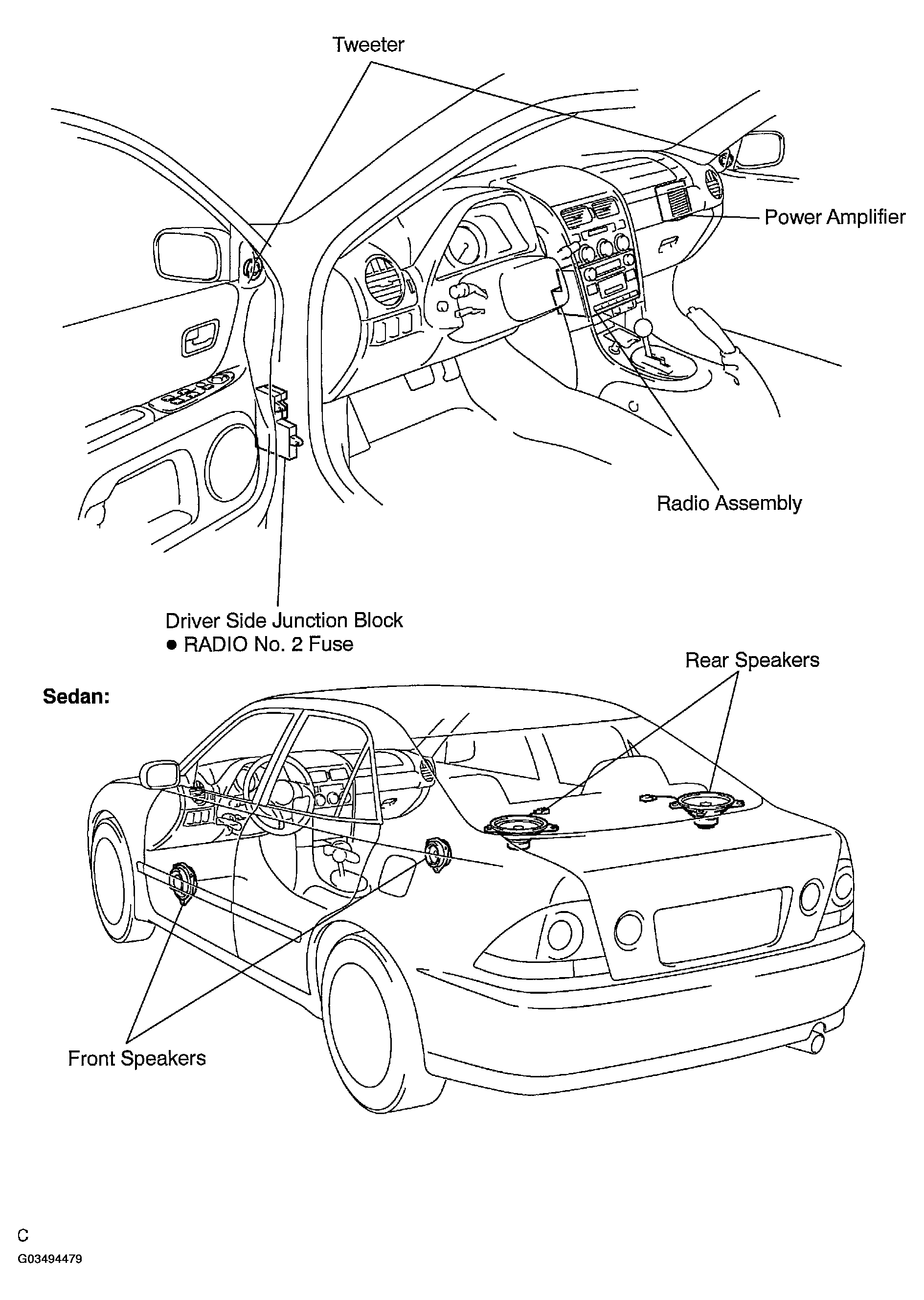

Fig 1: Locating Audio System Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

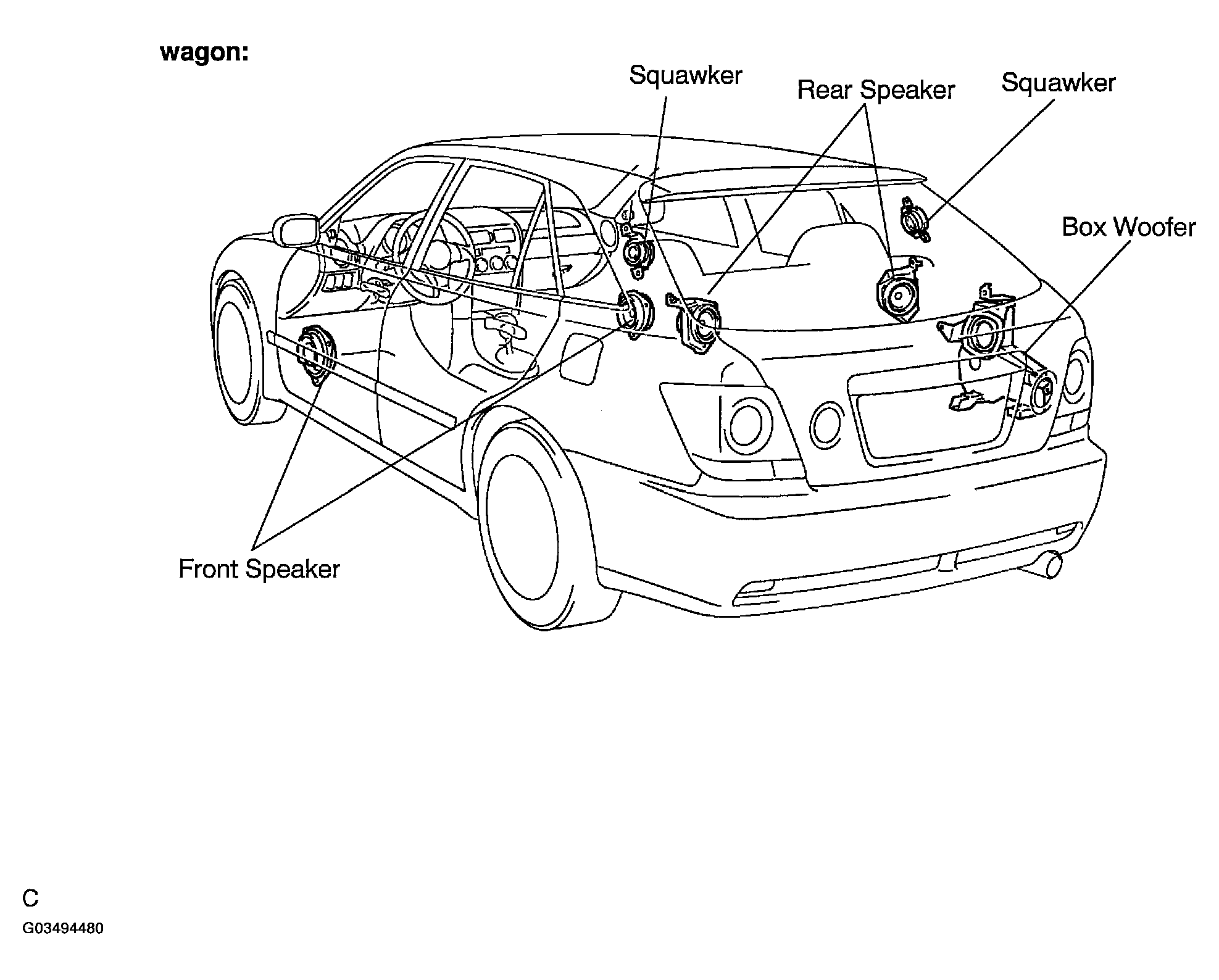

Fig 2: Locating Audio System Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
