Battery Blower ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

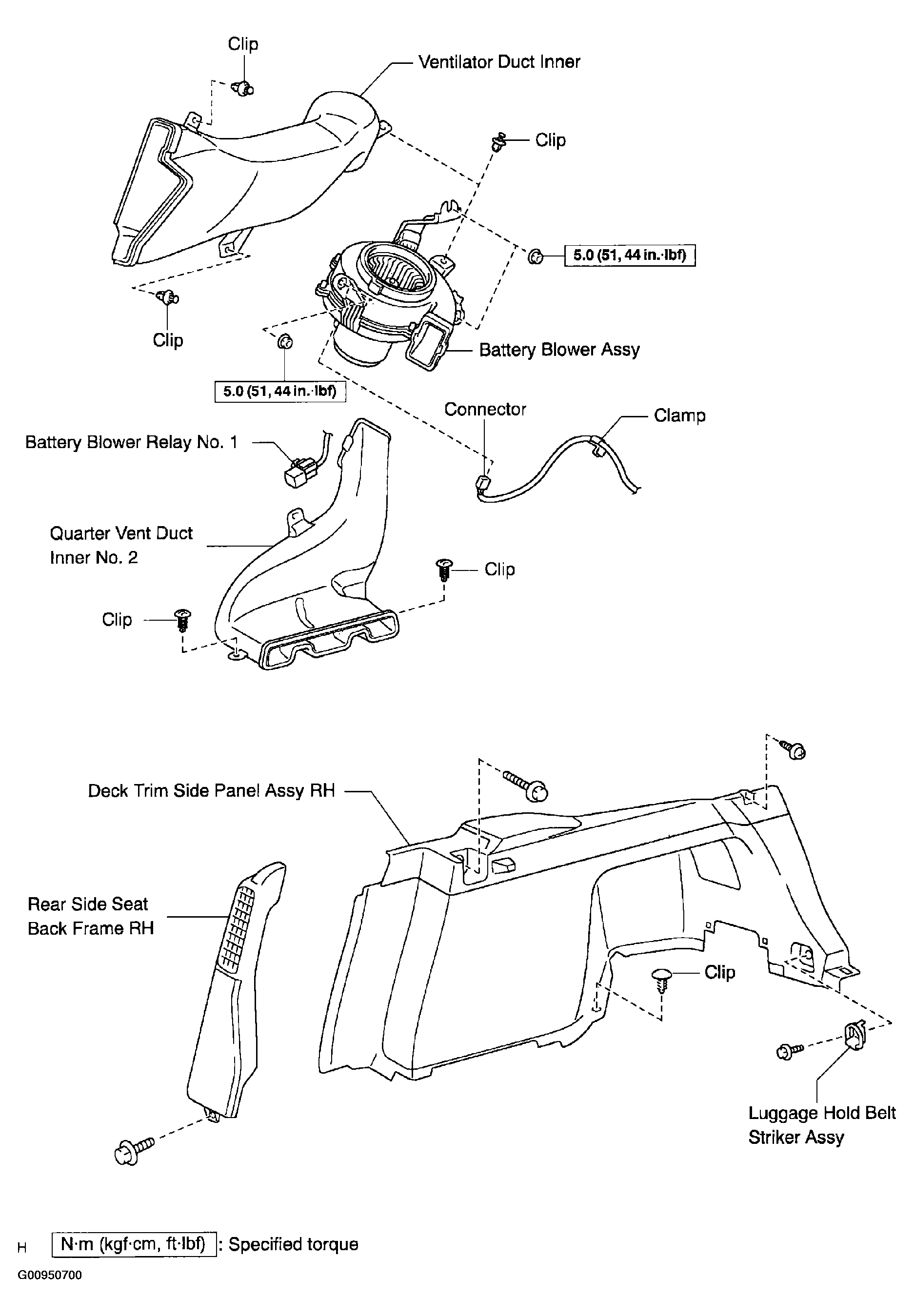

Fig 1: Identifying Battery Blower Assy Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Battery Blower Assy Components (2 Of 3)

Fig 3: Identifying Battery Blower Assy Components (3 Of 3)
