Section 584 (Sliding Roof): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

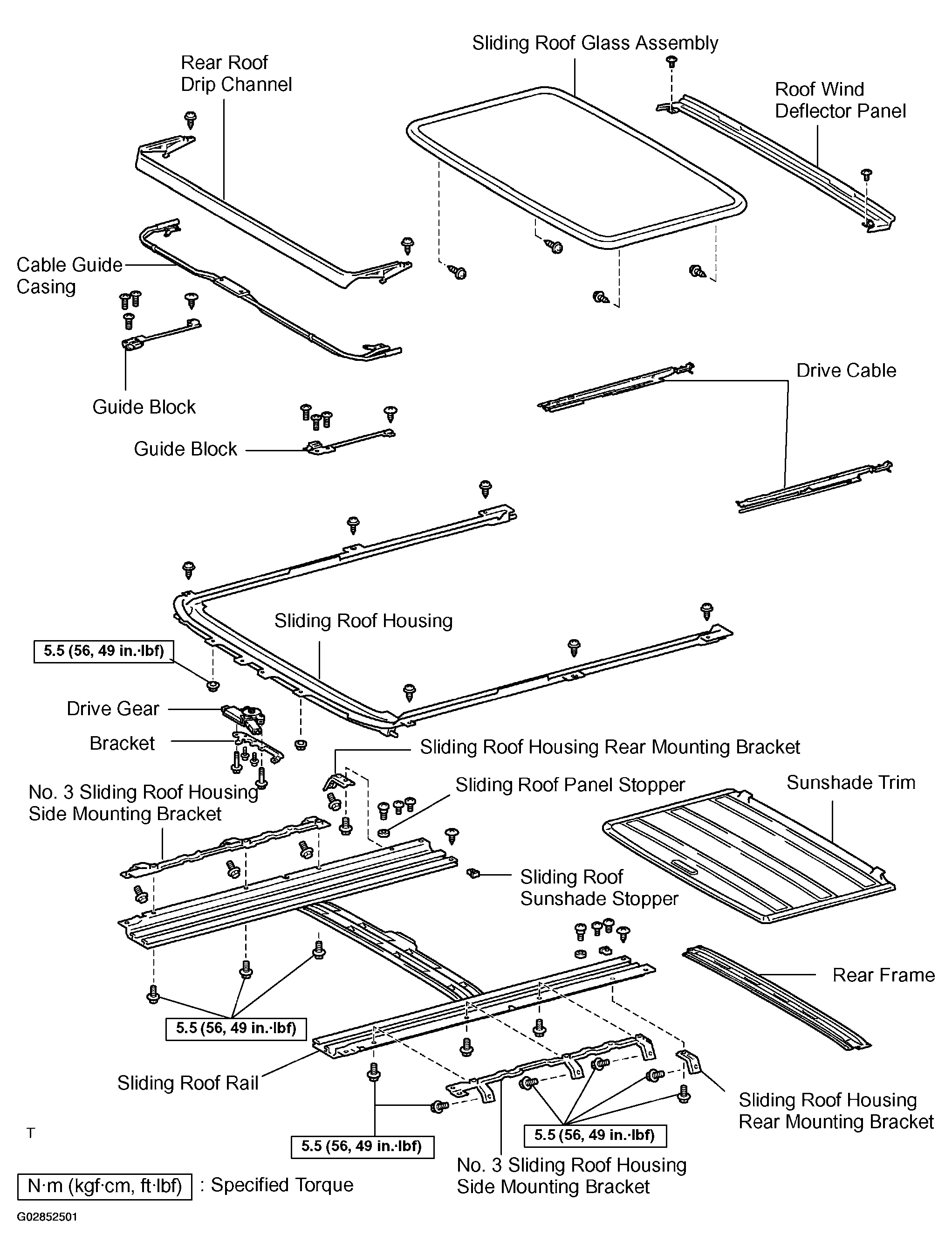

Fig 1: Identifying Sliding Roof Components
G02852501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
