Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK THE CONDITION
1. Check with the customer if the vehicle has been turned by a turn-table at parking.
  Standard: The vehicle has not been turned by a turntable.

  HINT:

  If the ignition switch is turned to the ACC or ON position while the vehicle is being turned by a turntable, the system may store the angular velocity at this time. For this reason, the vehicle position cursor could deviate.

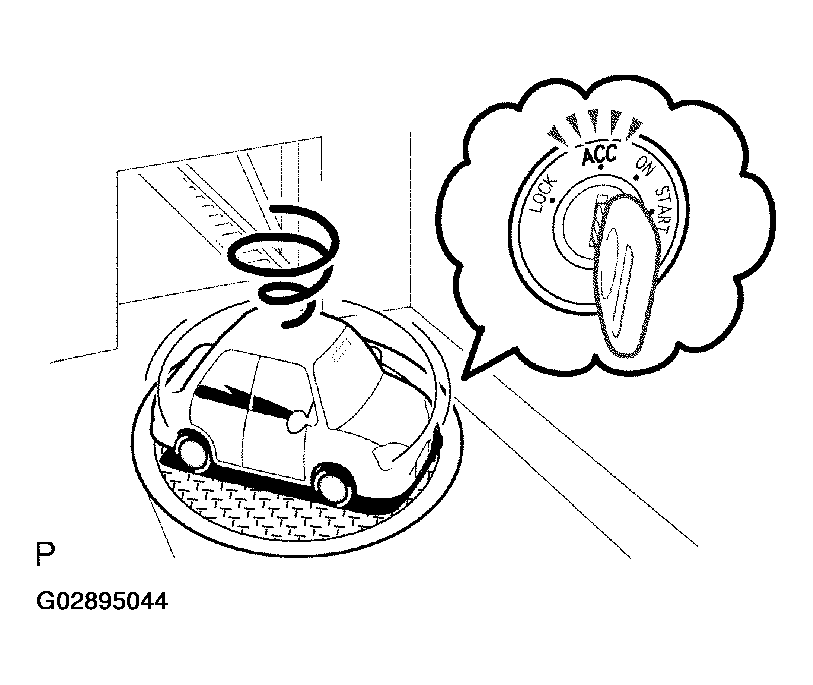

  Fig 1: Identifying Ignition Switch Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: TURN IGNITION SWITCH TO ON POSITION WHEN VEHICLE IS COMPLETELY STOPPED
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
