System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

Ignition timing is determined by the ECM based on signals from various sensors.

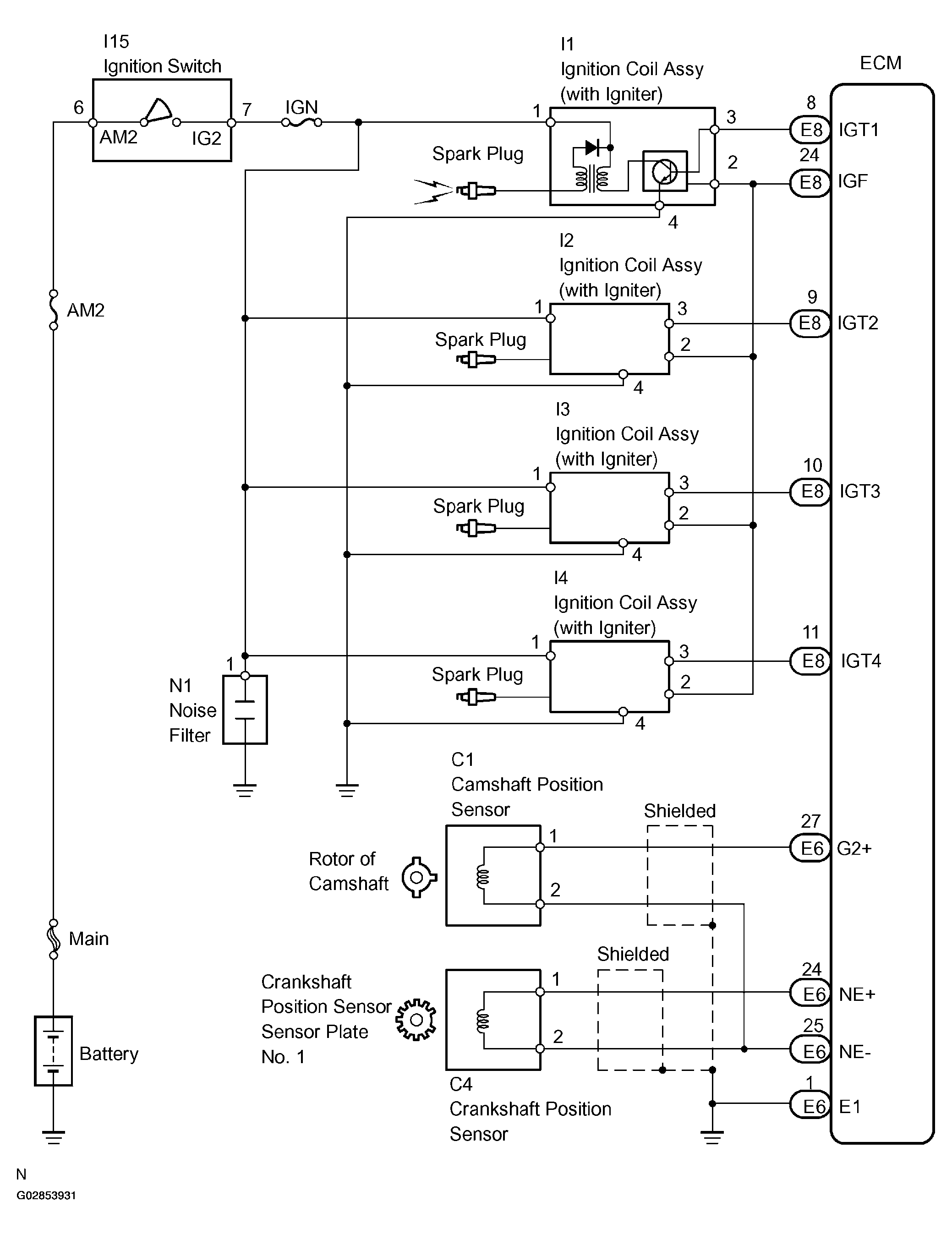

Fig 1: Ignition System Diagram
