Air Conditioning Control Assembly: Components

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

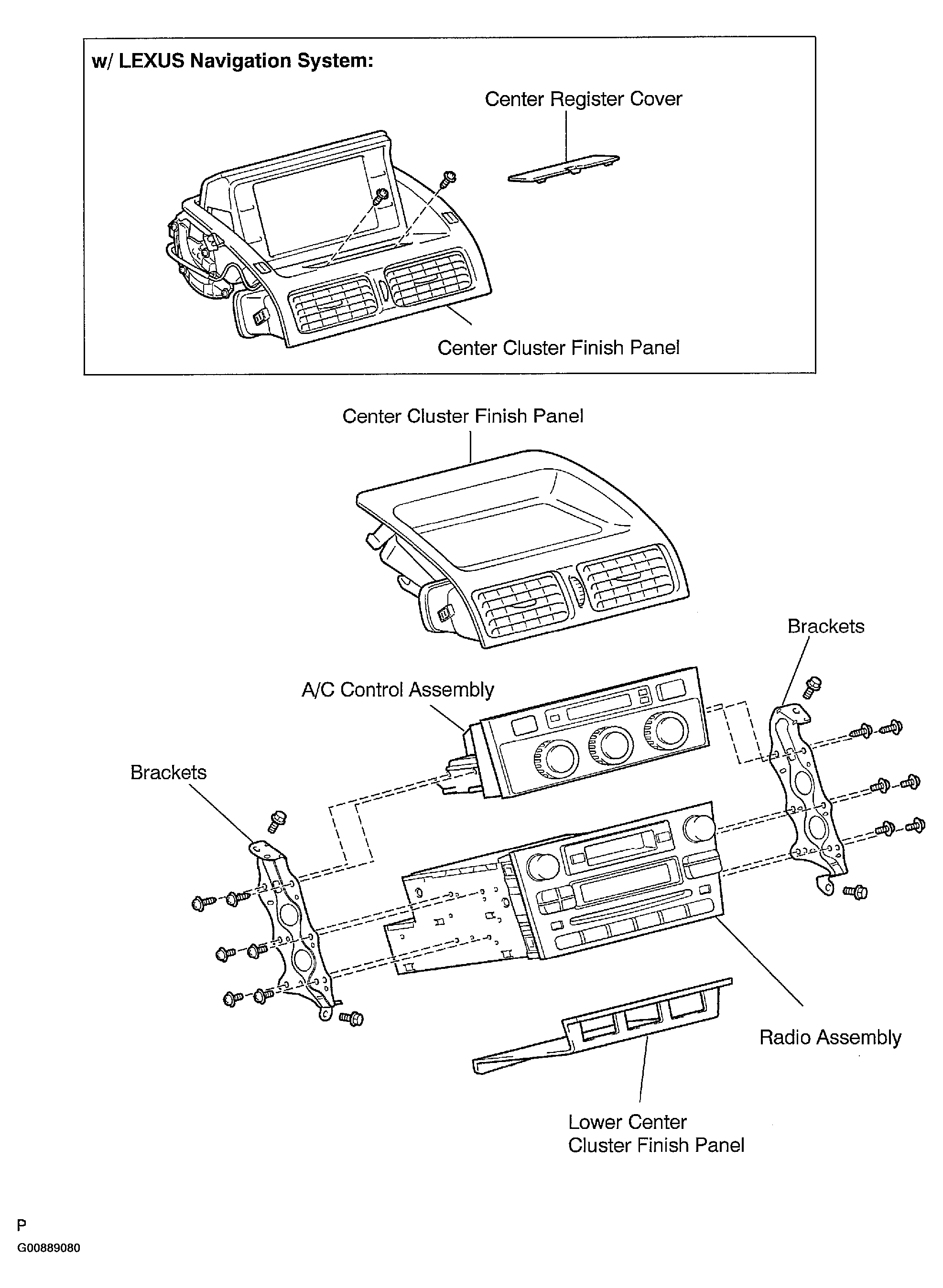

Fig 1: Identifying A/C Control Assembly Components (1 Of 2)
G00889080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

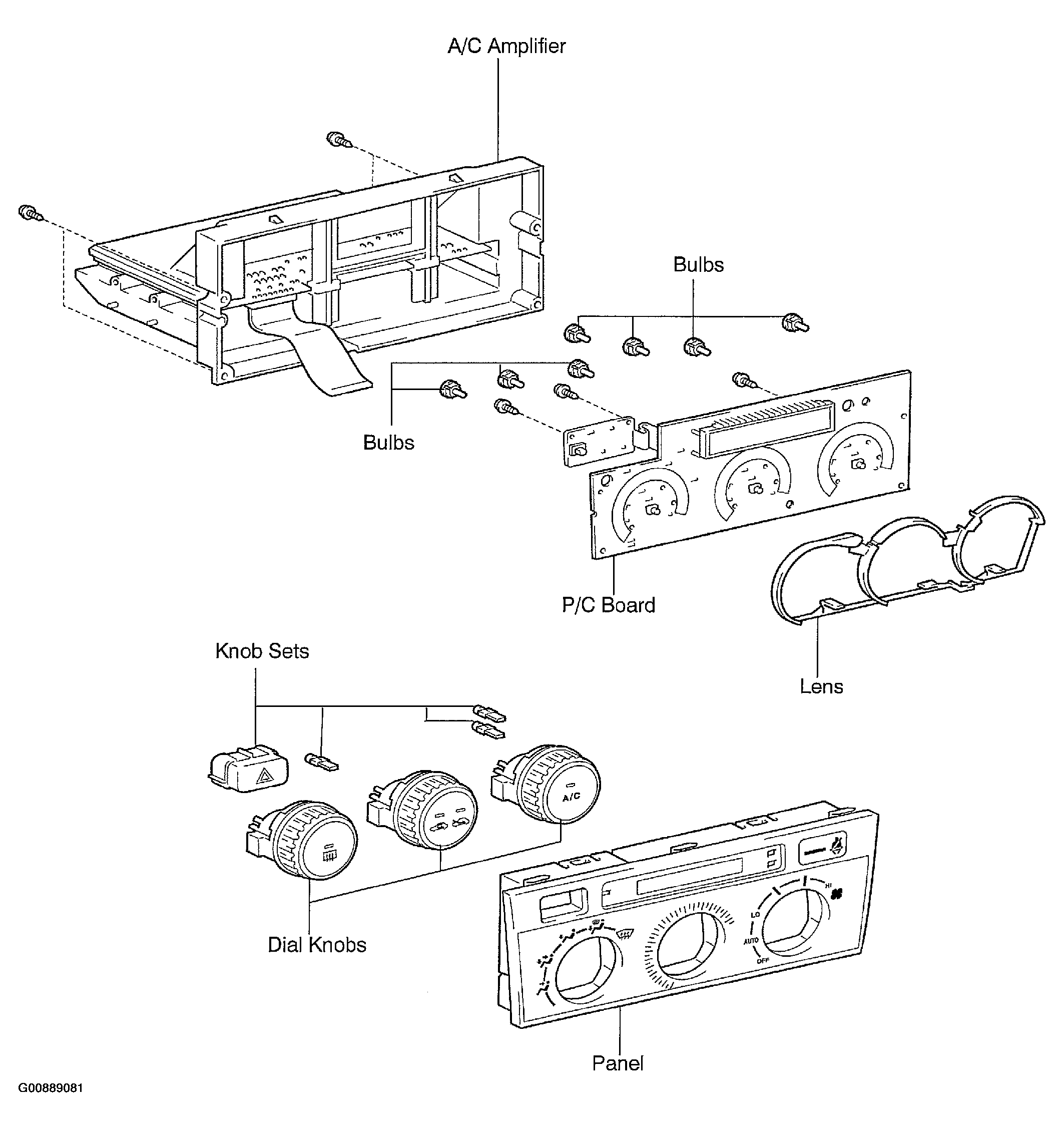

Fig 2: Identifying A/C Control Assembly Components (2 Of 2)
G00889081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
