Radiator Fan Relay: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The relay mounting location is designed to dissipate heat. Ensure the relay is securely attached to prevent relay "thermal" shutdown and relay damage, resulting in possible engine overheating.

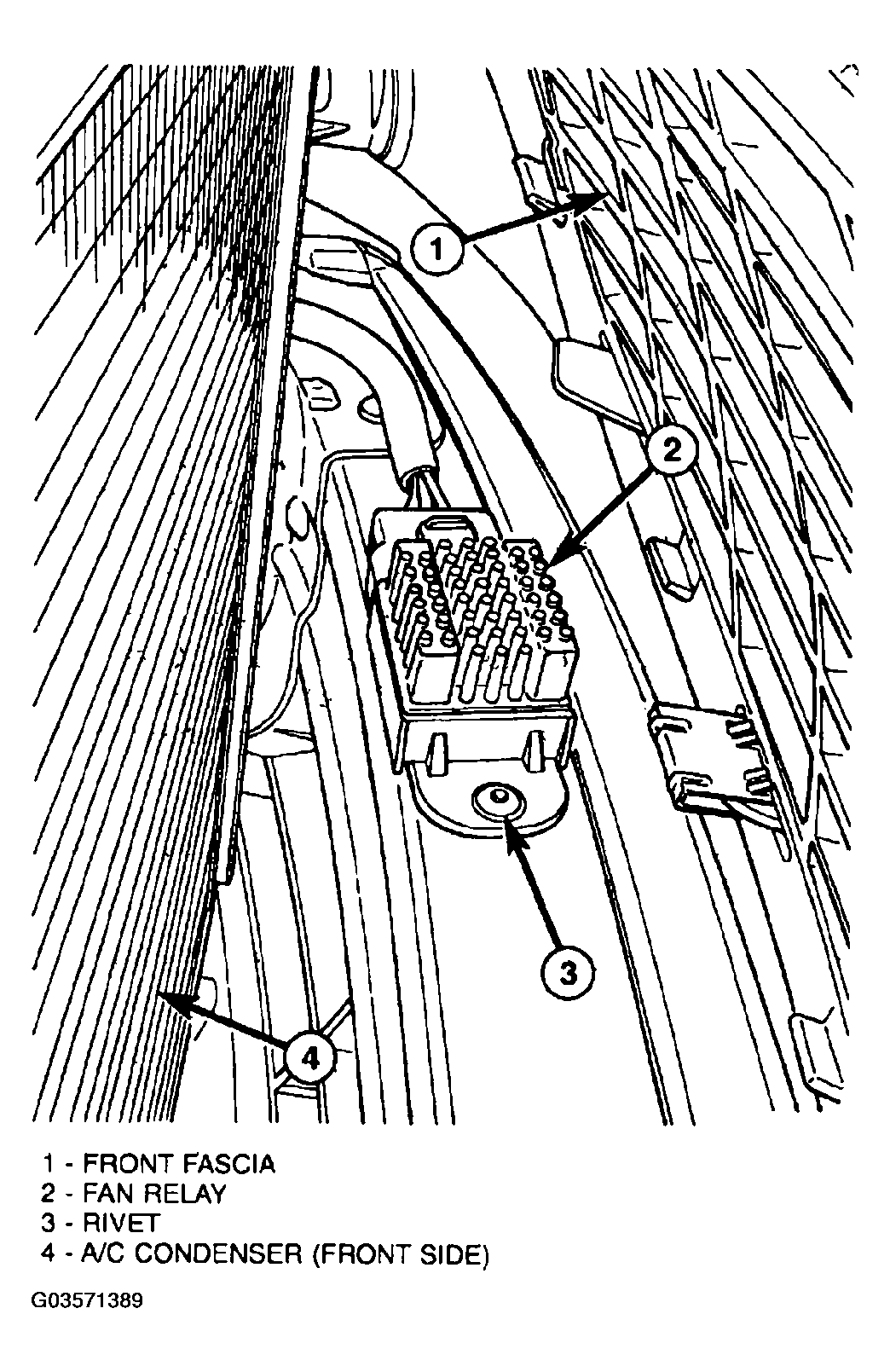

- Position relay and install a new rivet (Figure ).
- Connect electrical connector to relay.
- Install front facia (Refer to FRONT FASCIA ).
- Connect negative cable to battery.
