Second Row Seat: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Place seat into position in vehicle.

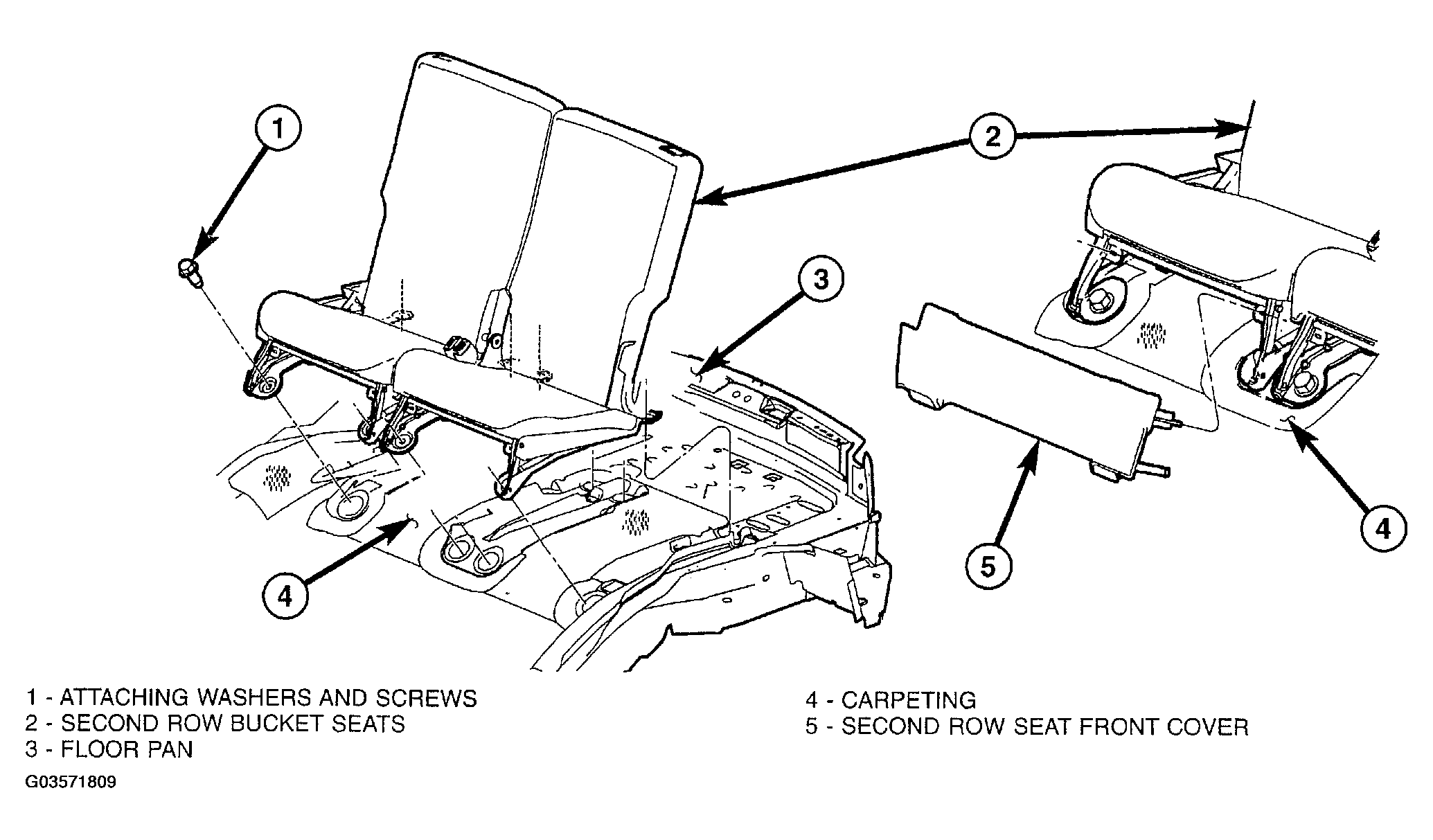

- Install second row seat front attaching screws (Figure ).
- Install second row seat front covers.

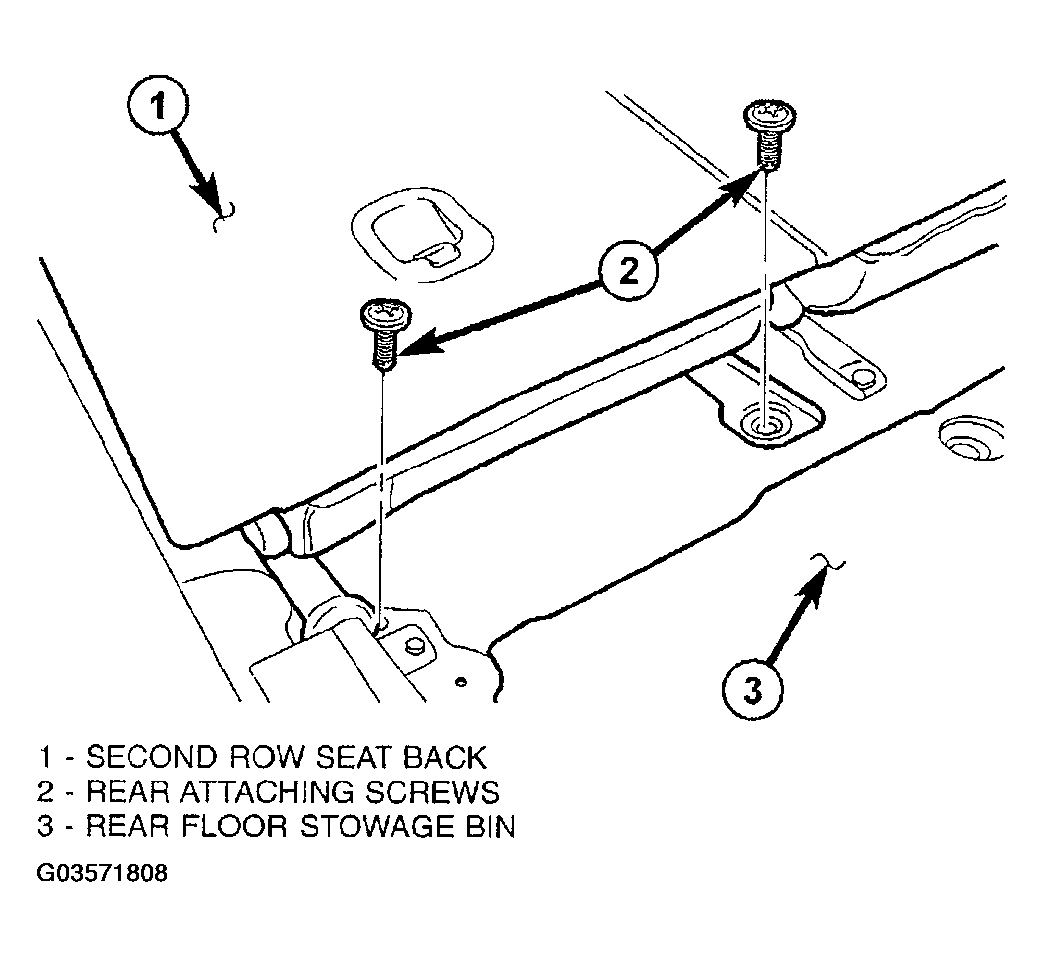

- Install second row seat rear attaching screws (Figure ).
- Install rear floor stowage bin. (Refer to REAR FLOOR STOWAGE BIN ).
