Section 13 (Transfer Case - U341F)
›
Transfer System (U341F)
›
Problem Symptoms Table
Problem Symptoms Table
WARNING:
This page is about a different variant/trim than selected.

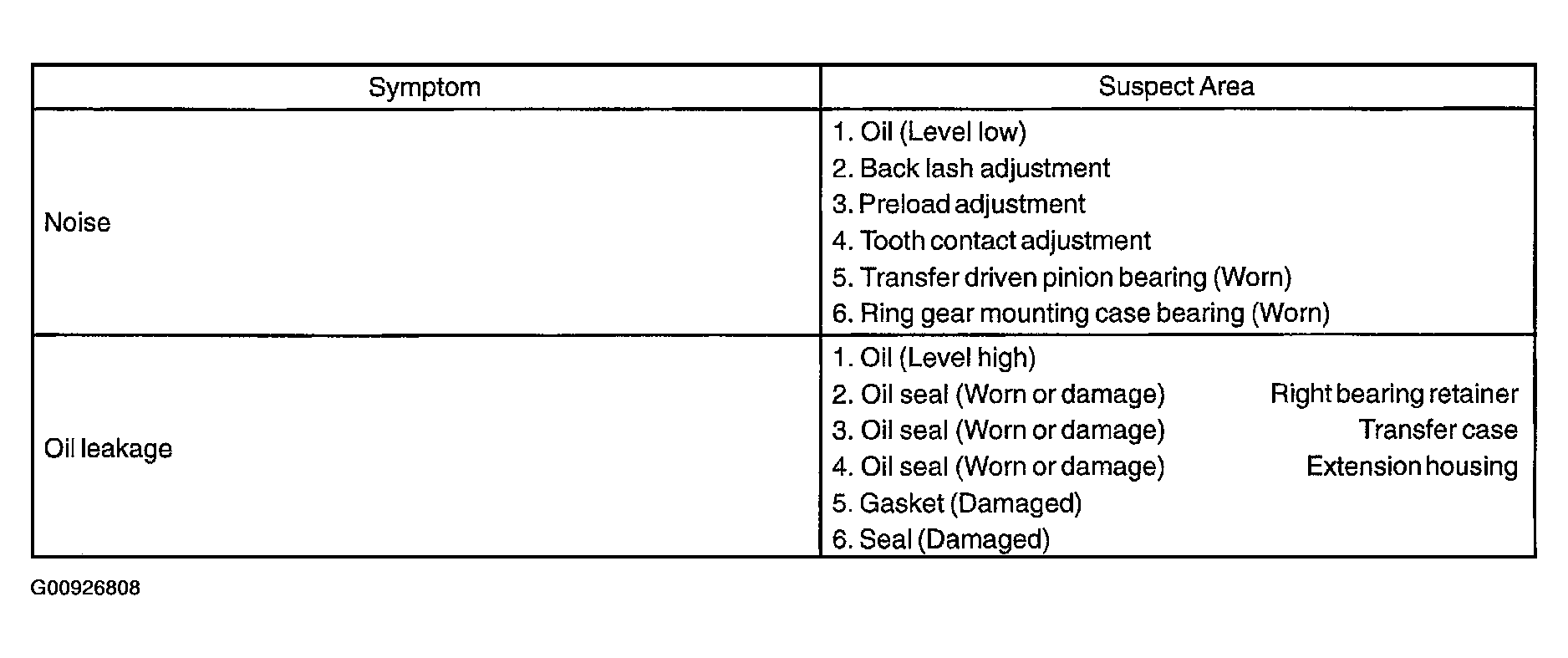

Fig 1: Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
