Glass Breakage Sensor Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

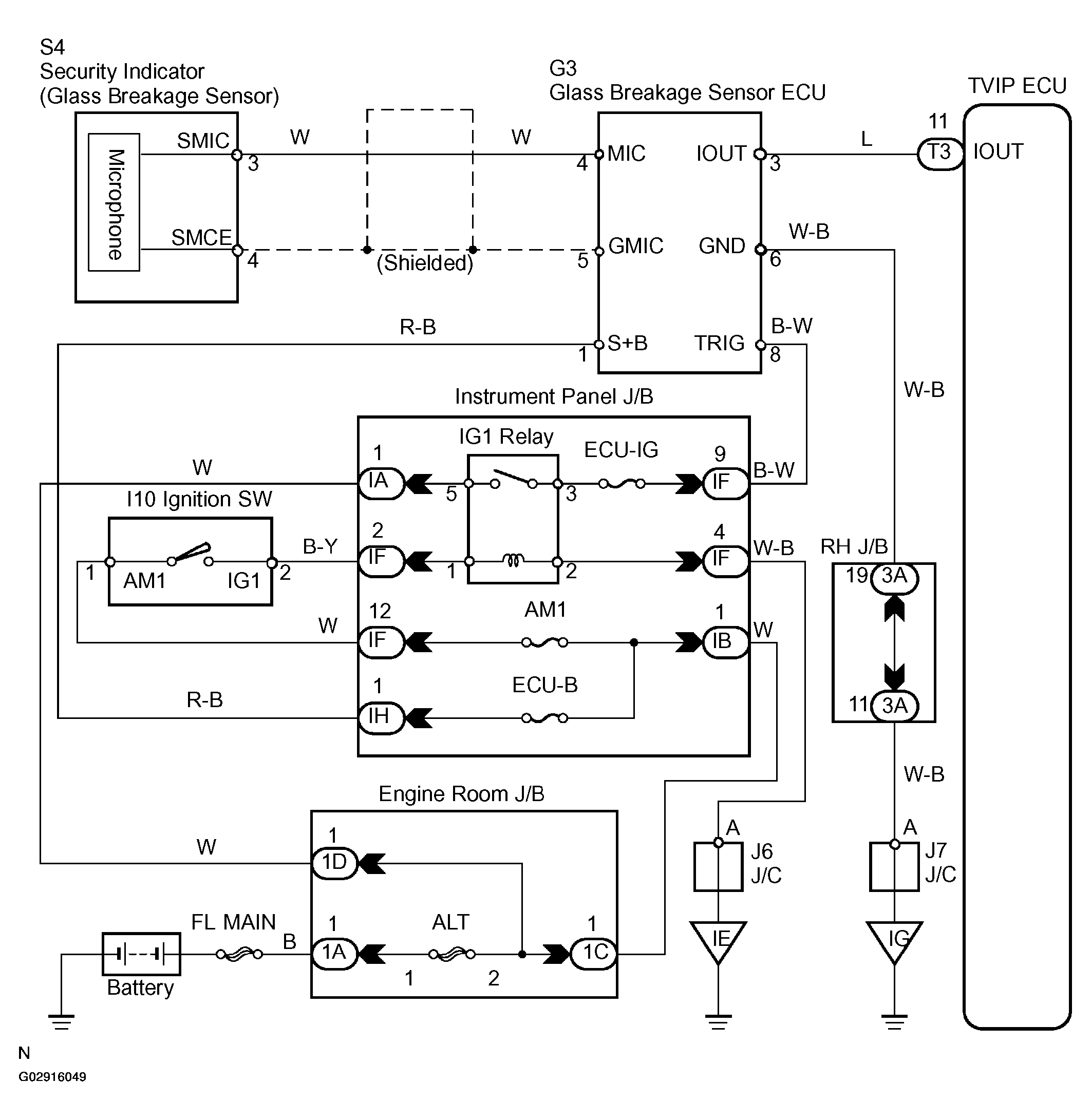

Fig 1: Wiring Diagram - Glass Breakage Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
