Indicator Light Circuit: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

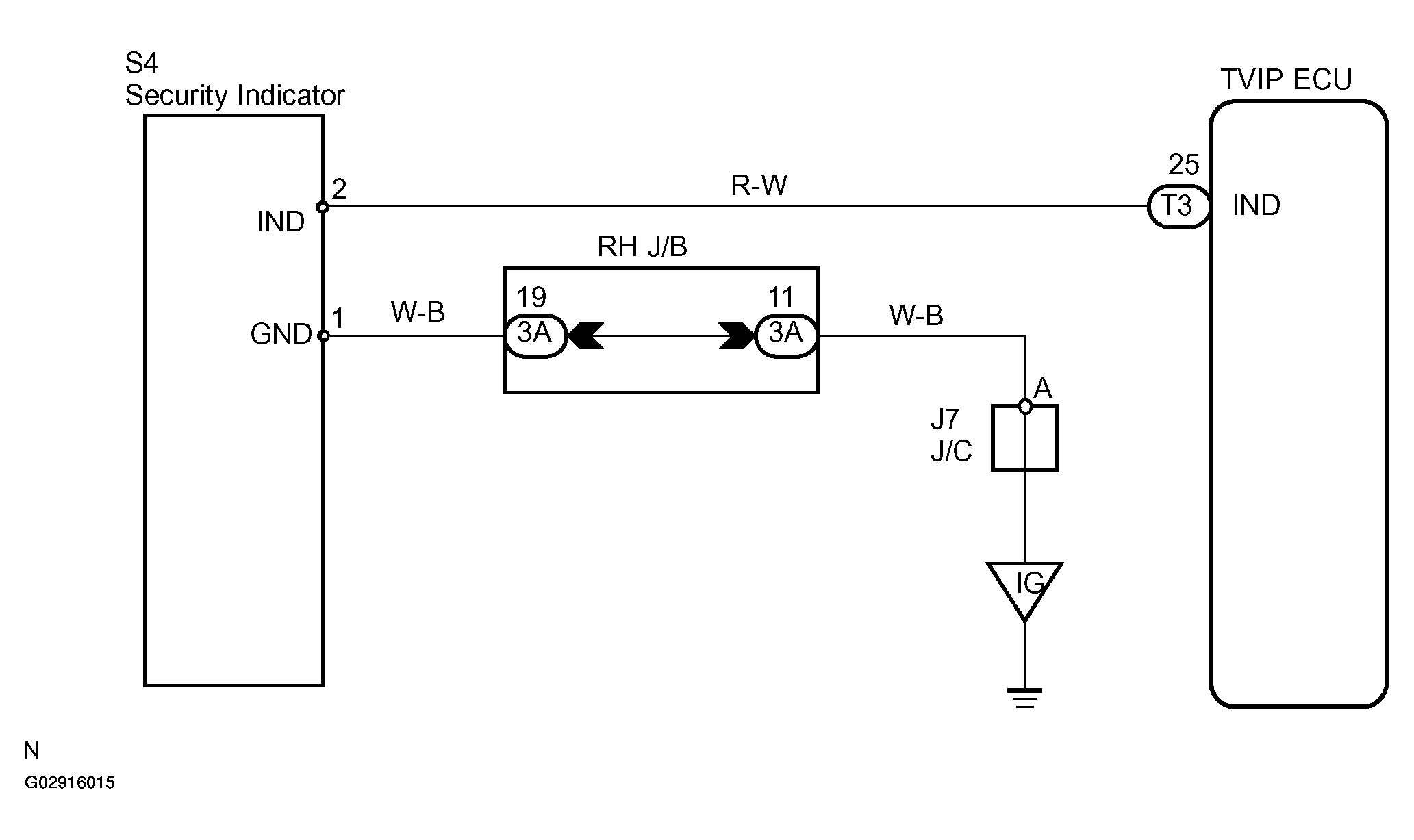

Fig 1: Wiring Diagram - Security Indicator & TVIP ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
