Abs With EBD System - Diagnostics
›
Terminals Of Ecu
Terminals Of Ecu

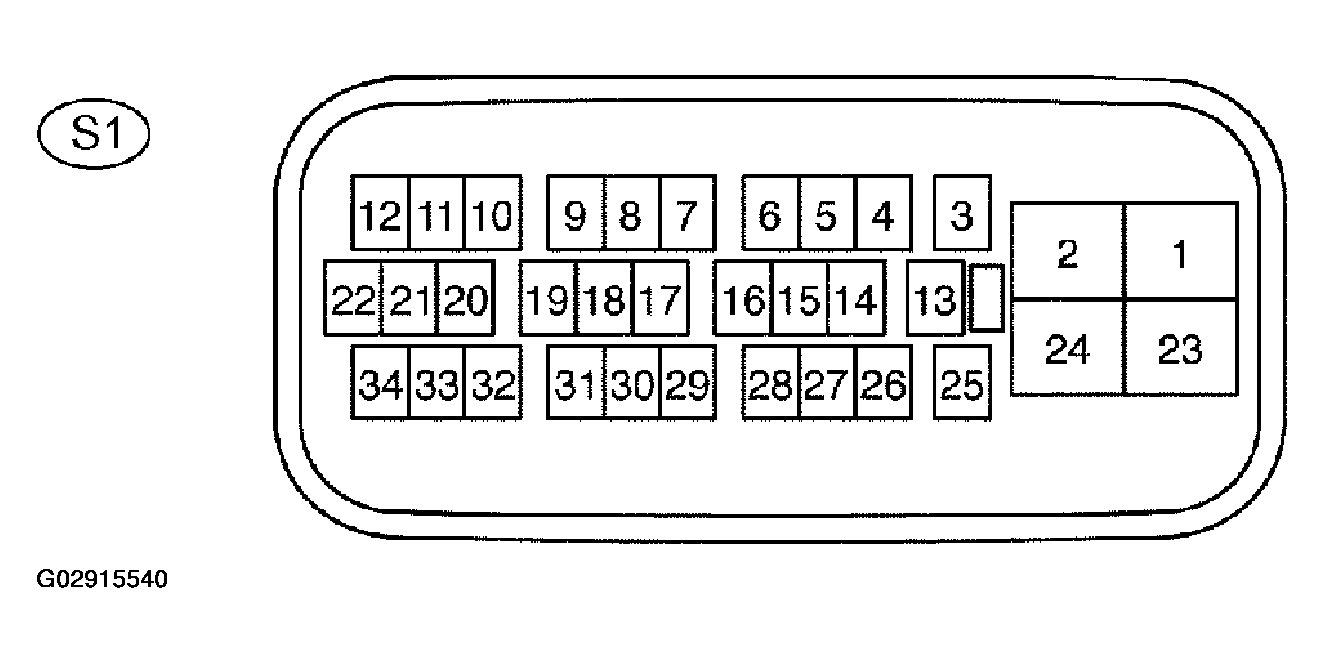

Fig 1: Identifying ABS ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

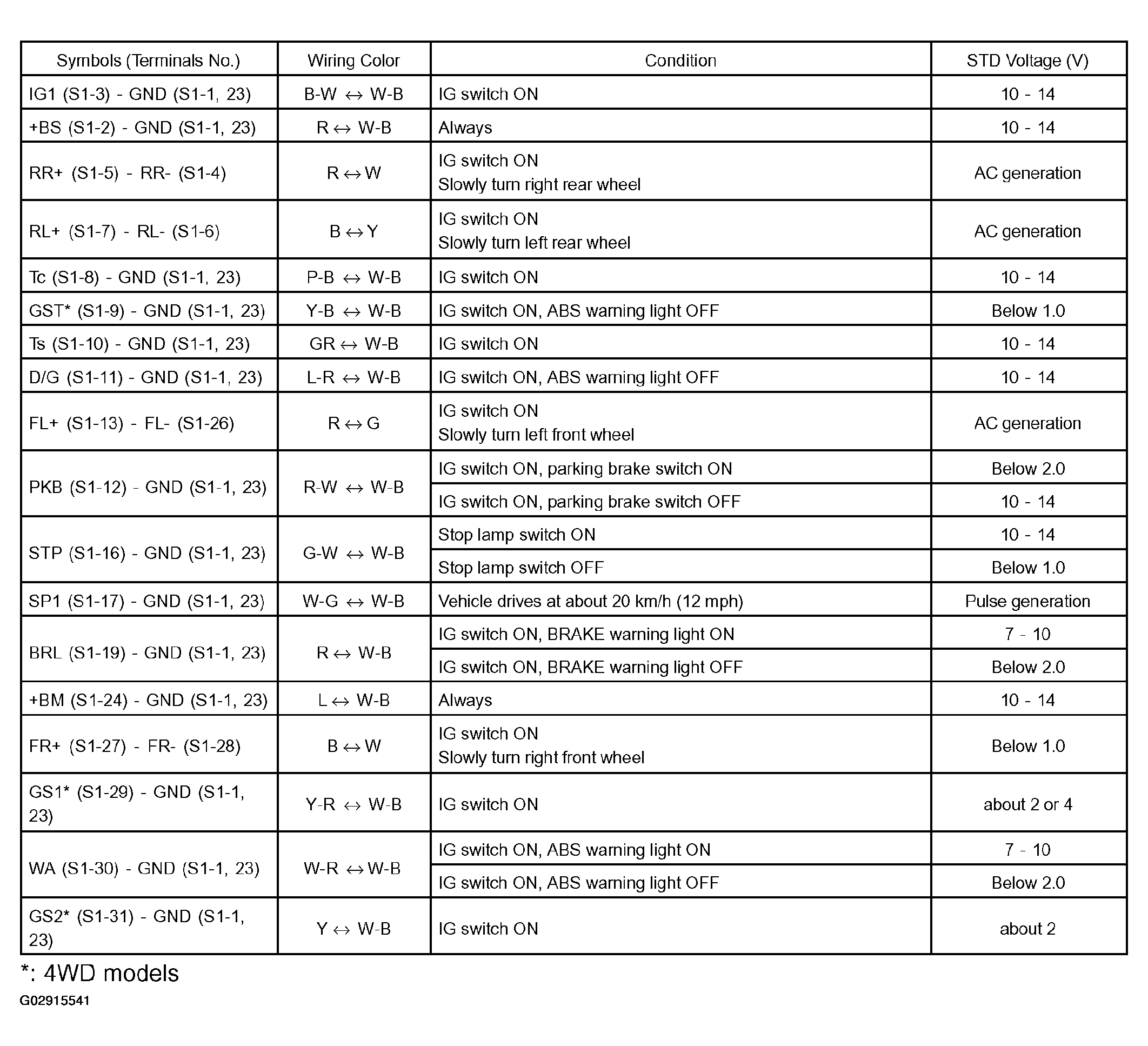

Fig 2: ABS ECU Pin Voltage Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
