Connector Identification: Notes

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

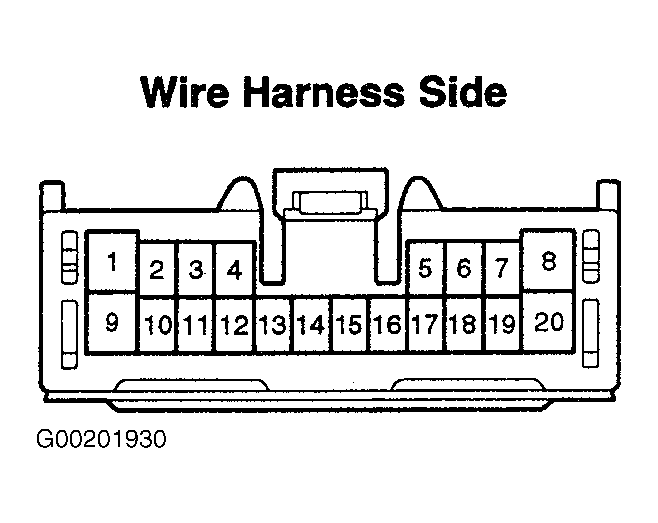

Fig 1: Identifying Automatic Light Control Sensor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

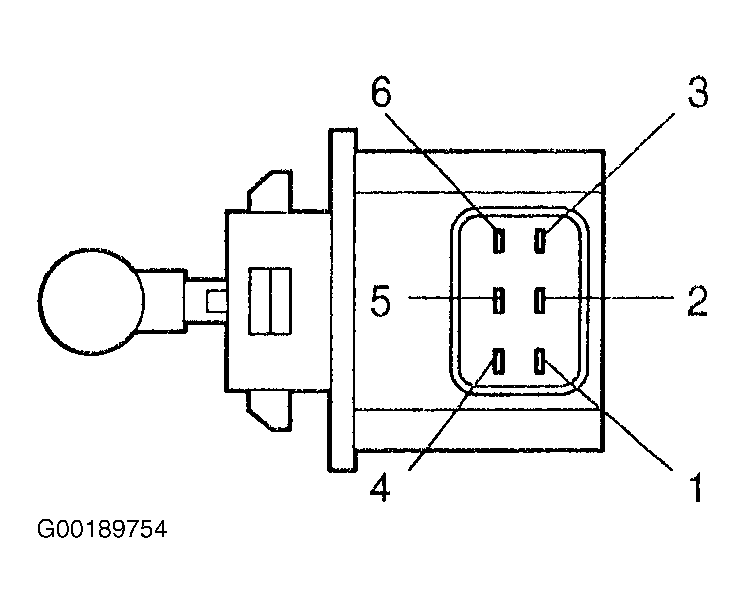

Fig 2: Identifying Headlight Beam Level Control Actuator Connector Terminals

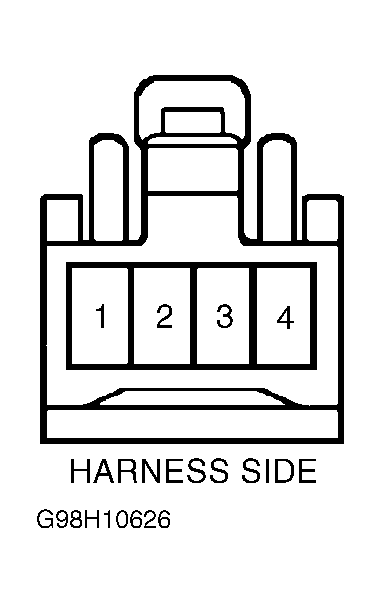

Fig 3: Identifying Headlight Beam Level Control ECU Connector Terminals
