Step 2 - Inspect Interior Light Continuity
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

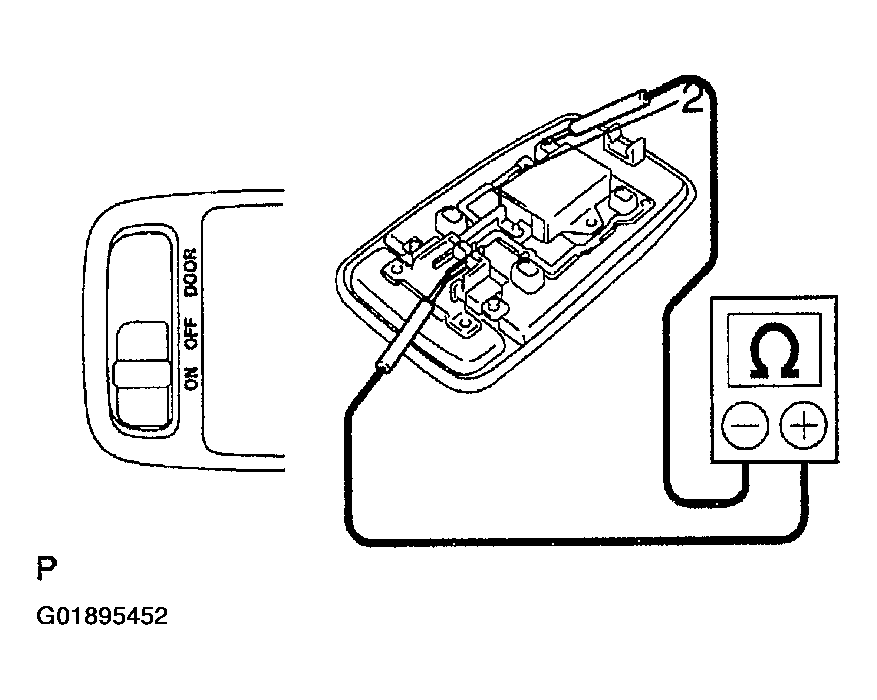

- Disconnect the connector from the room light.
- Turn the room light switch ON, check that continuity exists between terminal 1 and body ground.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If continuity is not as specified, replace the light assembly or bulb.
