Navigation Ecu

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Navigation ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

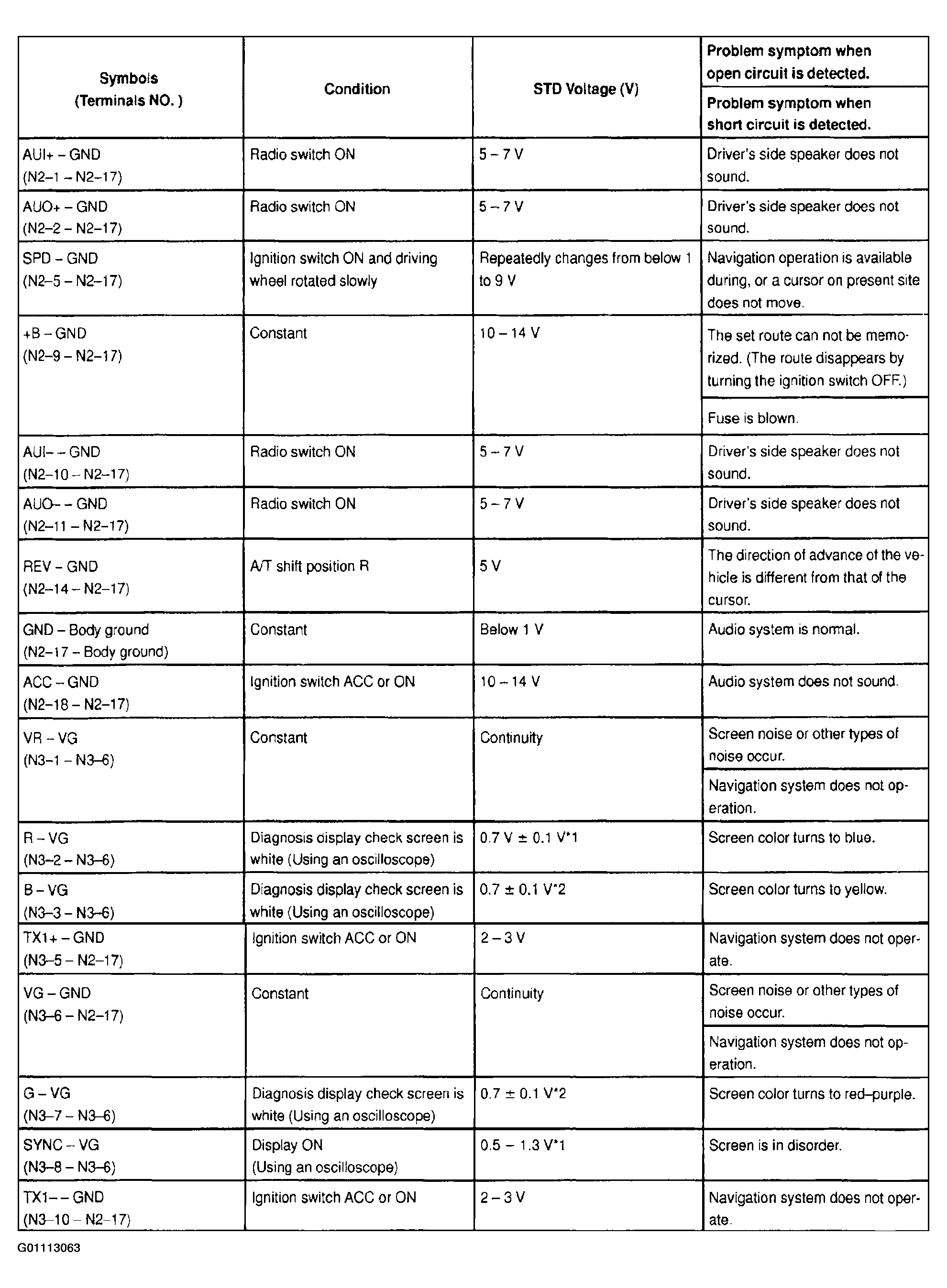

Fig 2: Navigation ECU Terminal Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

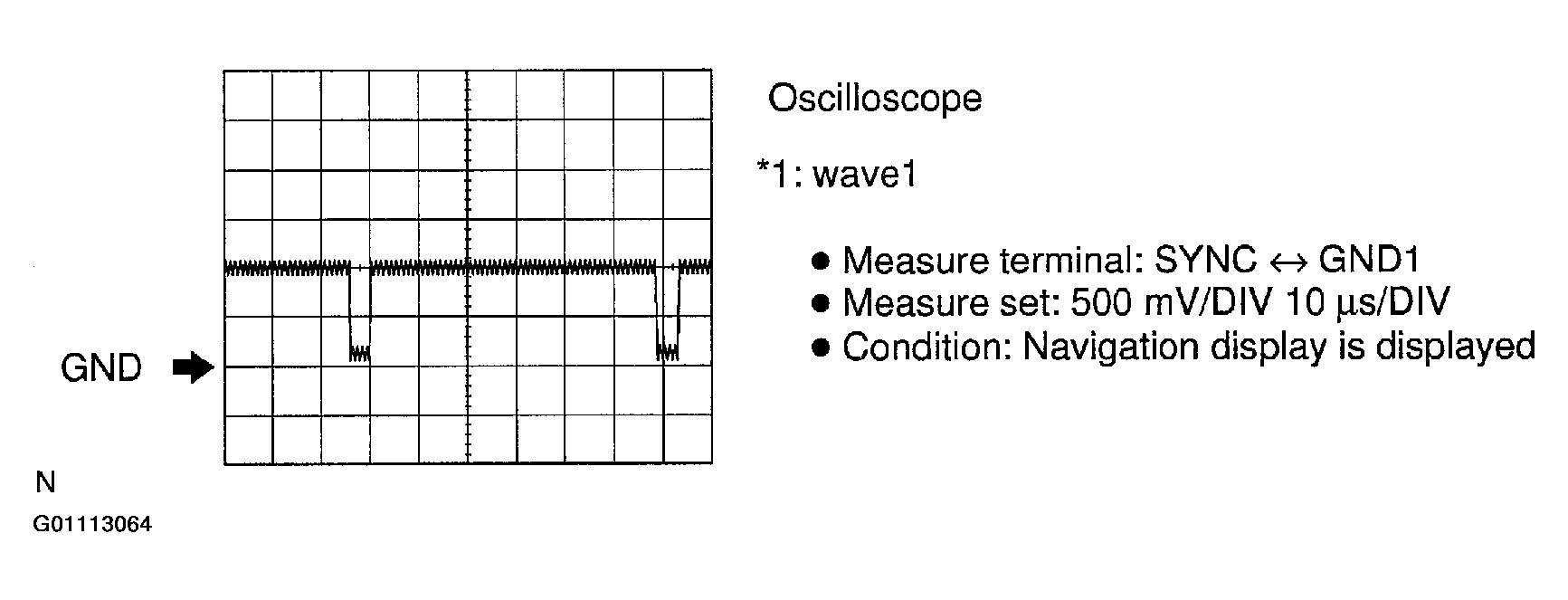

Fig 3: Reading Oscilloscope Wave 1

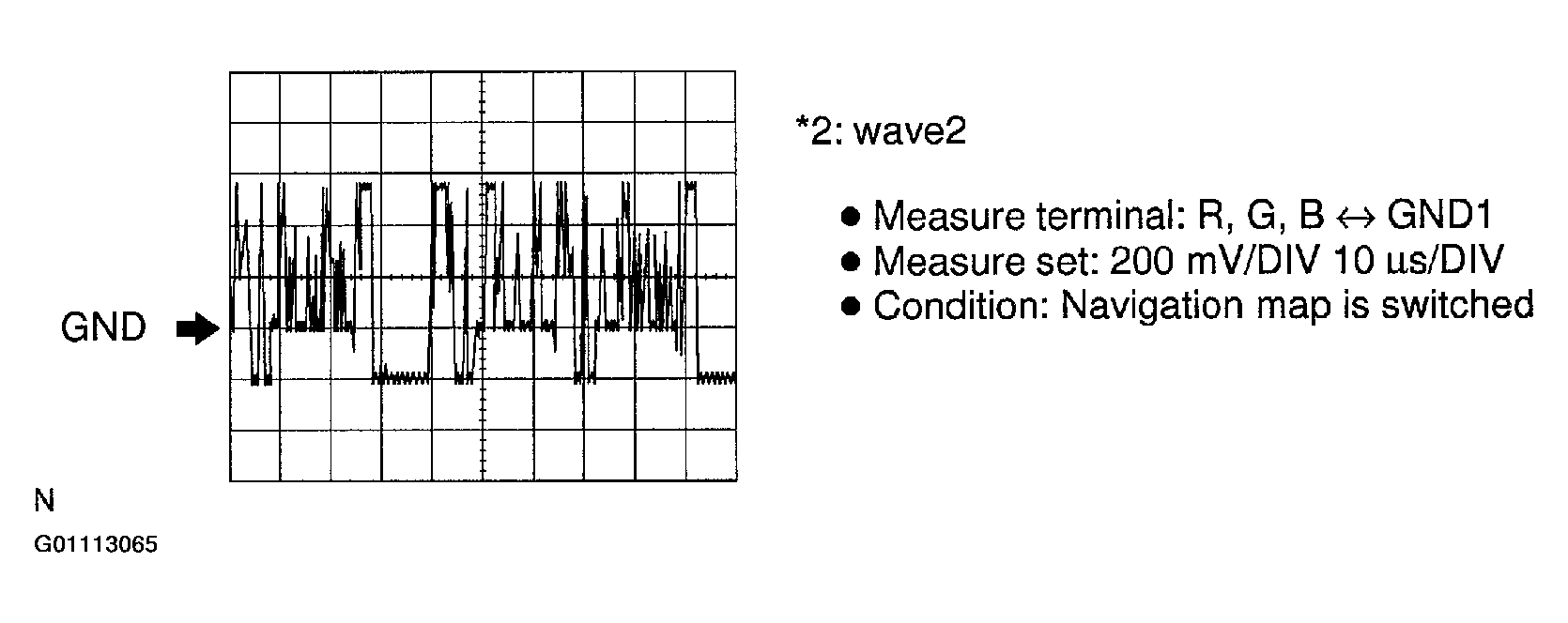

Fig 4: Reading Oscilloscope Wave 2
