Timing Chain: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Timing Chain Components (1 Of 2)
G02925382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

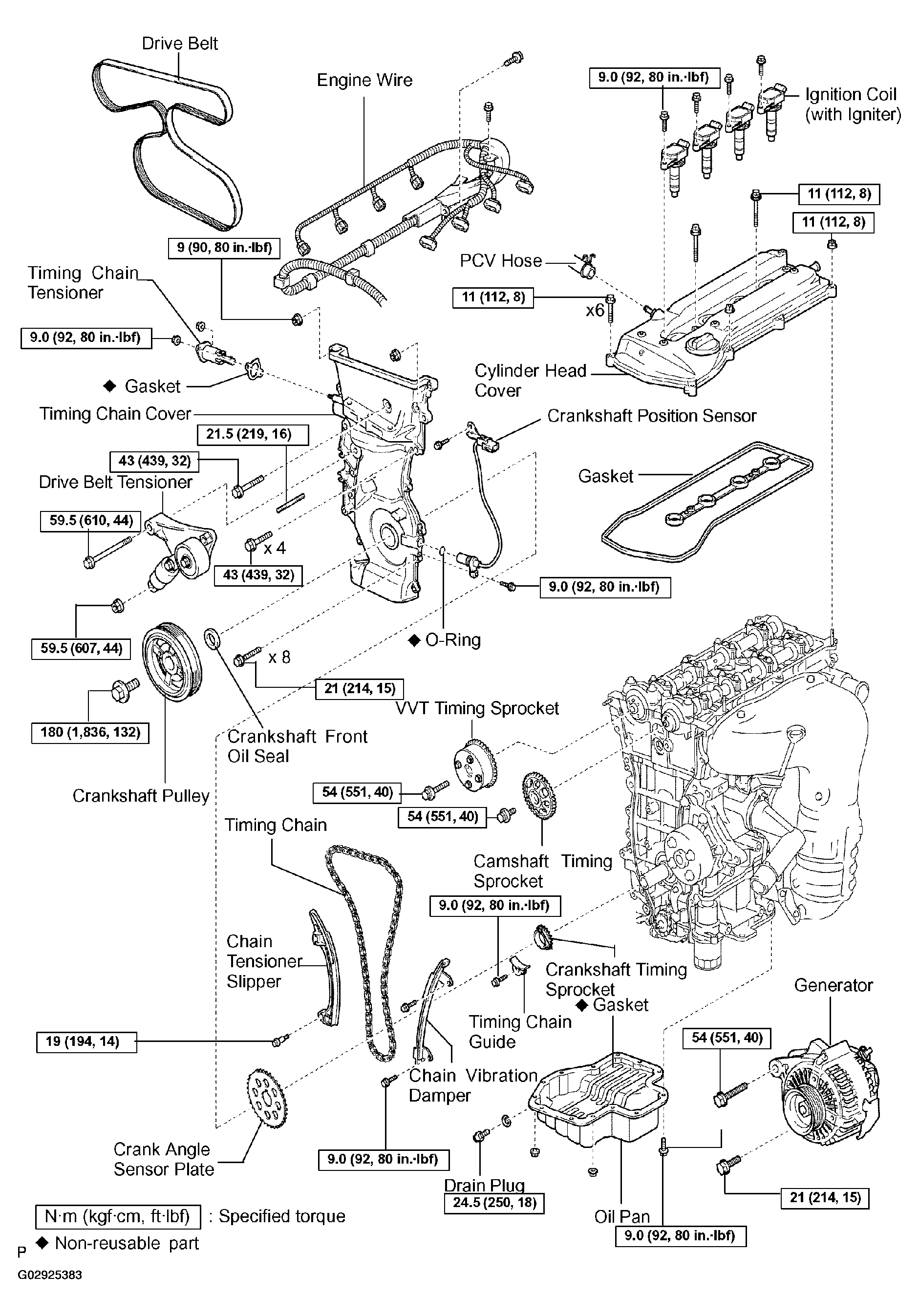

Fig 2: Identifying Timing Chain Components (2 Of 2)
G02925383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
