Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

RADIO AND PLAYER (w/ Rear Seat Entertainment System)

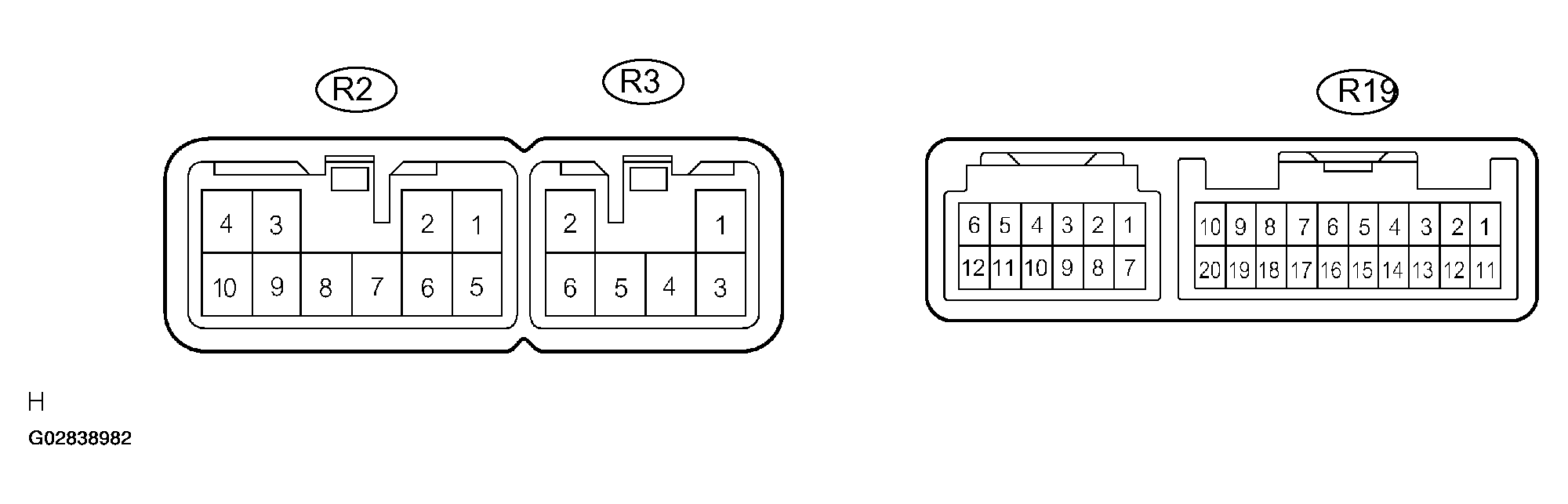

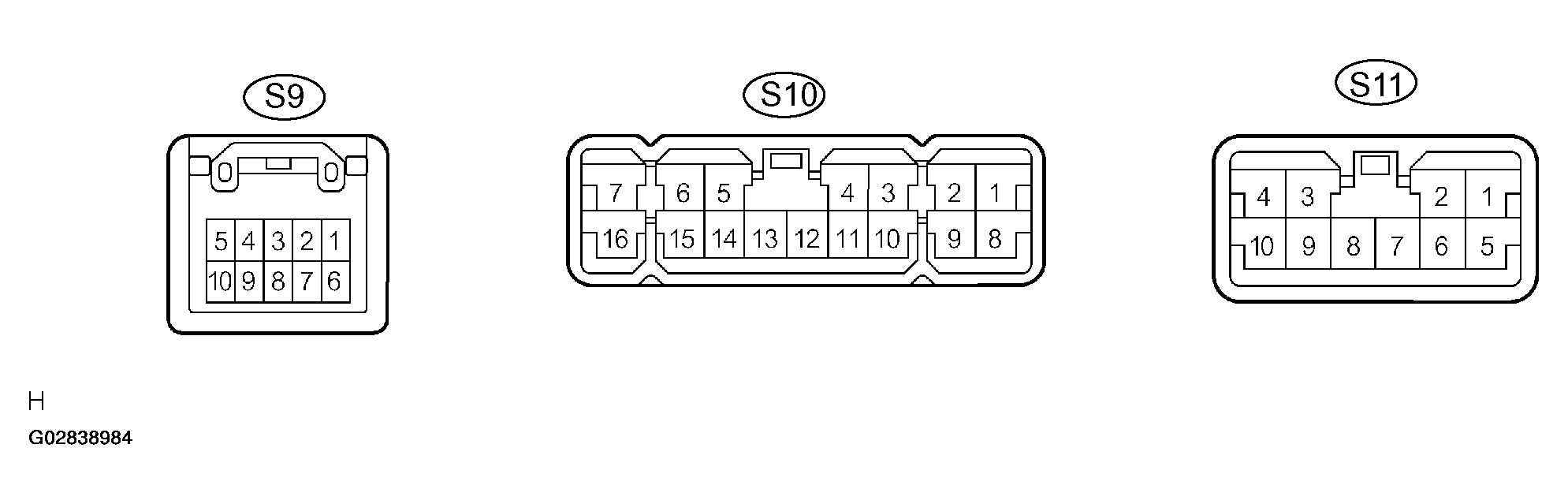

Fig 1: Identifying Terminals Of ECU - Radio And Player (W/ Rear Seat Entertainment System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

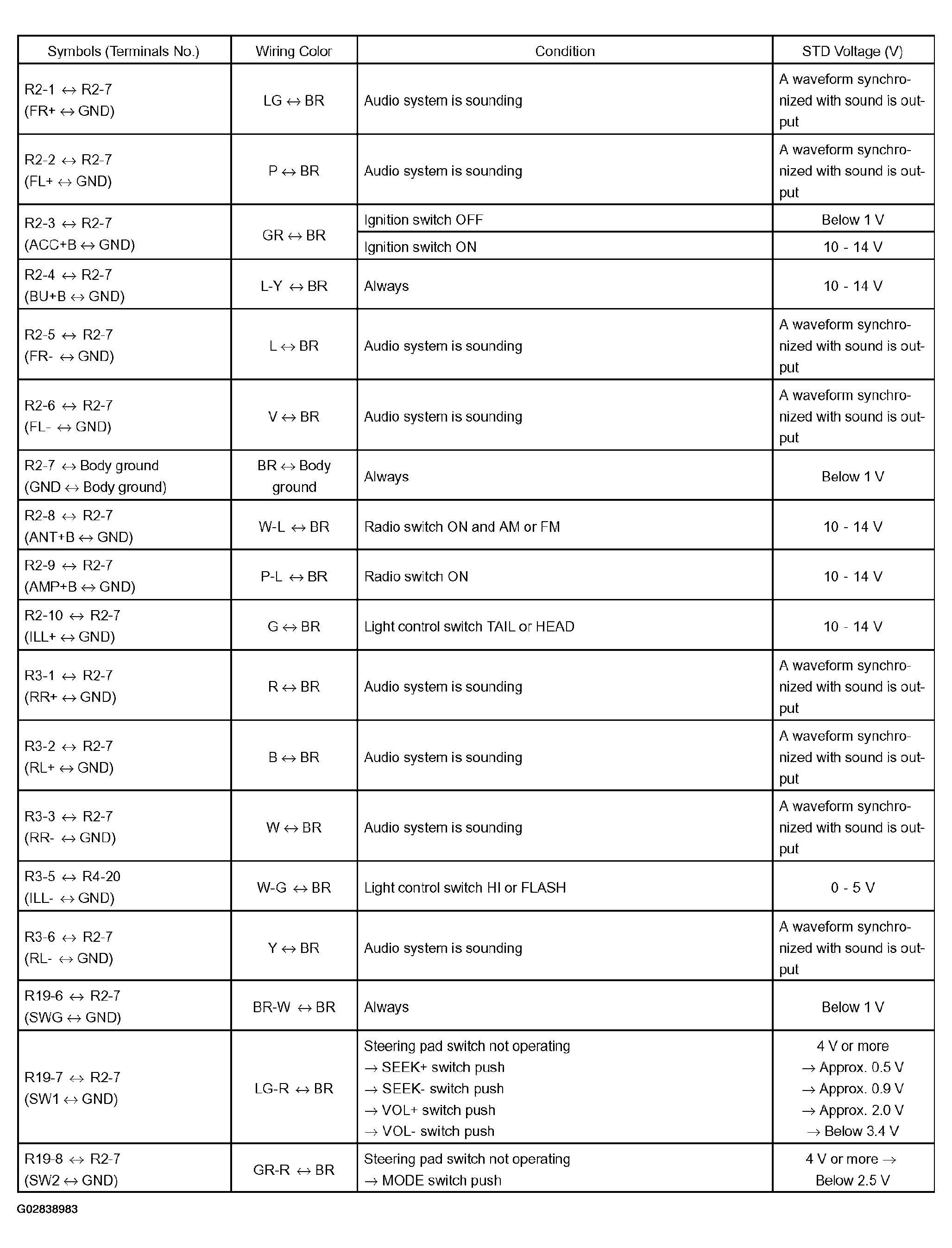

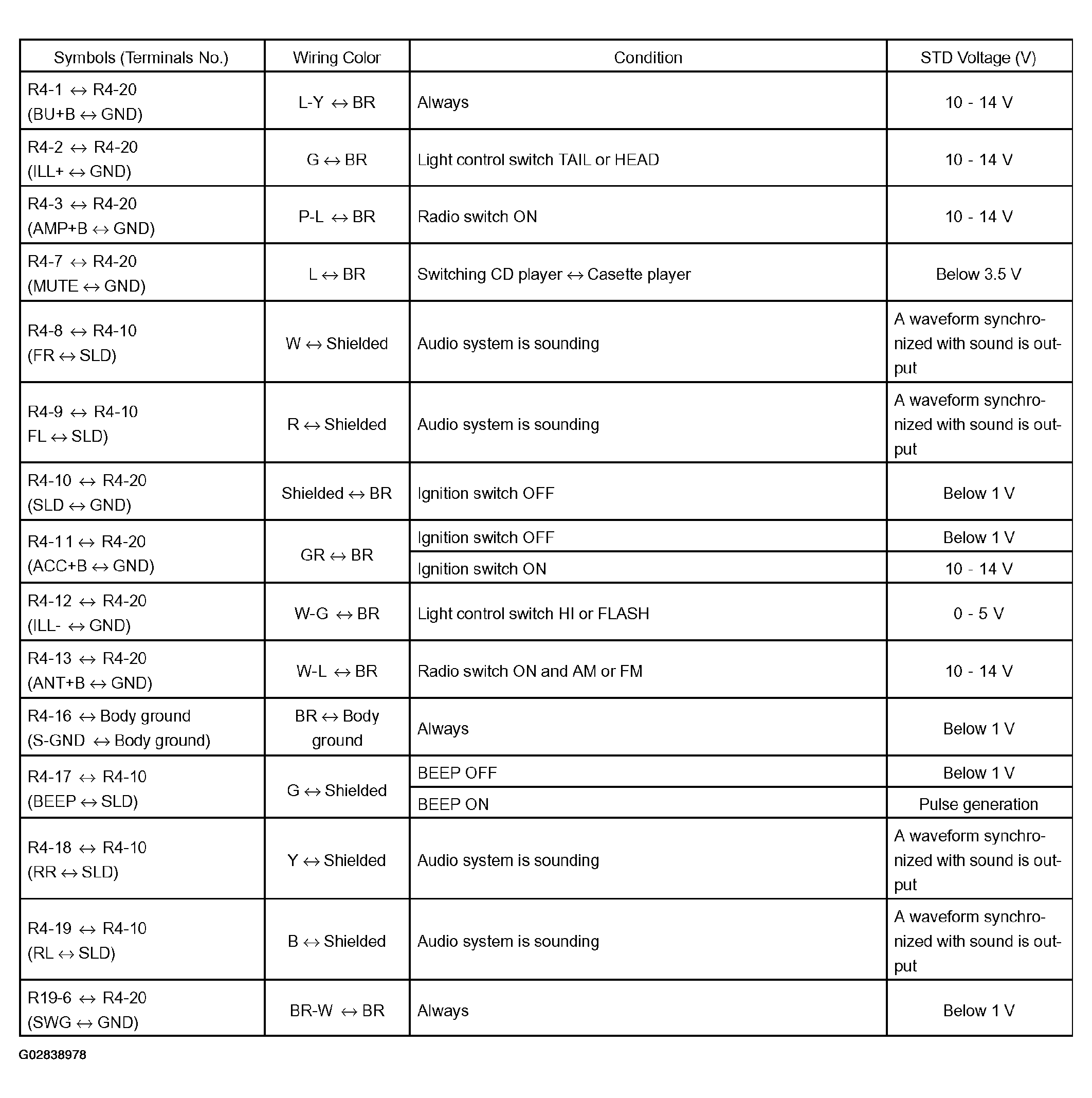

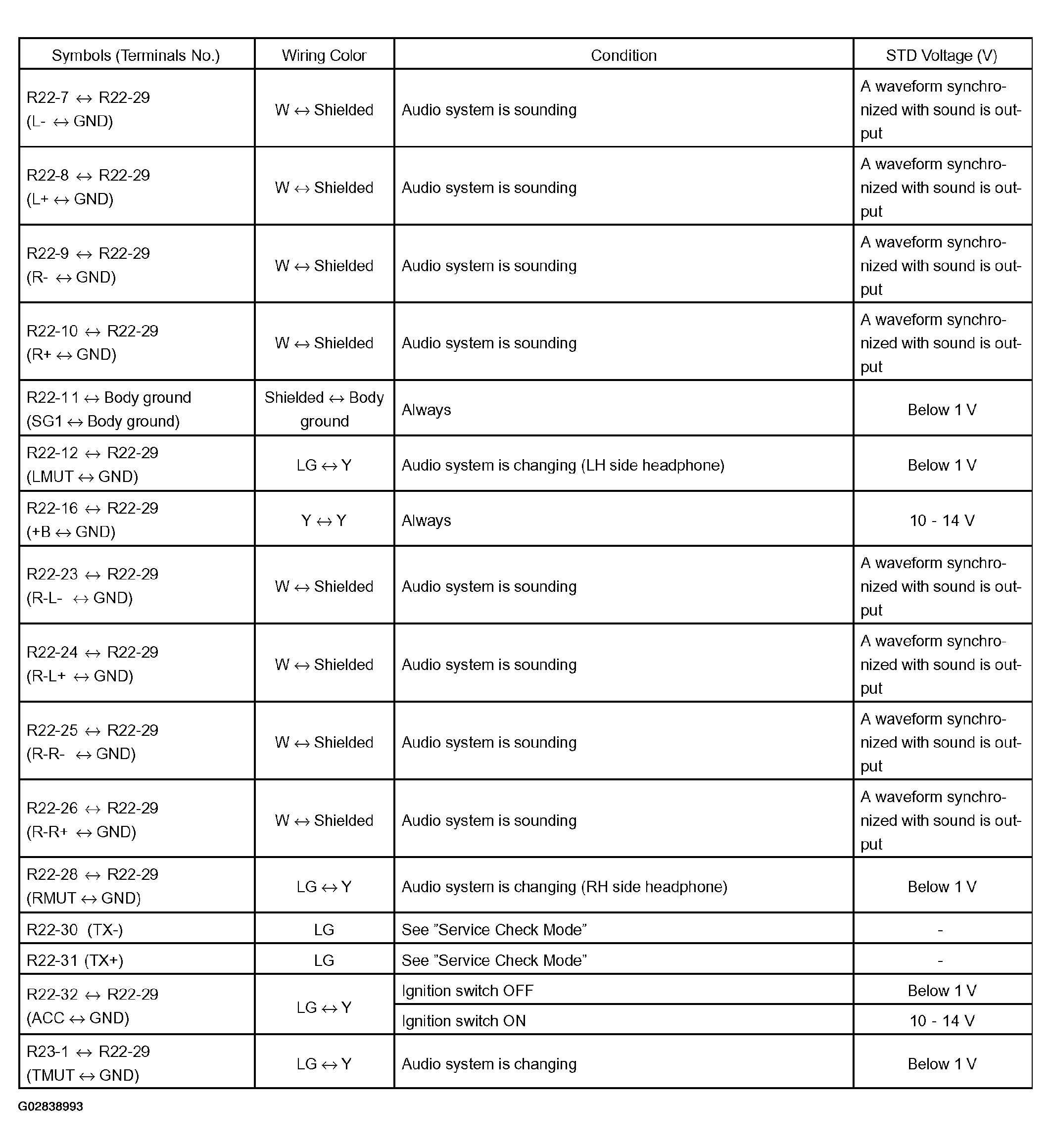

Fig 2: Terminals Specification Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

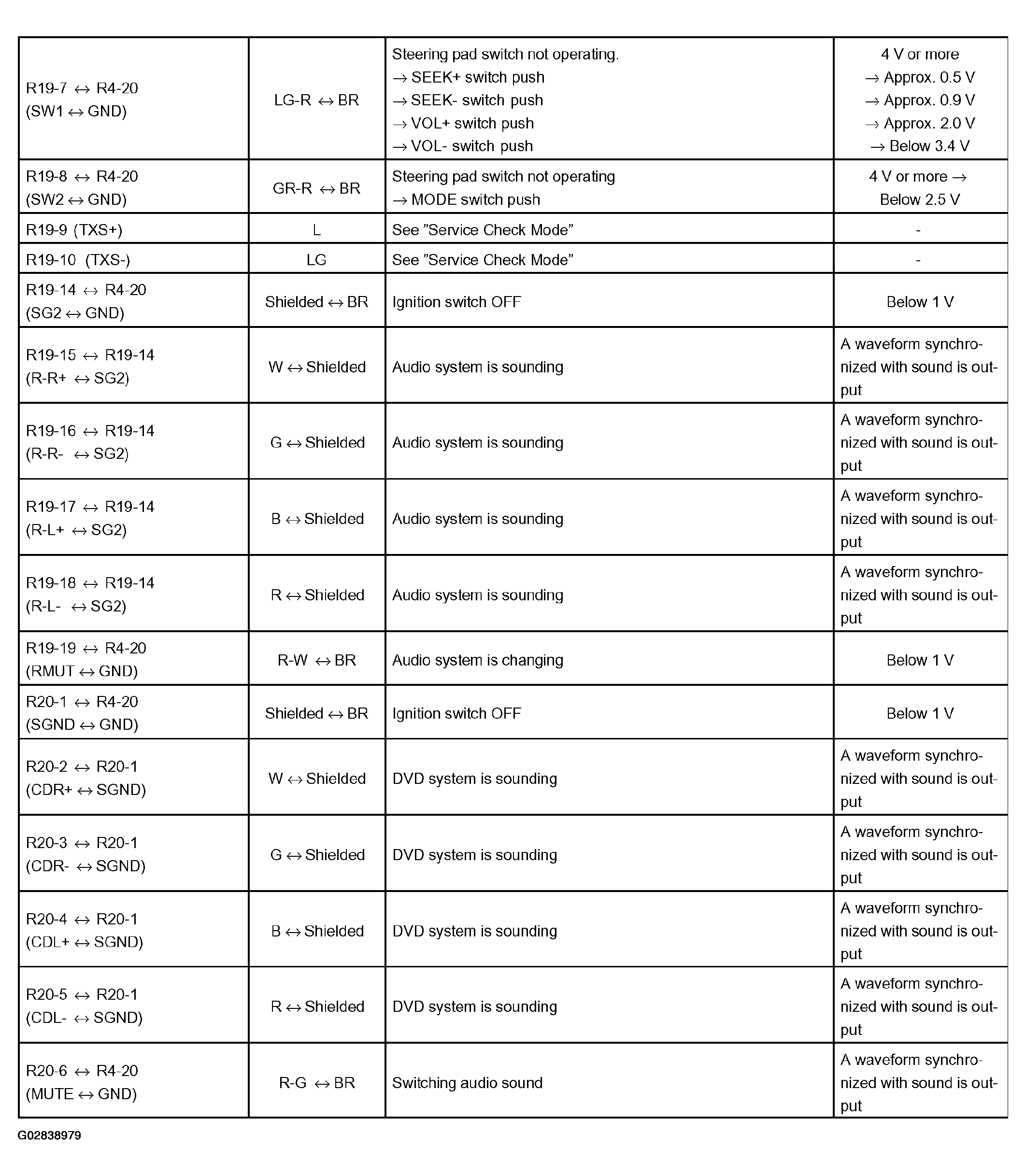

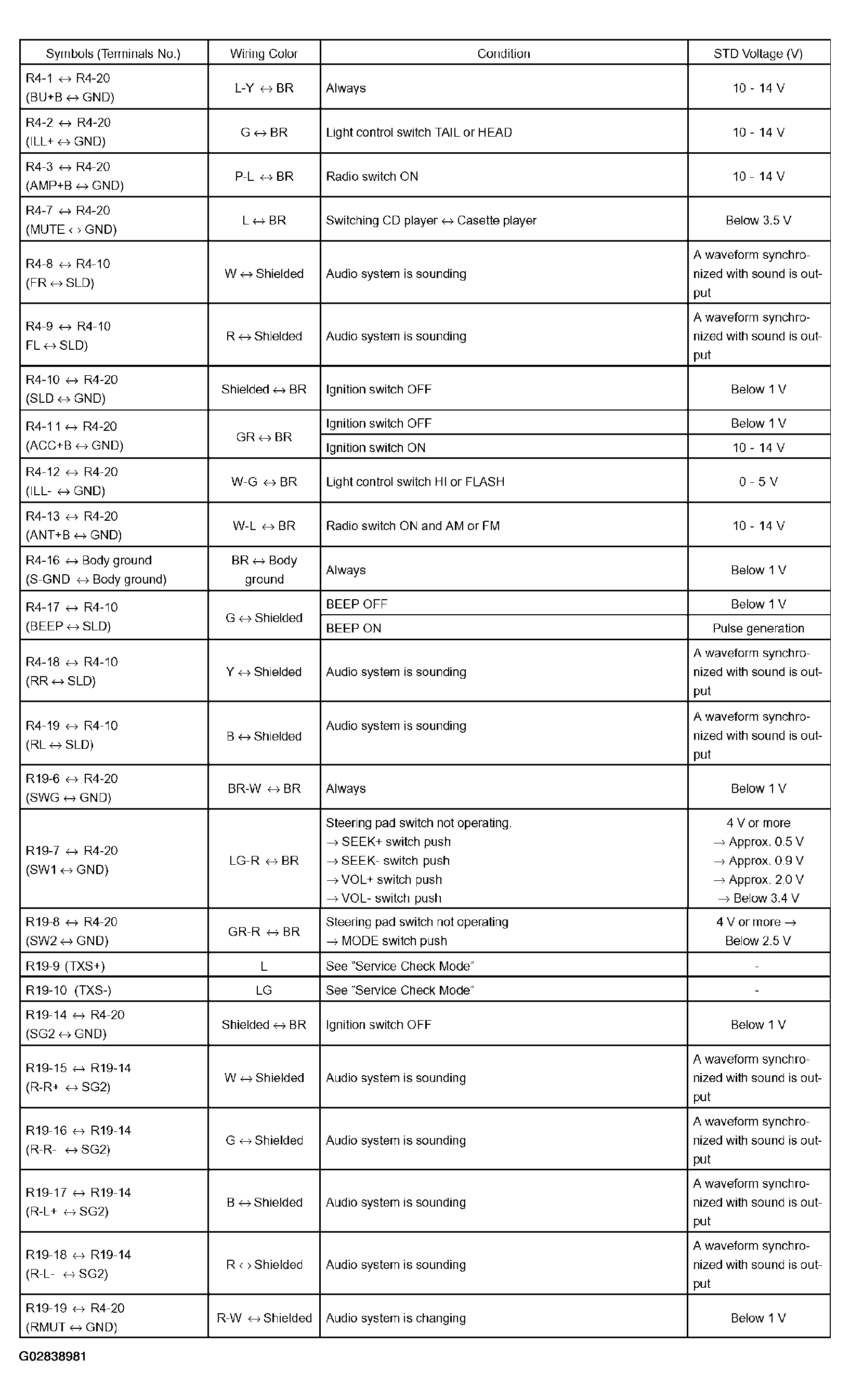

Fig 3: Terminals Specification Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO AND PLAYER (w/ Rear Seat Audio System)

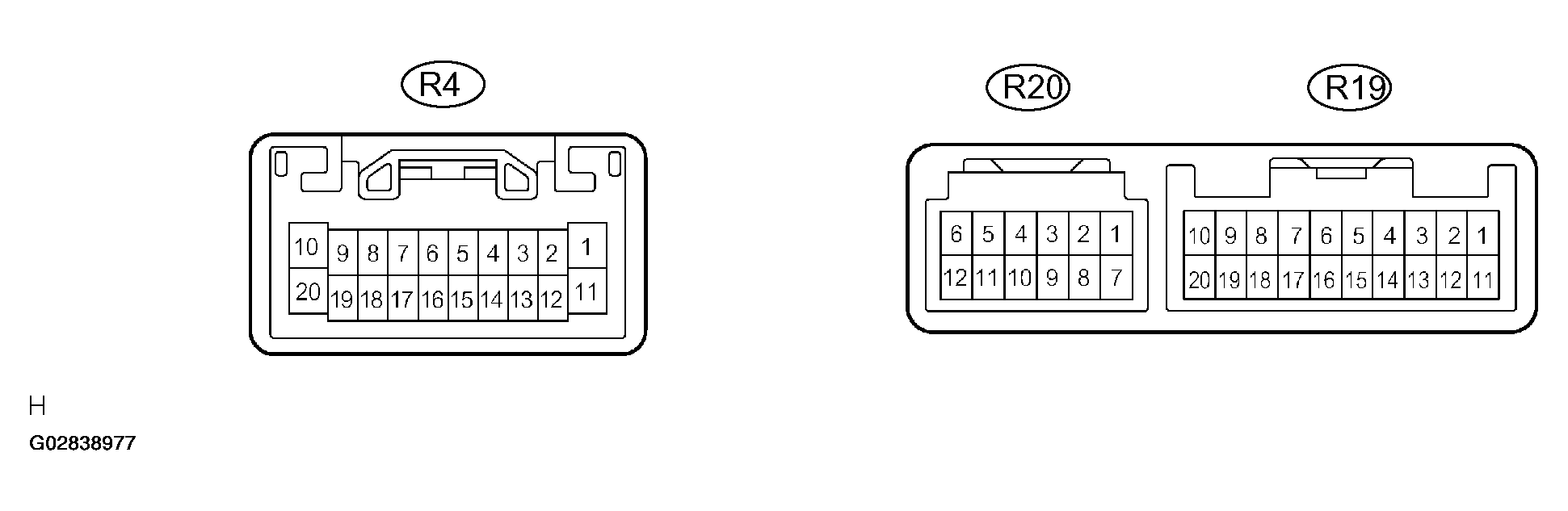

Fig 4: Identifying Terminals Of ECU - Radio And Player (W/ Rear Seat Audio System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO AND PLAYER (6 speaker)

Fig 6: Identifying Terminals Of ECU - Radio And Player (6 Speaker)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER (Front)

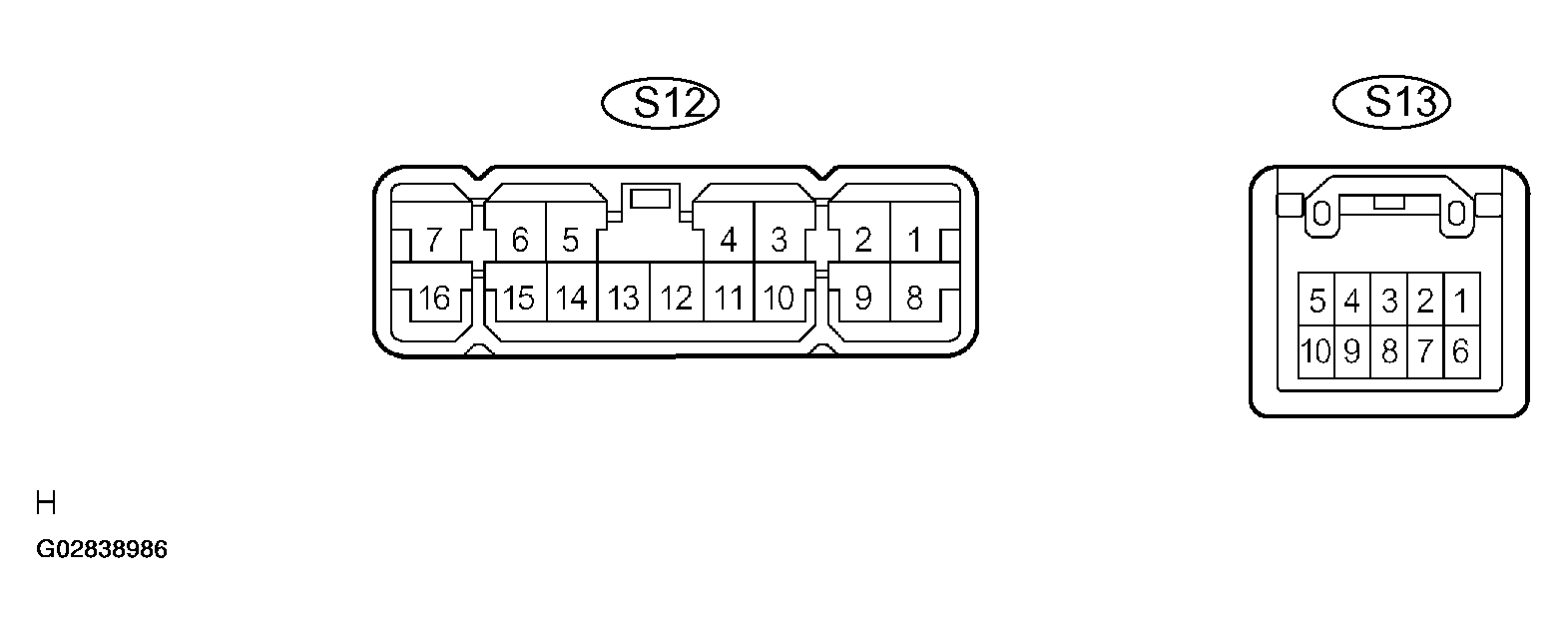

Fig 8: Identifying Terminals Of ECU - Stereo Component Amplifier (Front)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

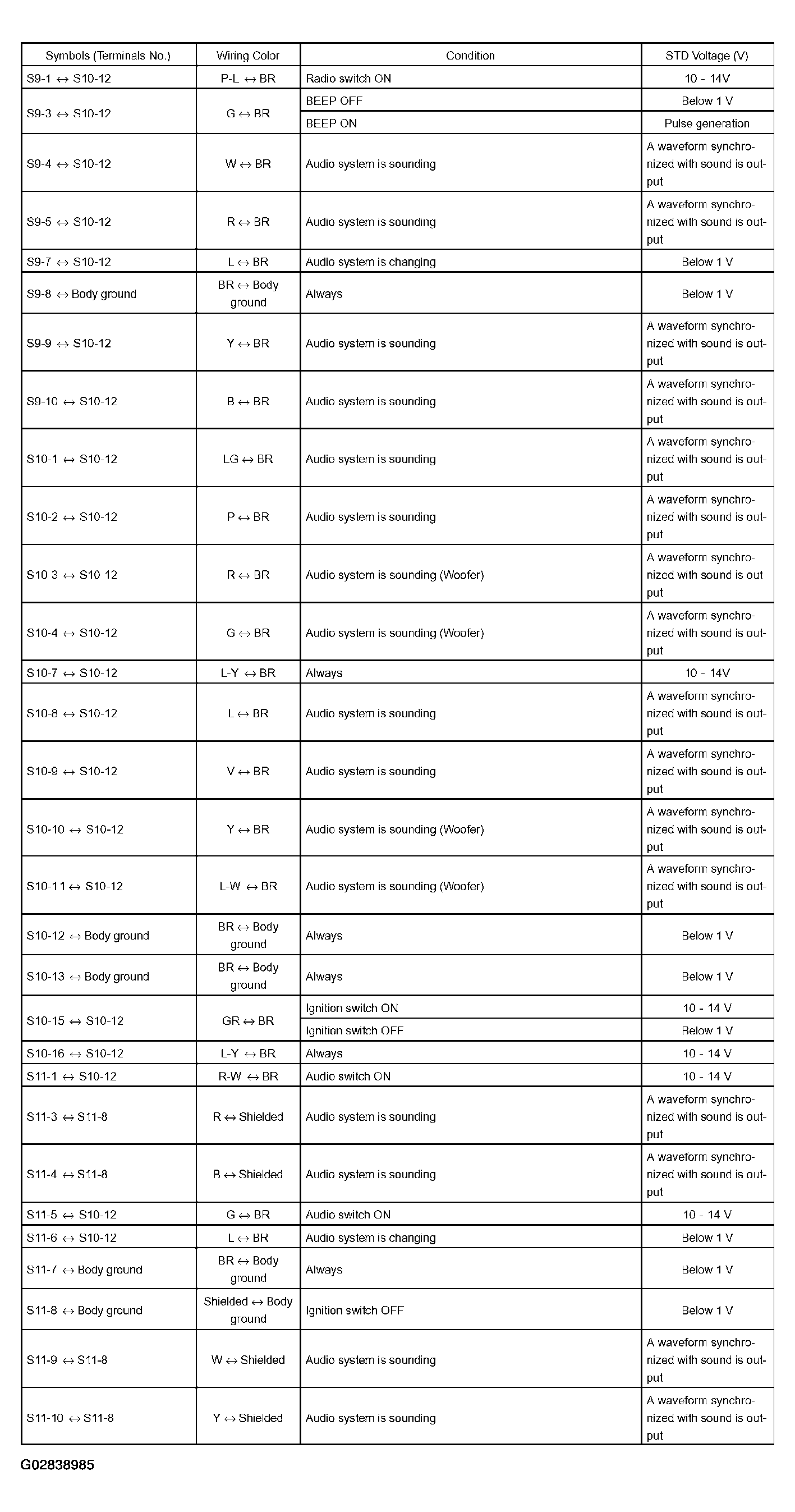

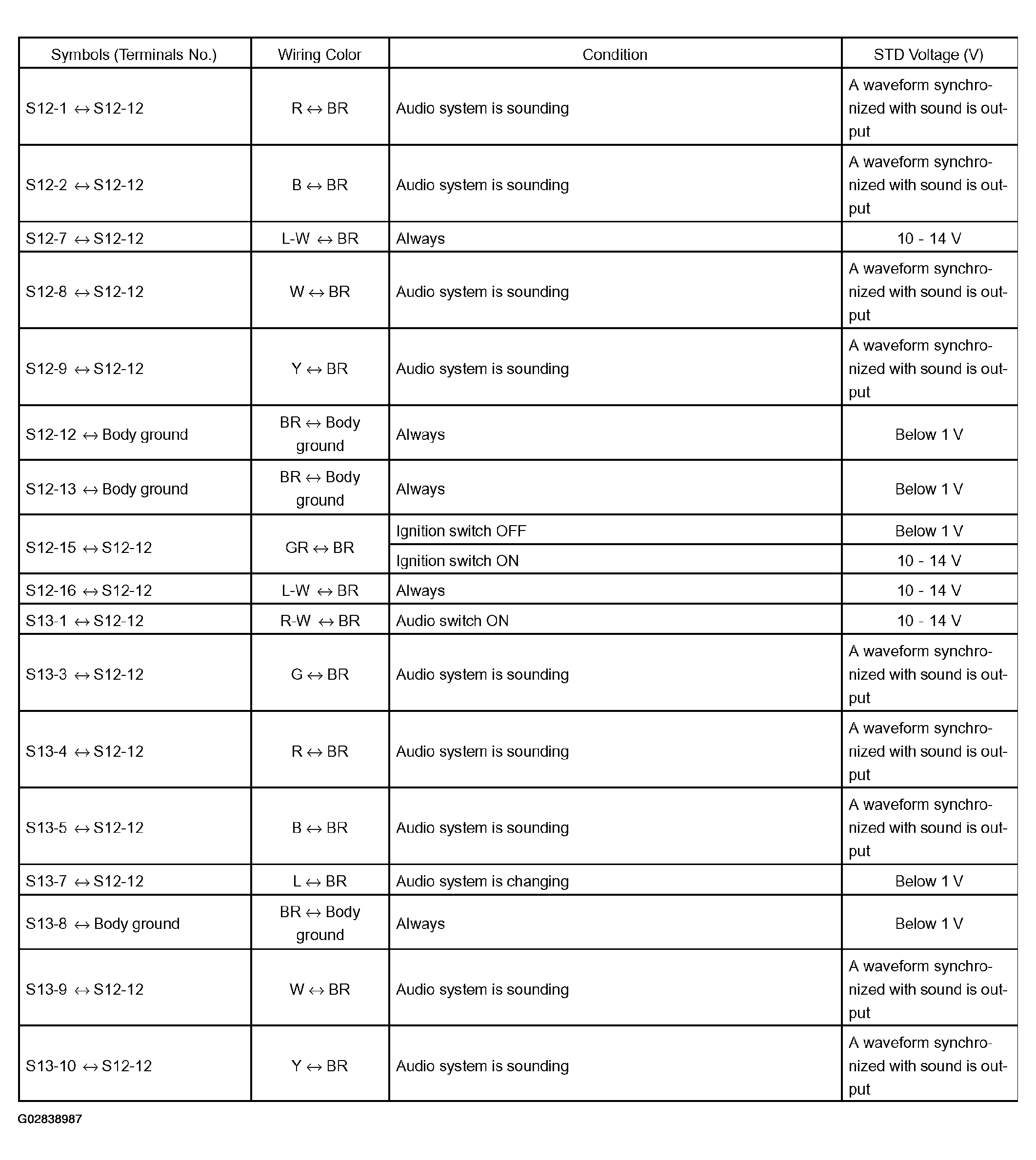

Fig 9: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER (Rear)

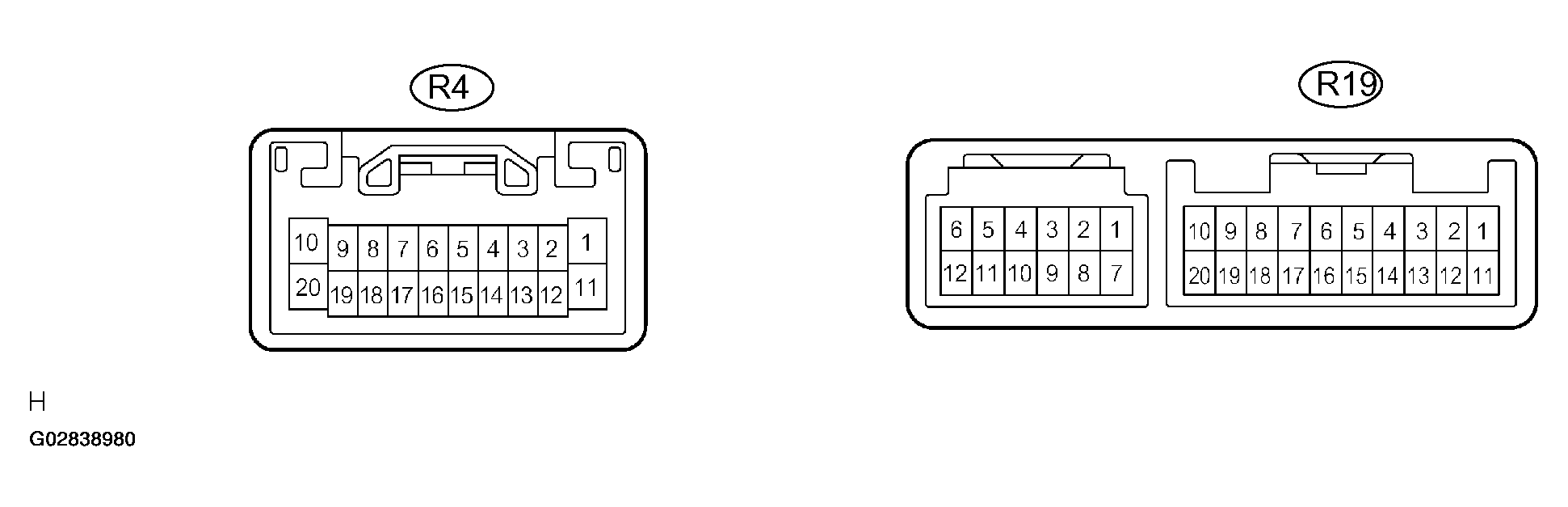

Fig 10: Identifying Terminals Of ECU - Stereo Component Amplifier (Rear)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

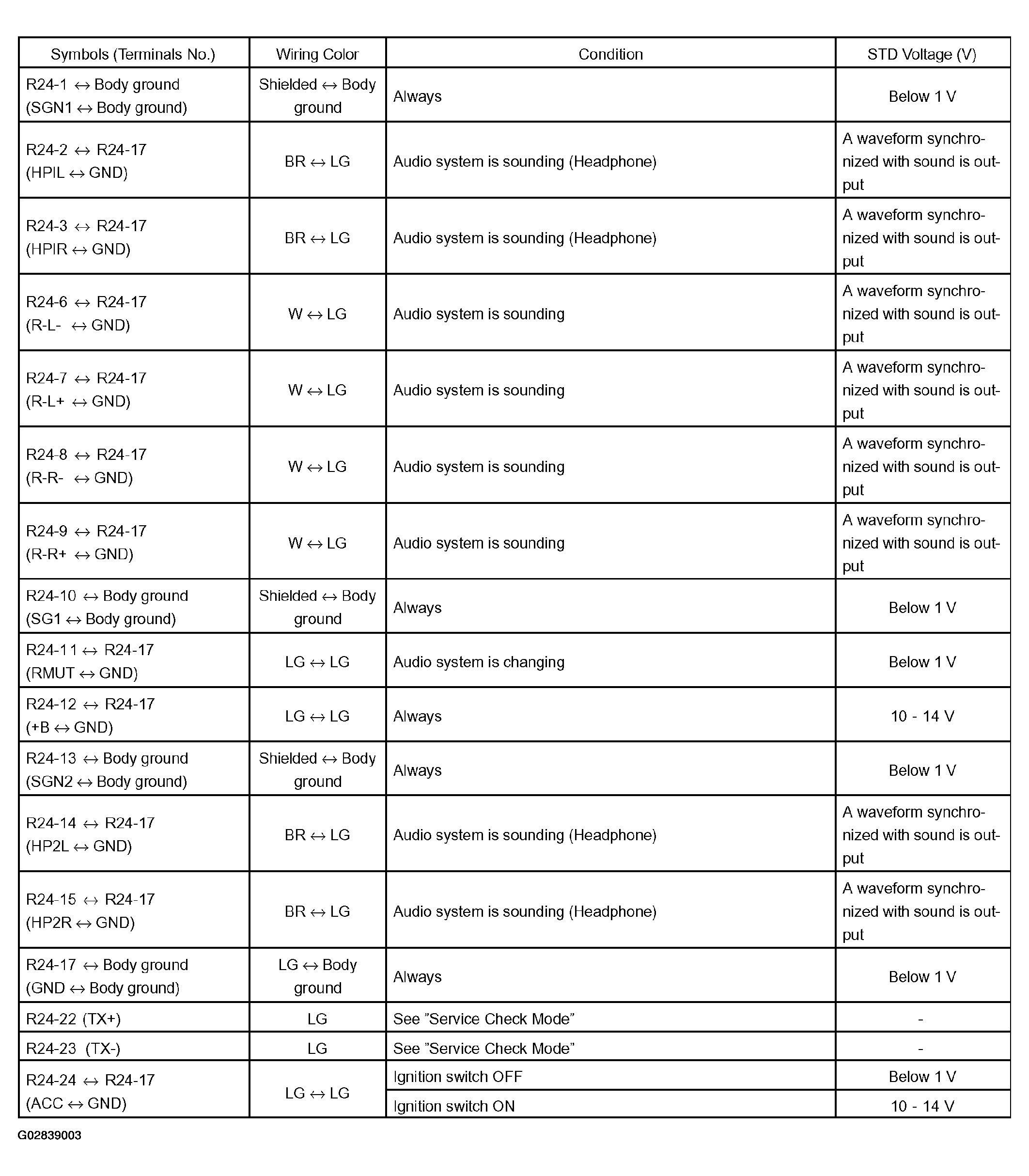

Fig 11: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR DISPLAY

Fig 12: Identifying Terminals Of ECU - Rear Display
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

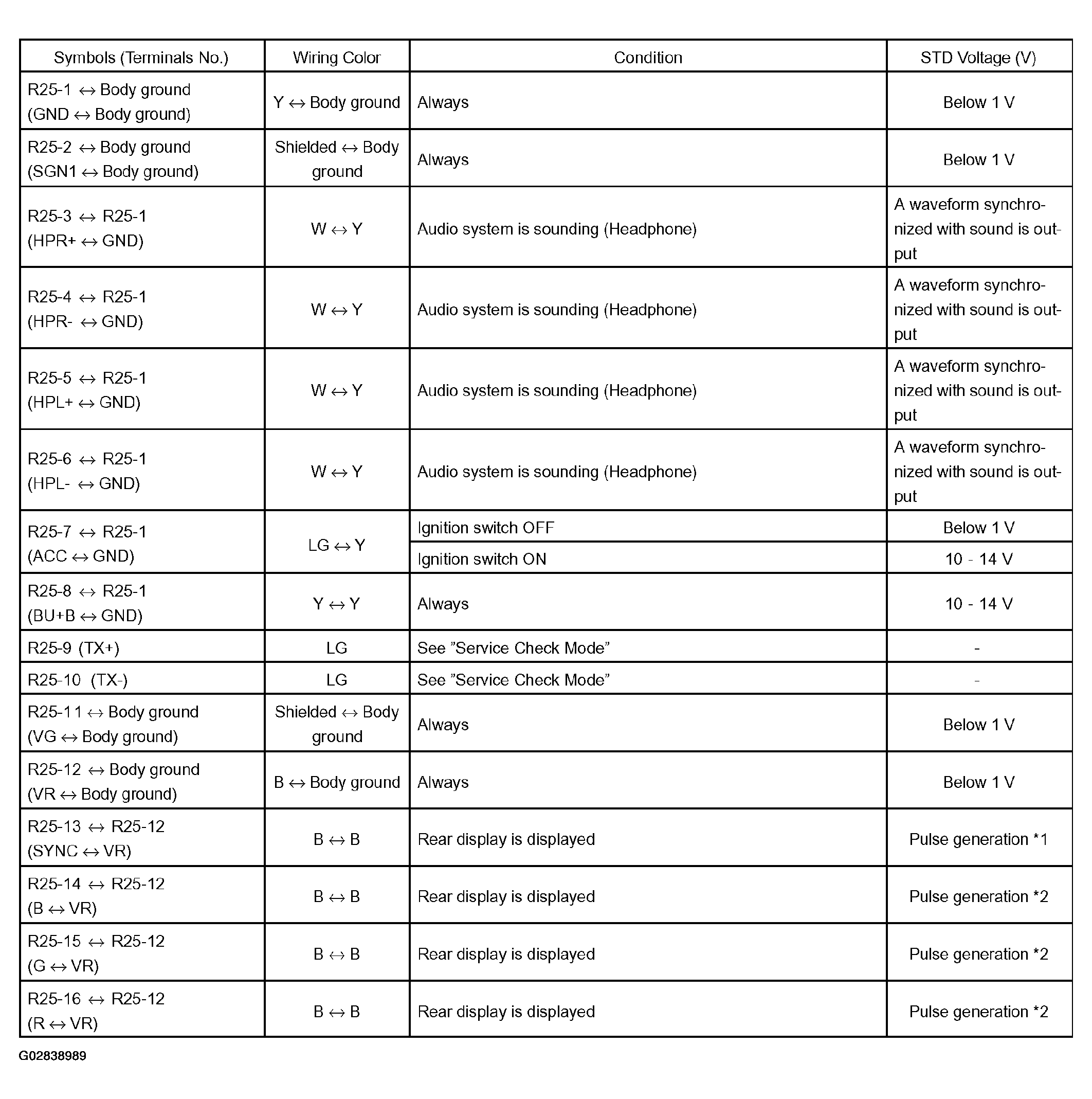

Fig 13: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

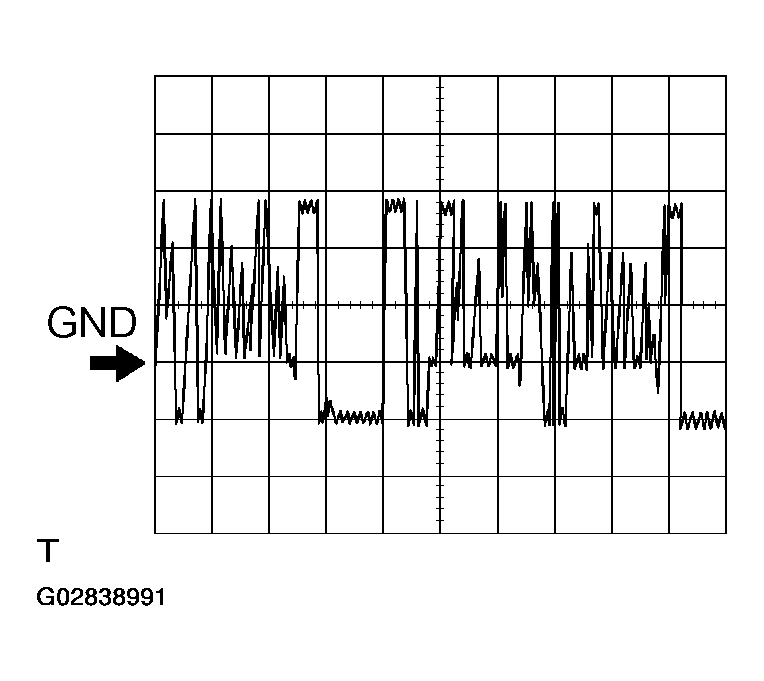

- *1: Oscilloscope wave
  Terminal to be measured: SYNC - GND1

  Setting for measurement: 500 mV/DIV10- mues/DIV

  Fig 14: Identifying Oscilloscope Wave (Rear Display) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- *2: Oscilloscope wave
  Terminal to be measured: R, G, B - GND1

  Setting for measurement: 200 mV/DIV10- mues/DIV
Fig 15: Identifying Oscilloscope Wave (Rear Display) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RSE ECU

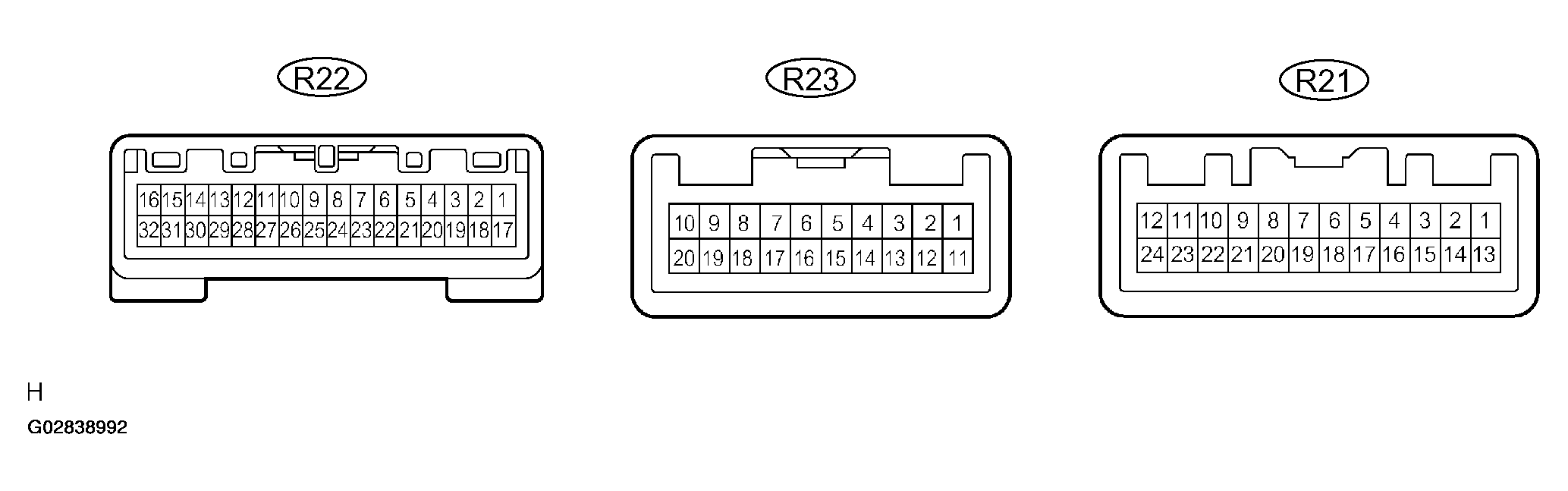

Fig 16: Identifying Terminals Of ECU - RSE ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

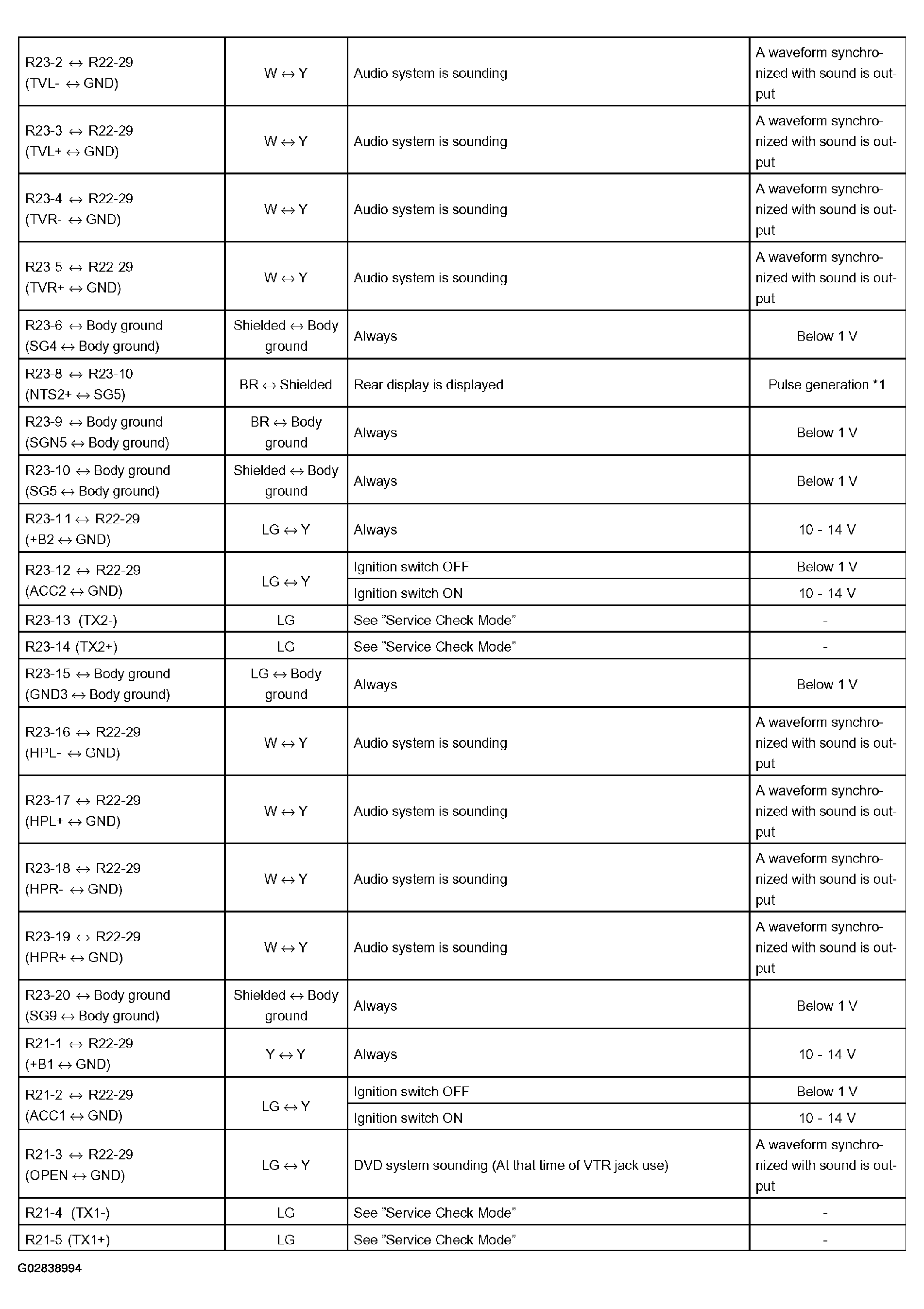

Fig 17: Terminals Specification Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

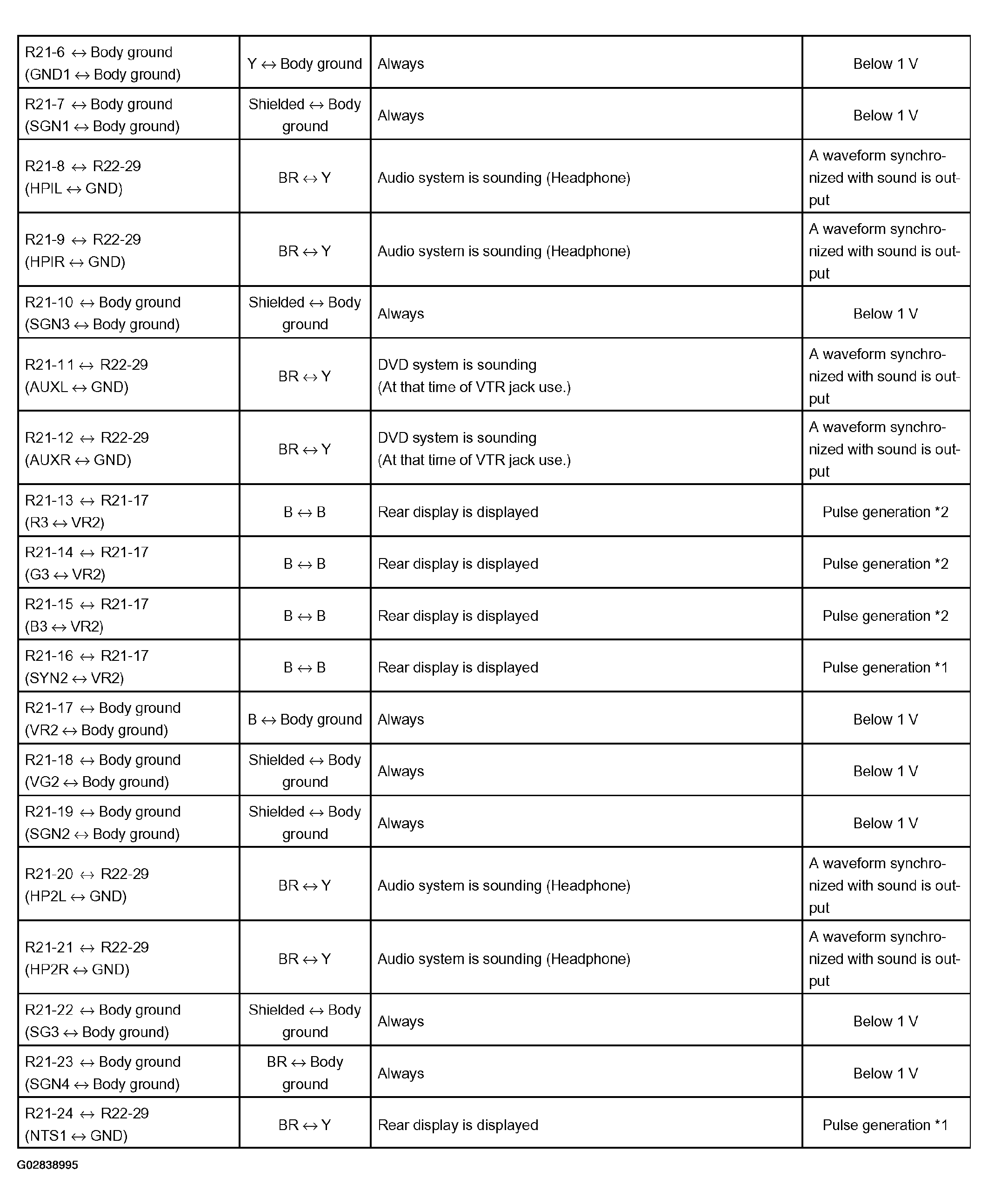

Fig 18: Terminals Specification Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Terminals Specification Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- *1: Oscilloscope wave
  Terminal to be measured: SYNC - GND1

  Setting for measurement: 500 mV/DIV10- mues/DIV

  Fig 20: Identifying Oscilloscope Wave (RSE ECU) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- *2: Oscilloscope wave
  Terminal to be measured: R, G, B - GND1

  Setting for measurement: 200 mV/DIV10- mues/DIV
Fig 21: Identifying Oscilloscope Wave (RSE ECU) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DVD PLAYER

Fig 22: Identifying Terminals Of ECU - DVD Player
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

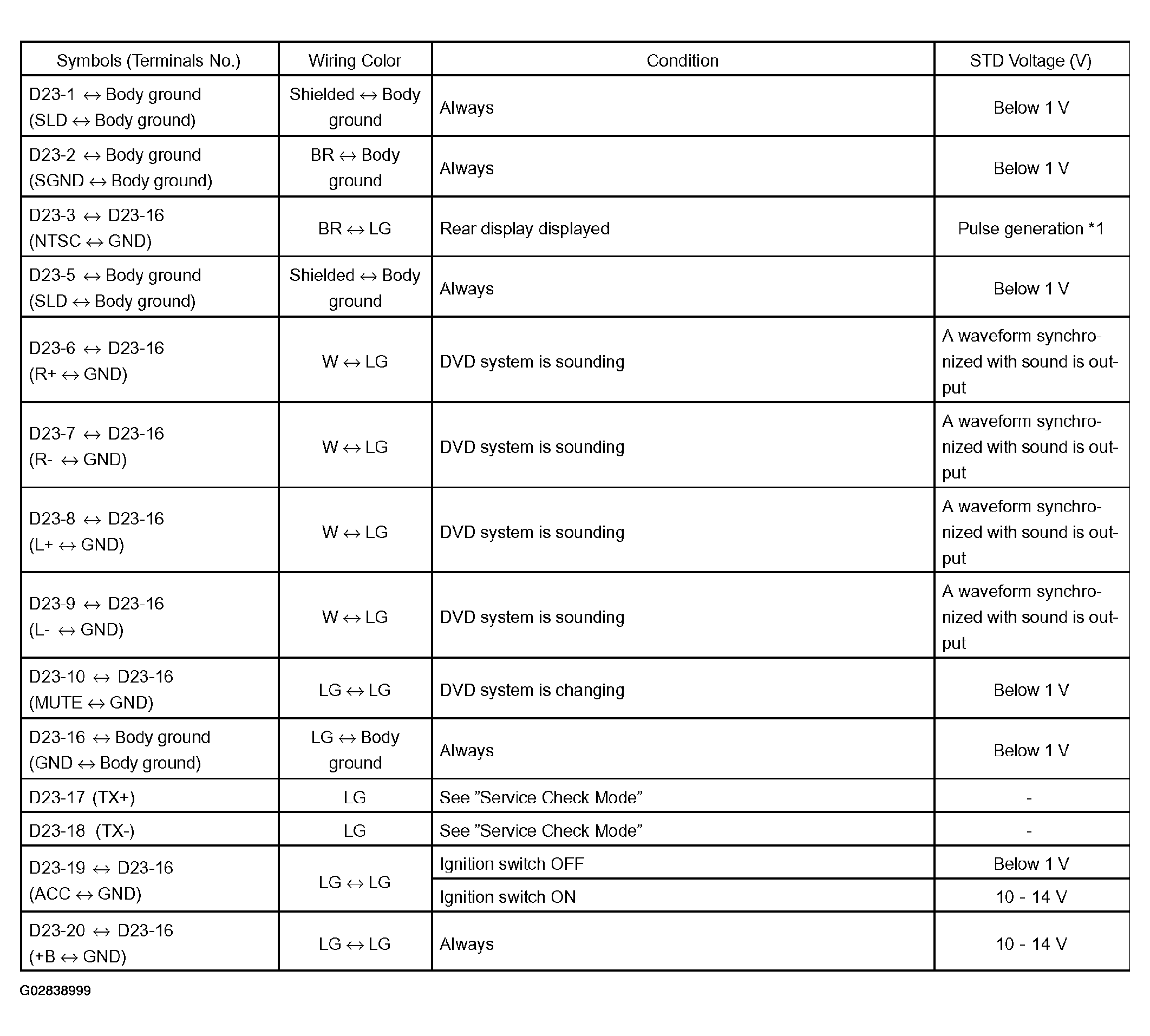

Fig 23: Terminals Specification Char
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- *1: Oscilloscope wave
  Terminal to be measured: SYNC - GND1

  Setting for measurement: 500 mV/DIV10- mues/DIV

  Fig 24: Identifying Oscilloscope Wave (DVD Player) (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- *2: Oscilloscope wave
  Terminal to be measured: R, G, B - GND1

  Setting for measurement: 200 mV/DIV10- mues/DIV
Fig 25: Identifying Oscilloscope Wave (DVD Player) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RSA PANEL

Fig 26: Identifying Terminals Of ECU - RSA Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Terminals Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
