Section 567 (Power Steering Vane Pump): Installation

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PS VANE PUMP ASSEMBLY
1. Install the PS vane pump assembly with the stud bolt.
  Torque: 22 N.m (220 kgf.cm, 16 ft.lbf)
2. Install the 2 bolt and nut.
  Torque: 44 N.m (450 kgf.cm, 33 ft.lbf)
INSTALL PRESSURE FEED TUBE
1. Connect the pressure feed tube.
2. Install a new gasket and the union bolt on the pressure feed tube.

  Fig 1: Installing Pressure Feed Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Make sure that the stopper of the pressure feed tube touches the PS vane pump body as shown in the illustration, then torque the union bolt.

  Torque: 46.5 N.m (475 kgf.cm, 34 ft.lbf)
CONNECT RETURN HOSE
Connect the return hose with the clip.
CONNECT 2 VACUUM HOSES
Connect the 2 vacuum hoses and install the 2 clips.
INSTALL DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and install the belt.

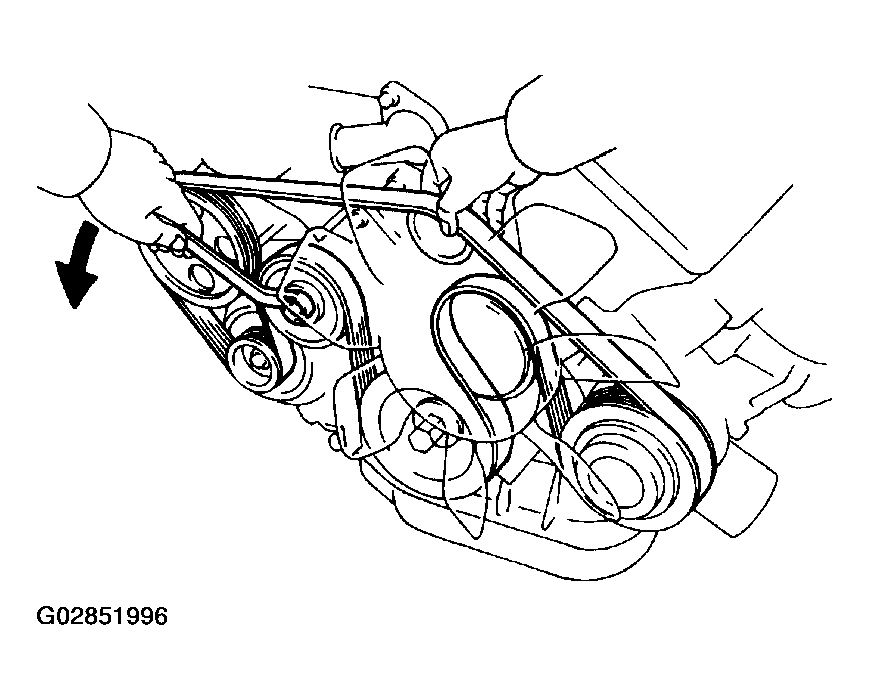

Fig 2: Installing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
1. Install the air cleaner assembly with air cleaner hose and the 3 bolts.
2. Install the clamp.
3. Connect the hoses.
4. Connect the MAF meter connector.
BLEED POWER STEERING SYSTEM (See BLEEDING )
