Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

SERVICE CHECK MODE (STEREO COMPONENT AMPLIFIER ASSY)

Perform service check.

Start the diagnostic system and read the check result for the stereo component amplifier assy.

Standard:

SPECIFIED CONDITION

A	"NCON" is displayed or no display (DSP AMP)
B	"GOOD" is displayed

B: REPLACE RADIO RECEIVER ASSY (SEE REPLACEMENT )
A: Go to Next Step.

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSY - STEREO COMPONENT AMPLIFIER ASSY)

Disconnect the radio receiver assy R7 connector and stereo component amplifier assy S11 connector.

Measure the resistance according to the values in SPECIFIED CONDITION .

Standard:

SPECIFIED CONDITION

Tester connection

Specified condition

TX+ (S11-8) (⁽¹⁾) - TX+ (R7-5)

Below 1 Ω

TX- (S11-7) (⁽¹⁾) - TX- (R7-15)

Below 1 Ω

TX+ (S11-20) (⁽²⁾) - TX+ (R7-5)

Below 1 Ω

TX- (S11-19) (⁽²⁾) - TX- (R7-15)

Below 1 Ω

TX+ (R7-5) - Body ground

10 kΩ or higher

TX- (R7-15) - Body ground

10 kΩ or higher

⁽¹⁾

Coupe

⁽²⁾	Convertible

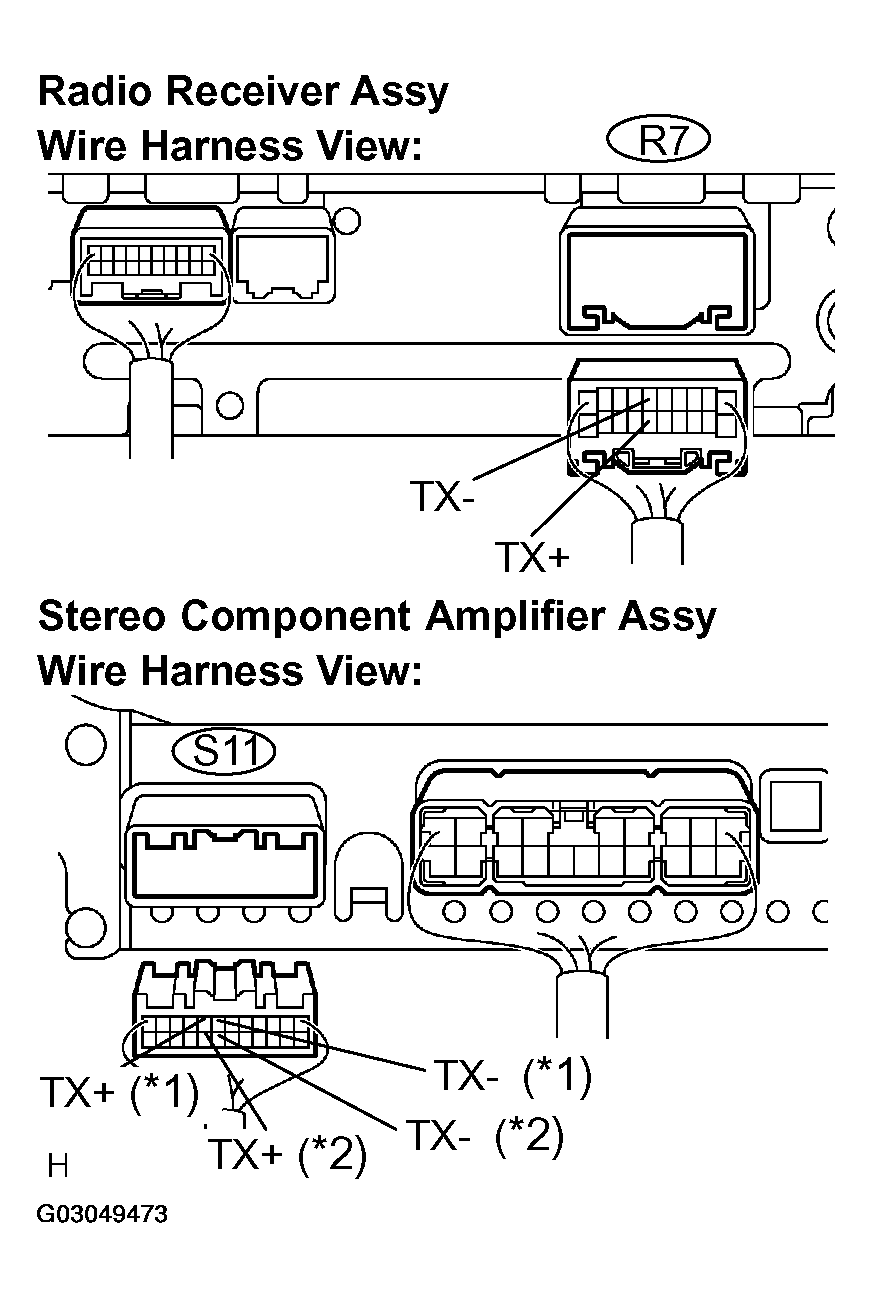

Fig 1: Checking Harness & Connector (Radio Receiver Assy - Stereo Component Amplifier Assy)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE STEREO COMPONENT AMPLIFIER ASSY (SEE REPLACEMENT )
