System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

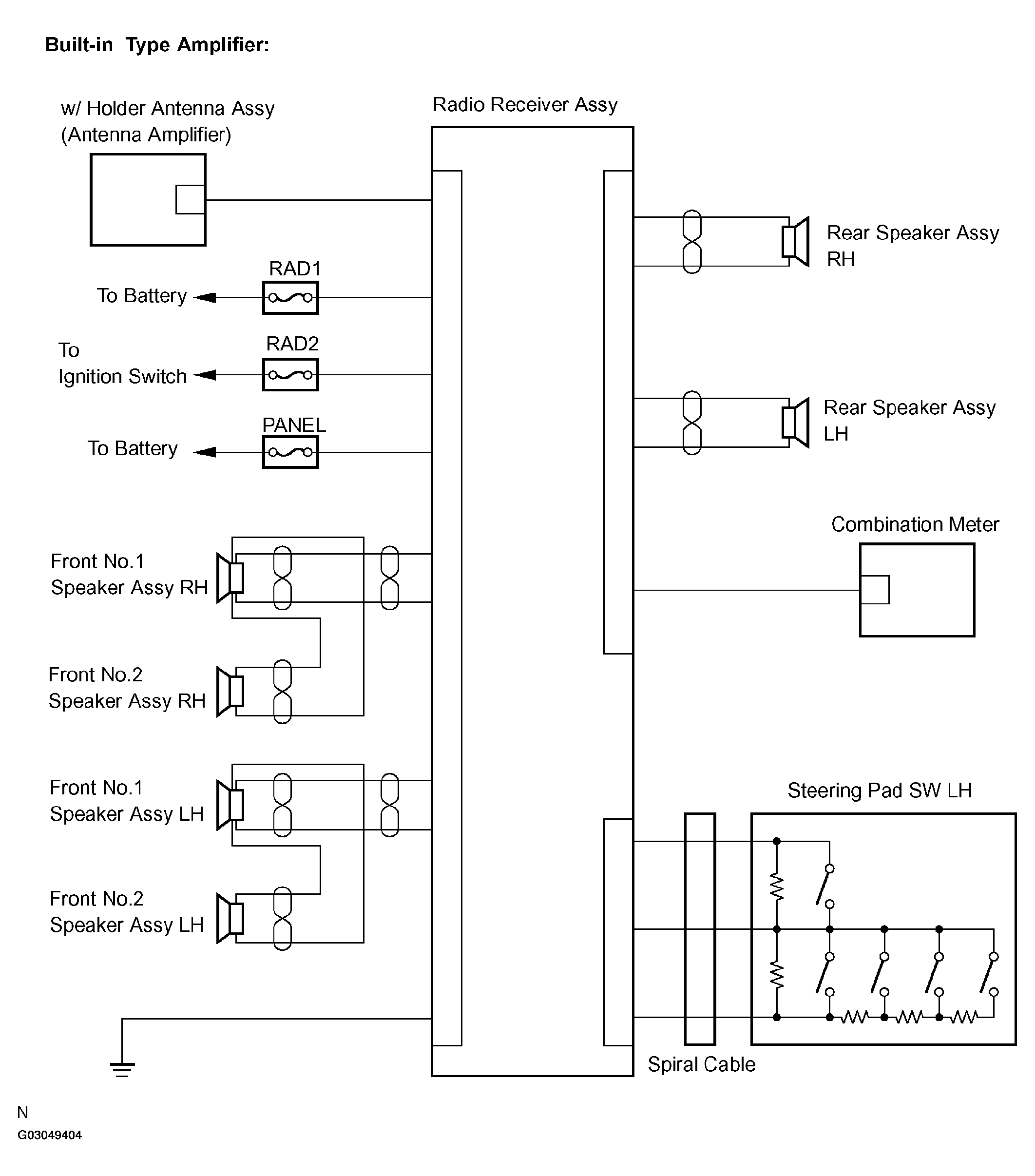

Fig 1: Audio System Diagram - Built In Type Amplifier

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

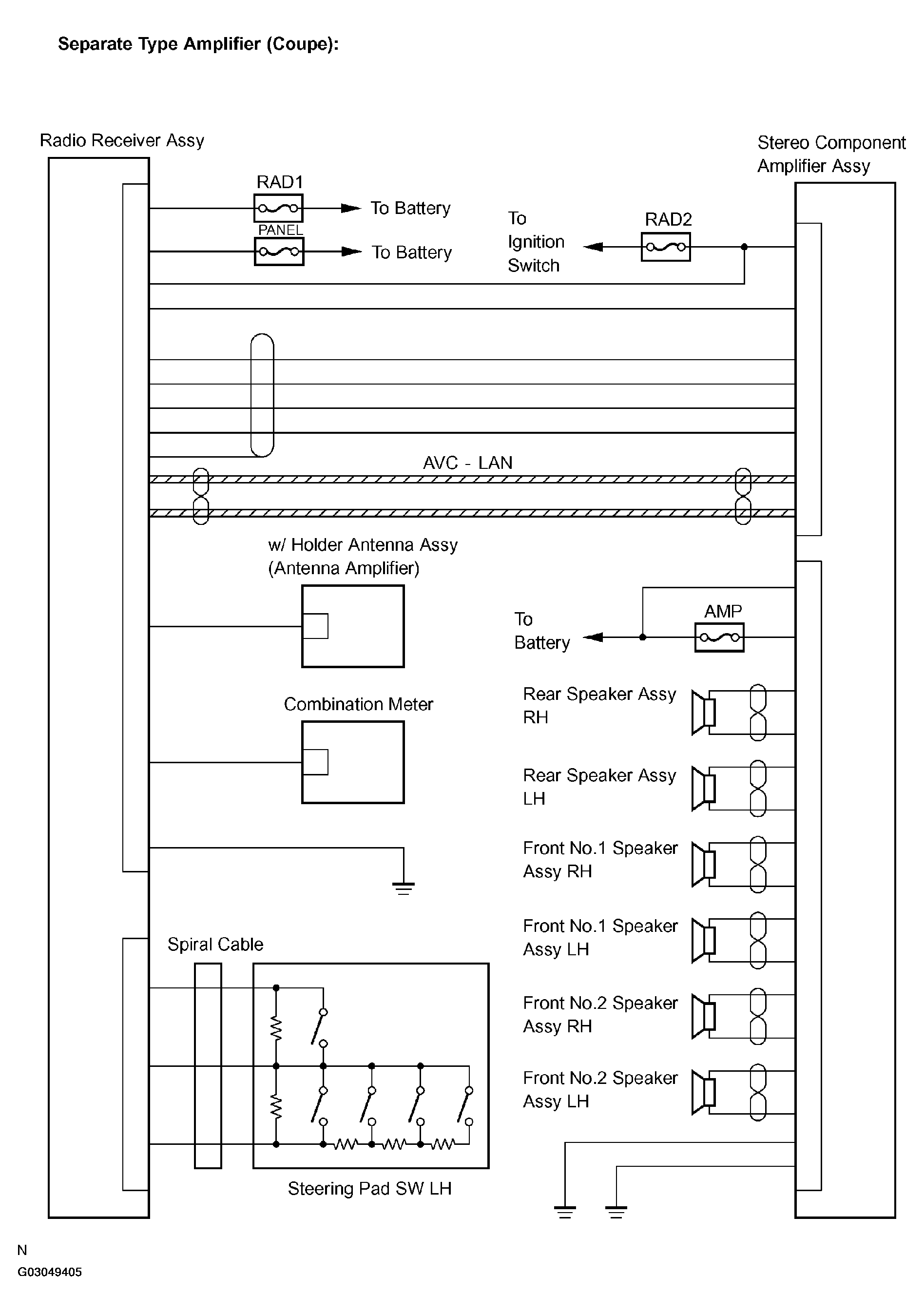

Fig 2: Audio System Diagram - Separate Type Amplifier (Coupe)

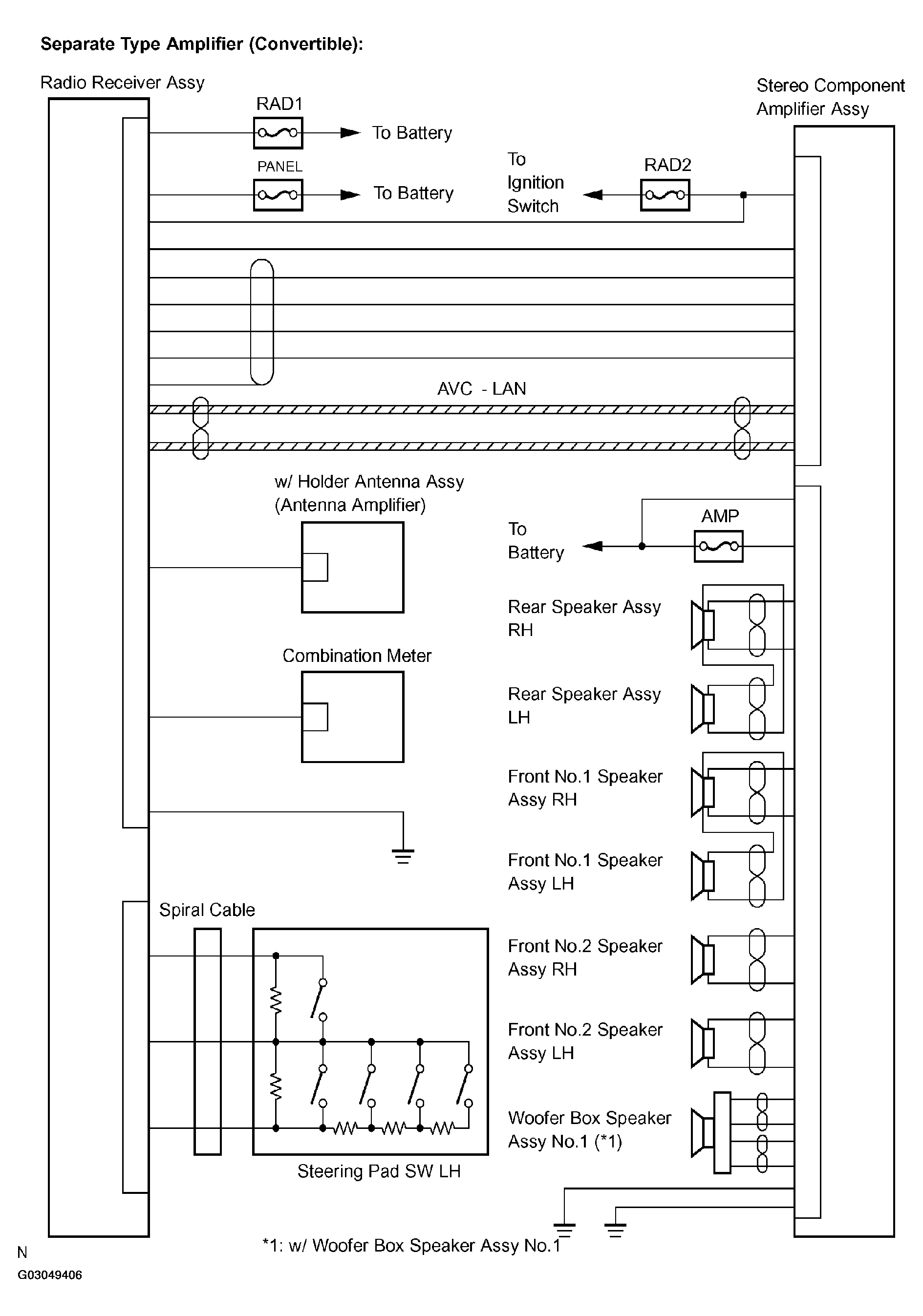

Fig 3: Audio System Diagram - Separate Type Amplifier (Convertible)
