Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY (SEPARATE TYPE AMPLIFIER)

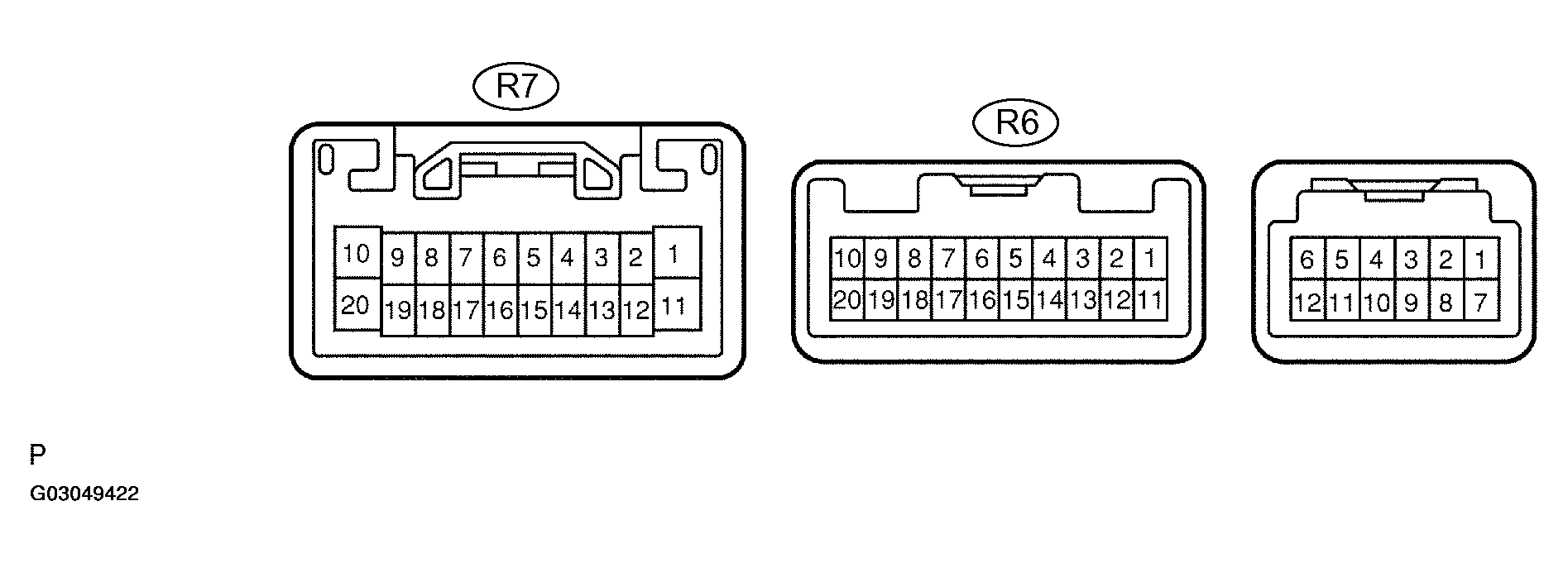

Fig 1: Identifying Radio Receiver Assy Terminals (Separate Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

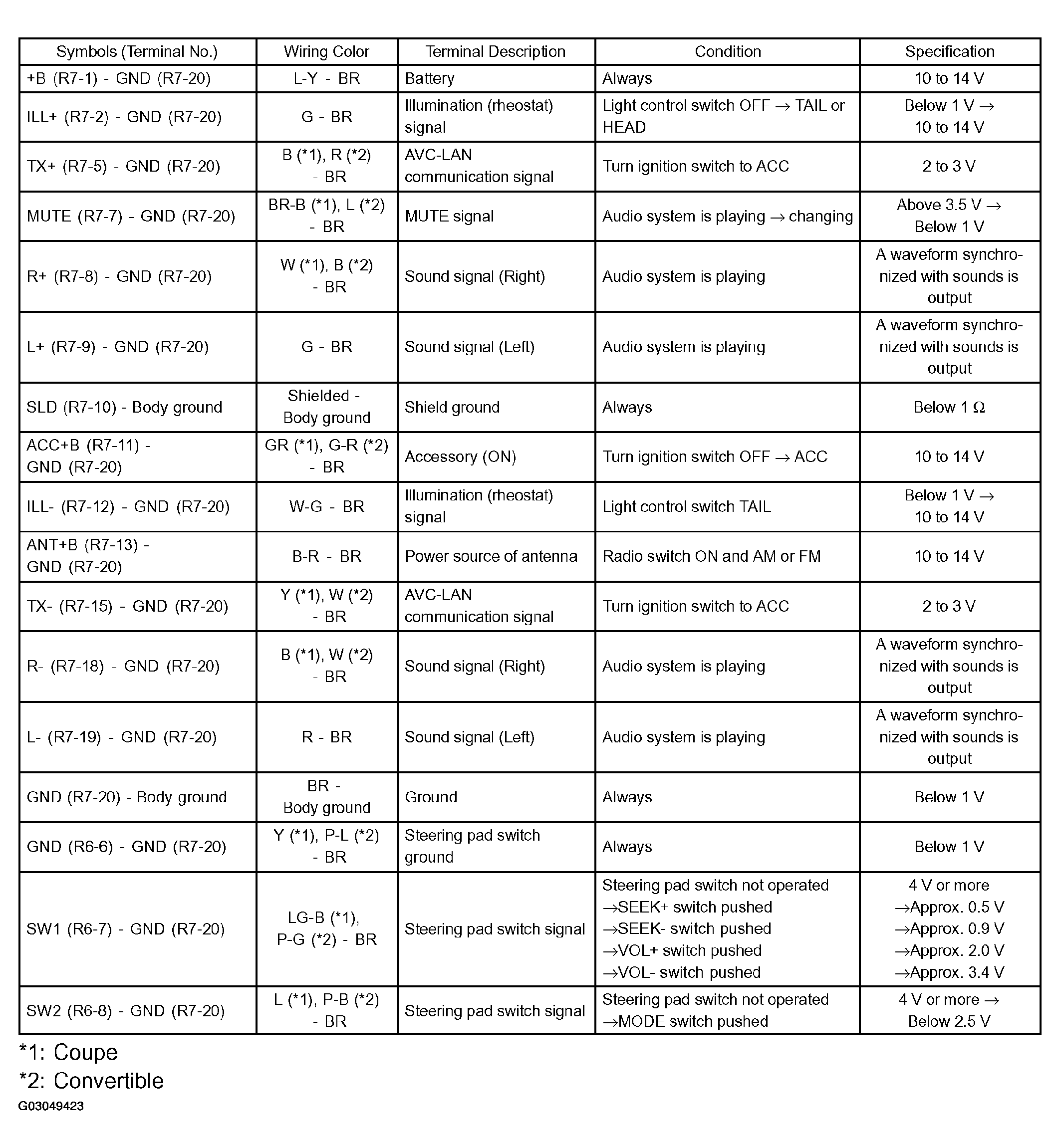

Fig 2: Radio Receiver Specifications Table (Separate Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (BUILT-IN TYPE AMPLIFIER)

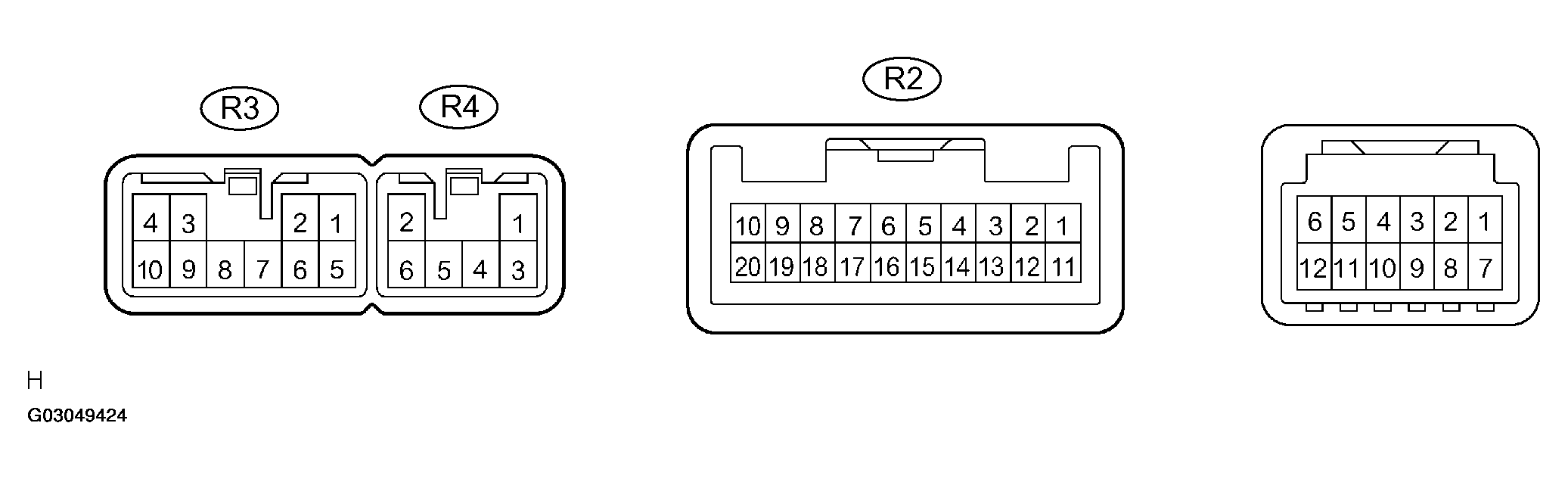

Fig 3: Identifying Radio Receiver Assy Terminals (Built-In Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

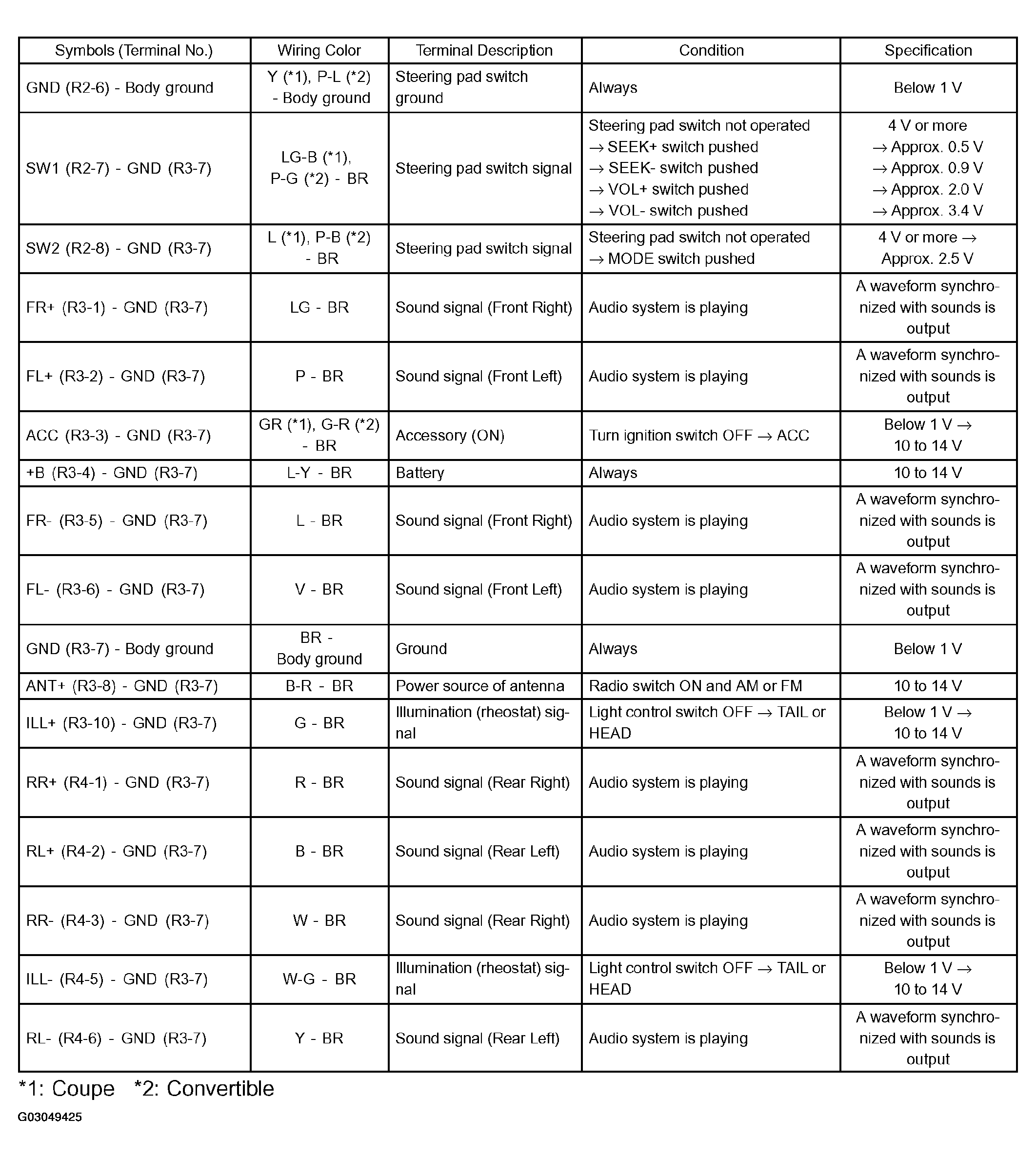

Fig 4: Radio Receiver Specifications Table (Built-In Type Amplifier)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

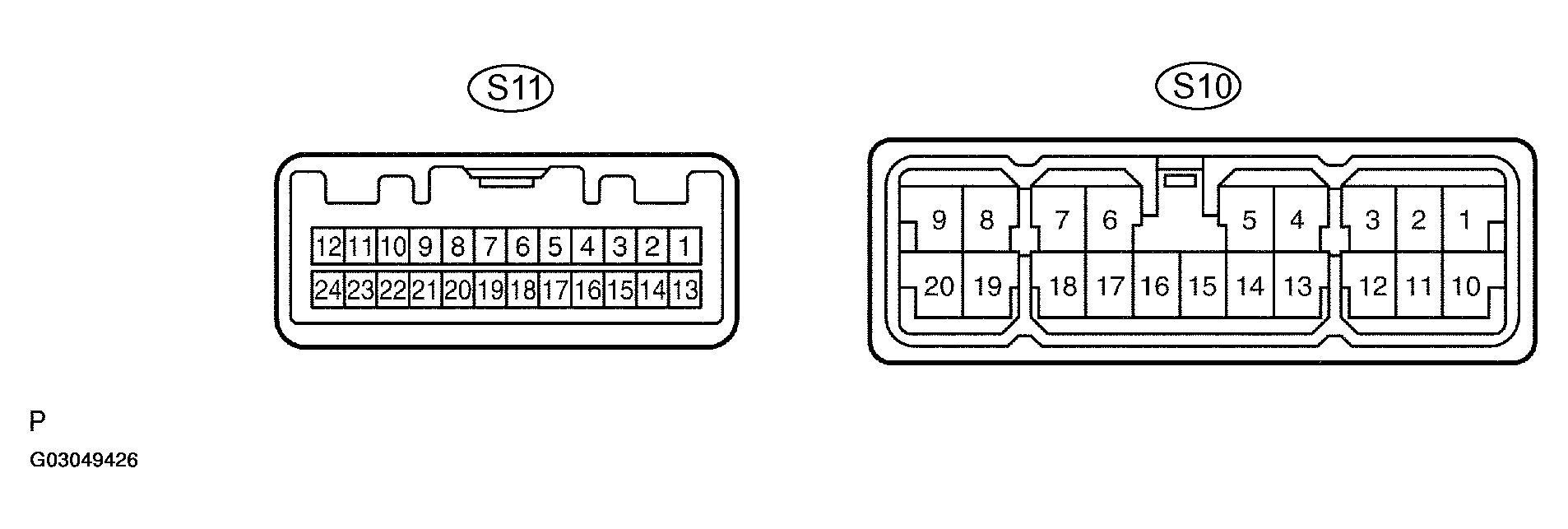

Fig 5: Identifying Stereo Component Amplifier Assy Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

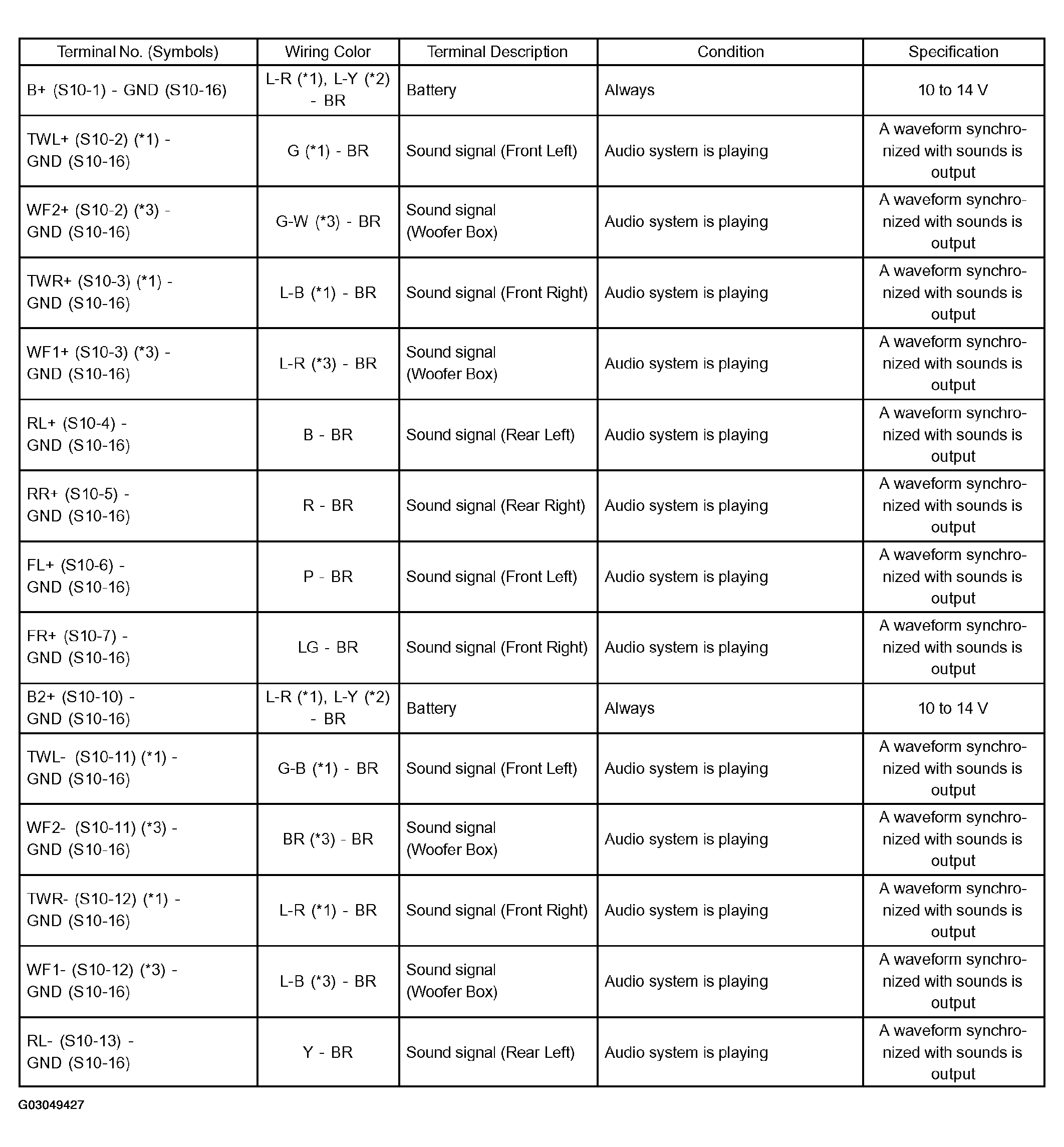

Fig 6: Stereo Component Amplifier Specifications Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

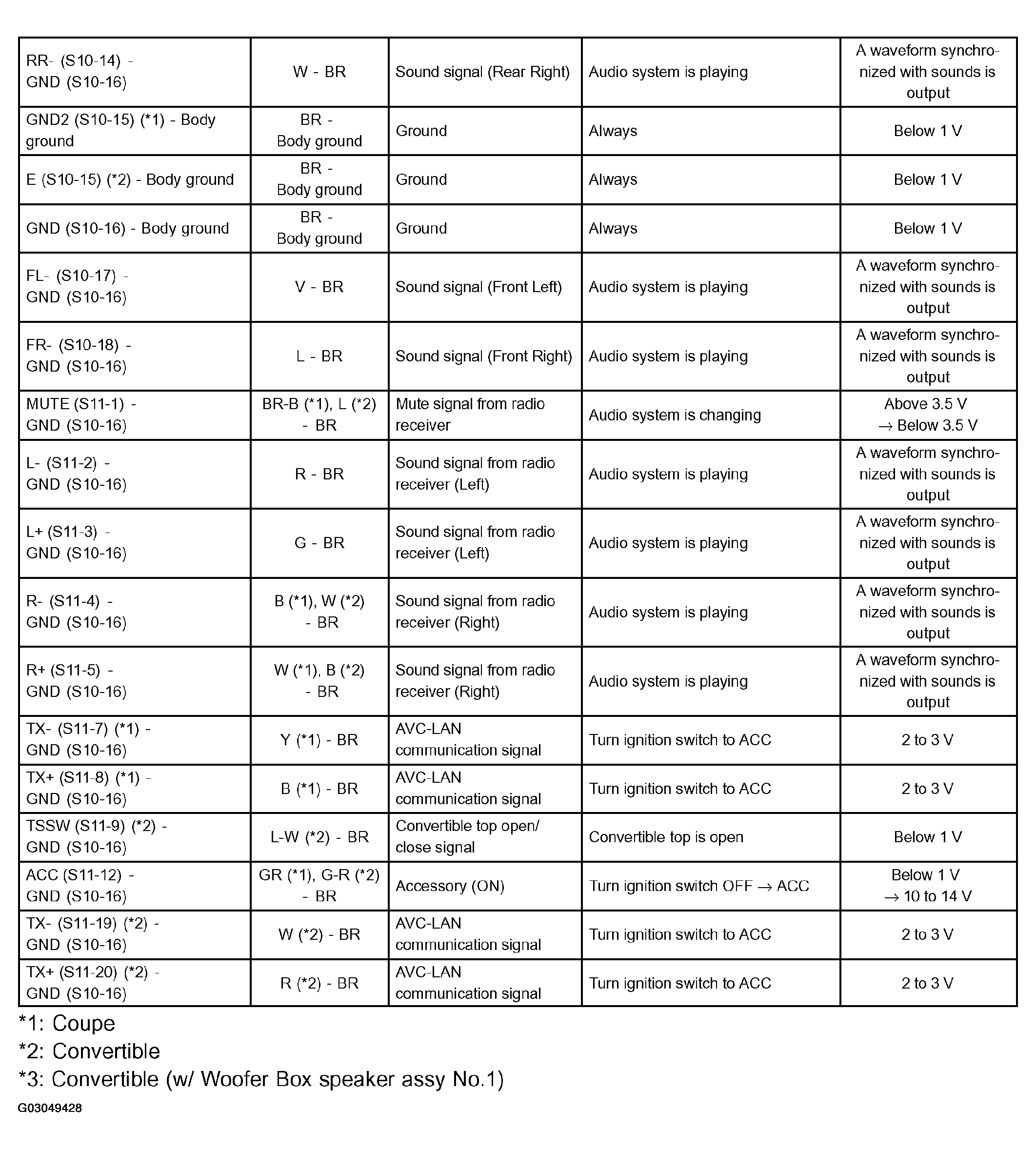

Fig 7: Stereo Component Amplifier Specifications Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
