Crankshaft Position Sensor: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER RH
1. Remove the 5 screws, 3 clips and under cover.

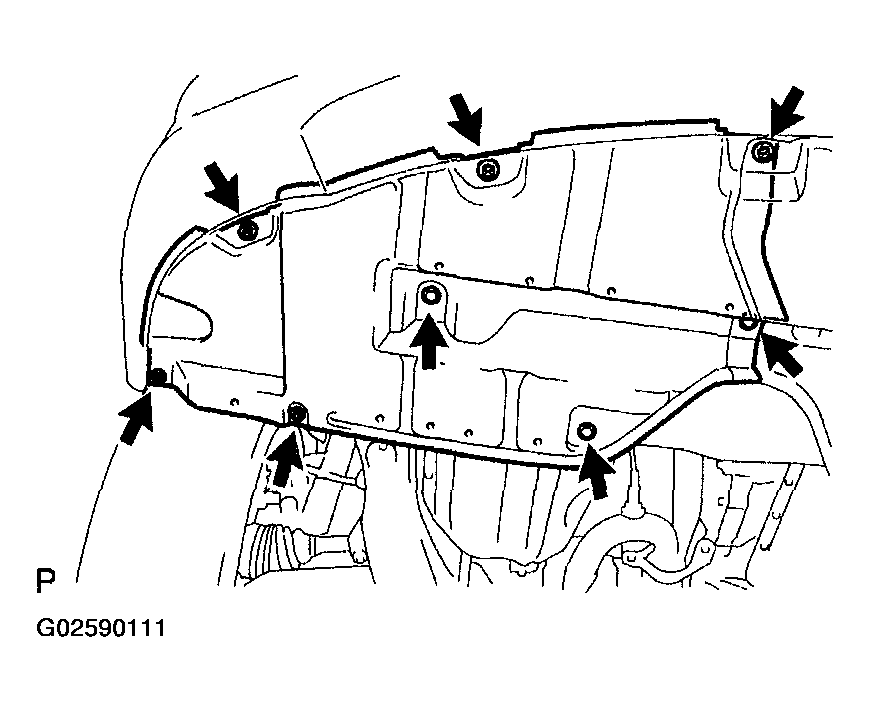

Fig 1: Removing Screws, Clips & Under Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER APRON SEAL RH
1. Remove the clip, 2 bolts and apron seal.

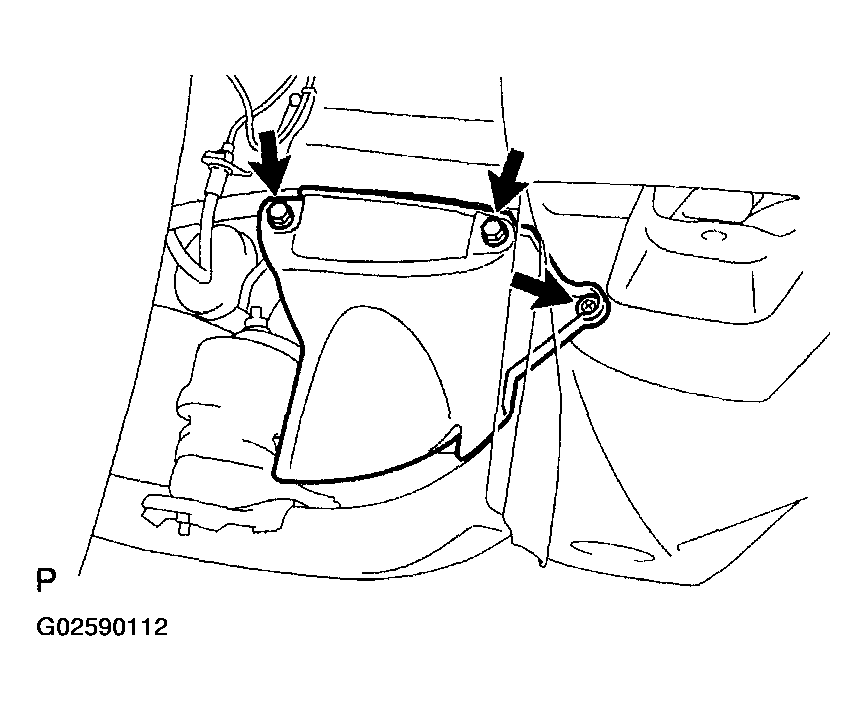

Fig 2: Removing Clip, Bolts & Apron Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.

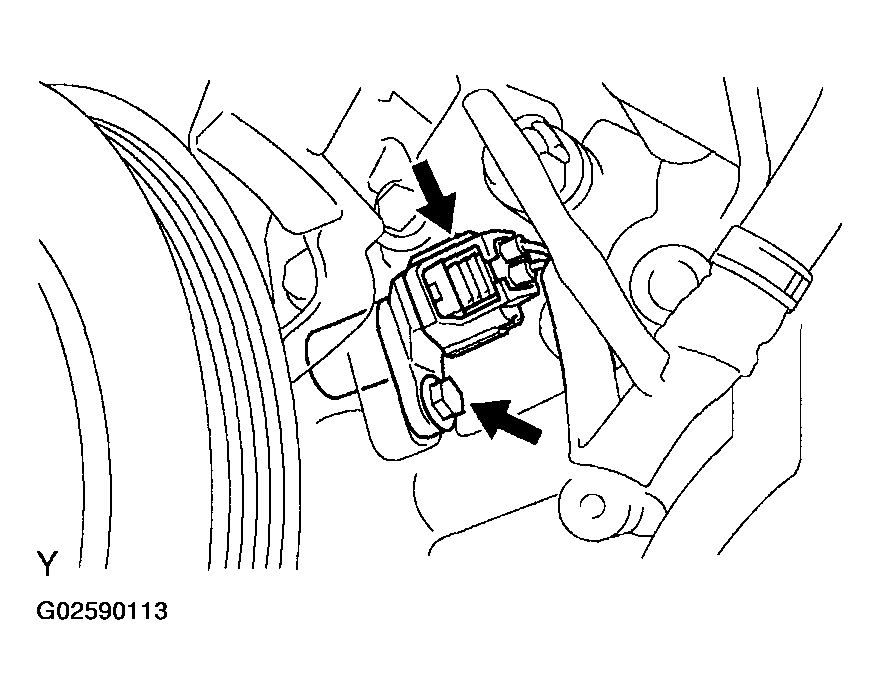

Fig 3: Removing Crankshaft Position Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
INSTALL FRONT FENDER APRON SEAL RH
INSTALL ENGINE UNDER COVER RH
