Stabilizer Bar Rear (Ff): Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE STABILIZER BAR REAR
   1. Remove the 2 bolts, nuts and stabilizer bar rear.
2. INSTALL STABILIZER BAR REAR
   1. Install the 2 bolts, nuts and stabilizer bar rear.

      Torque: 195 N.m (1,988 kgf.cm, 144 ft.lbf)

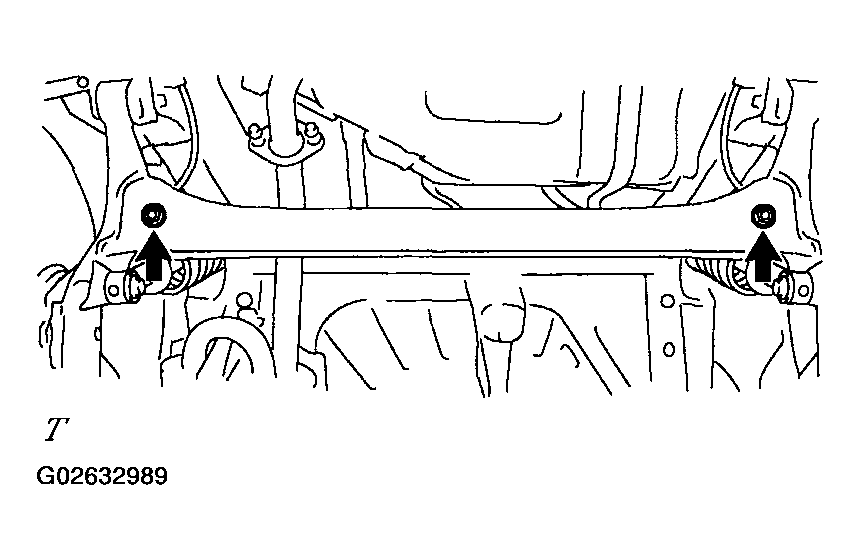

      Fig 1: Removing Bolts And Nuts Stabilizer Bar Rear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Install the stabilizer bar rear so that the mark is positioned on the rear left side of the vehicle.

   Fig 2: Locating Mark

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
