Horn System: Location

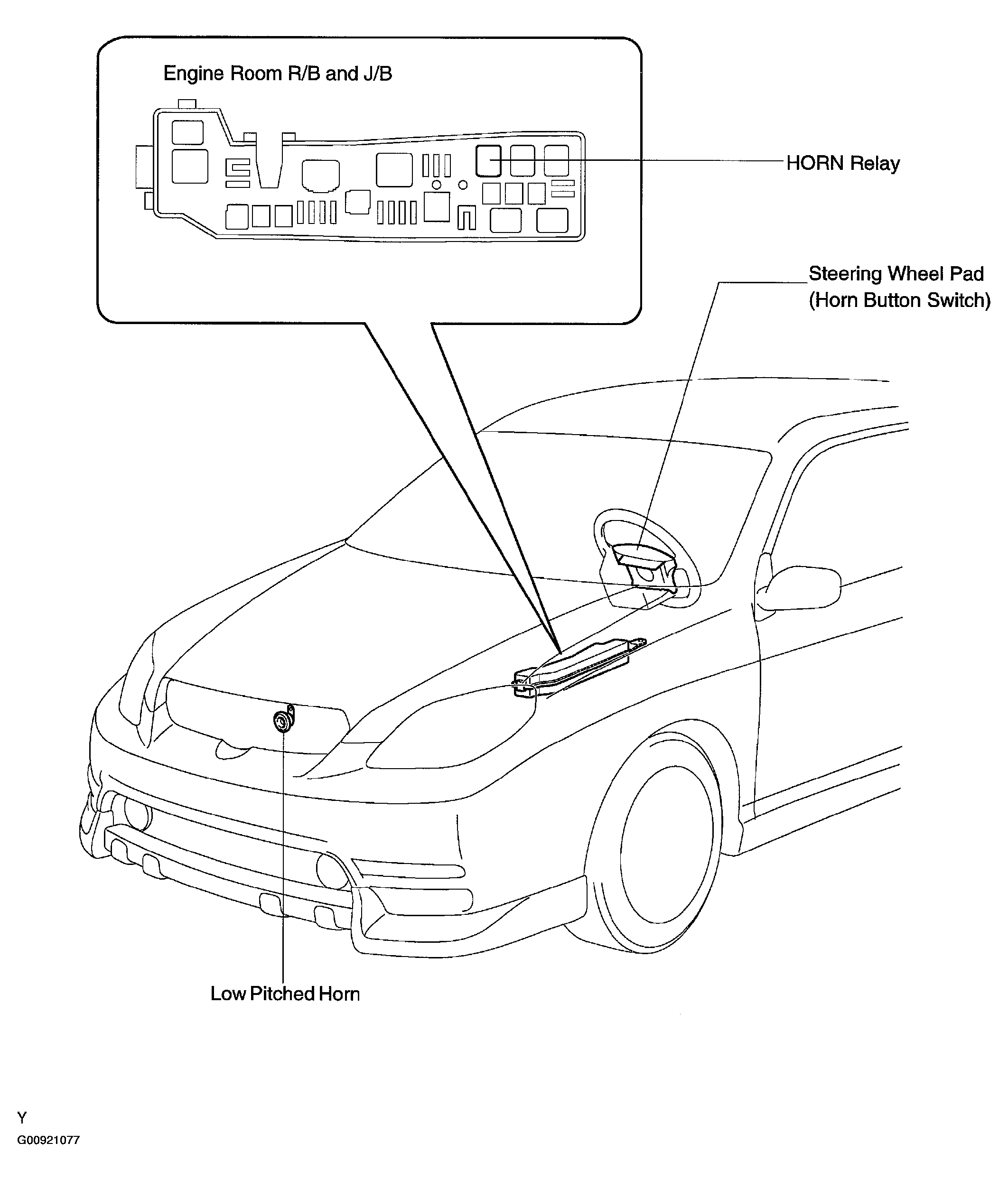

Fig 1: Identifying Location Of Horn System
G00921077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
