Engine Control System (SFI) - Diagnostics (1ZZ-FE)
›
Terminals Of ECM
Terminals Of ECM

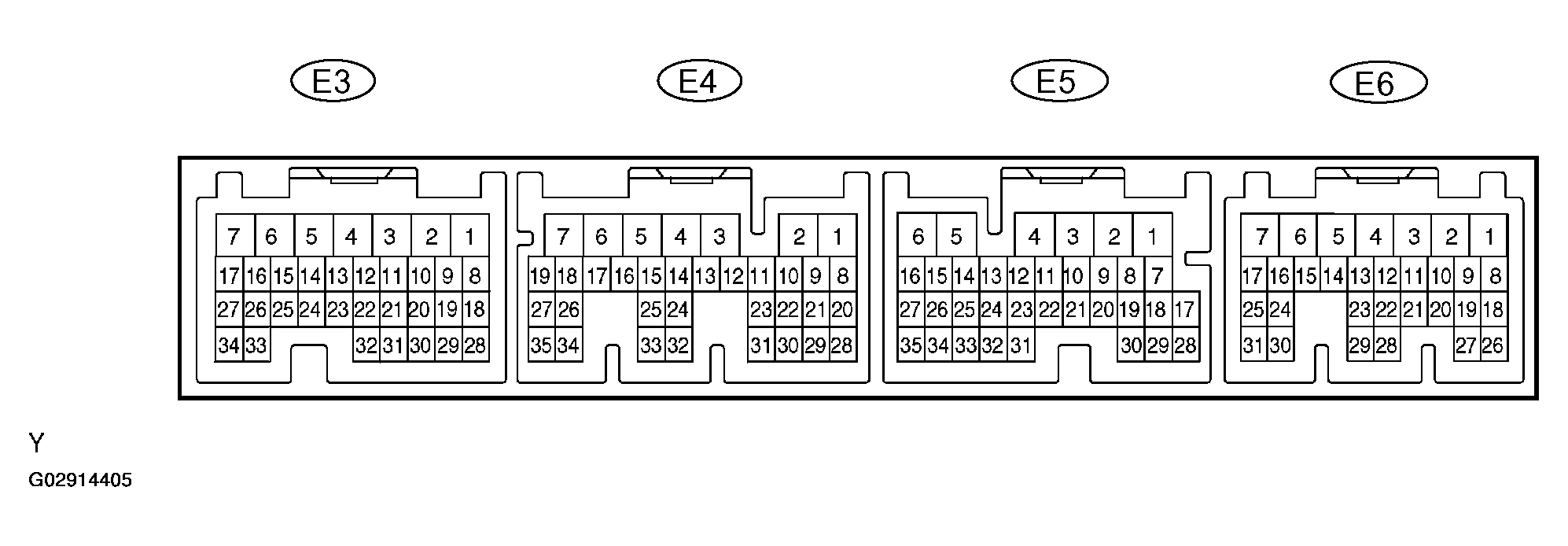

Fig 1: Identifying ECM Connectors Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

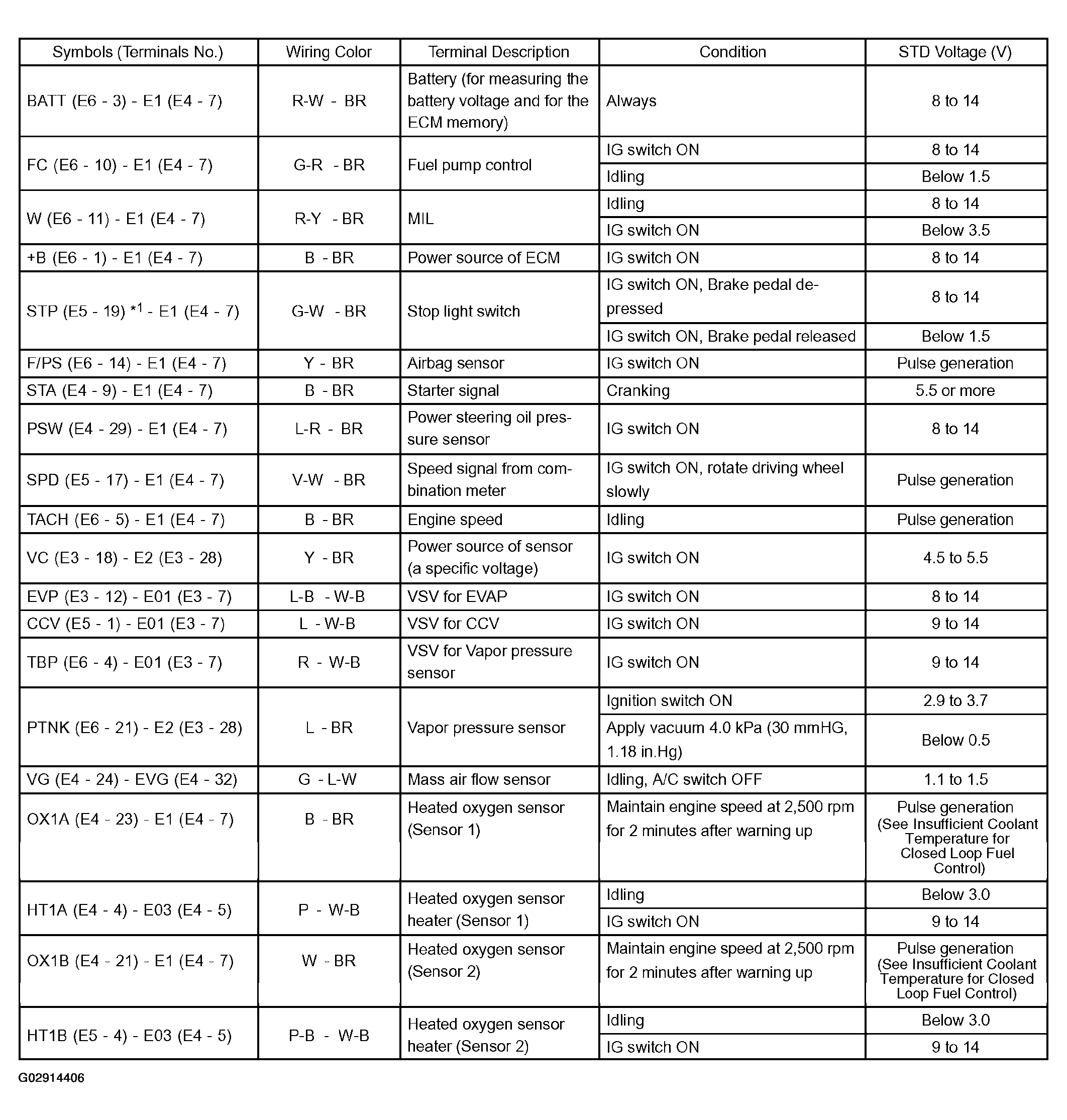

Fig 2: ECM Terminal Description (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

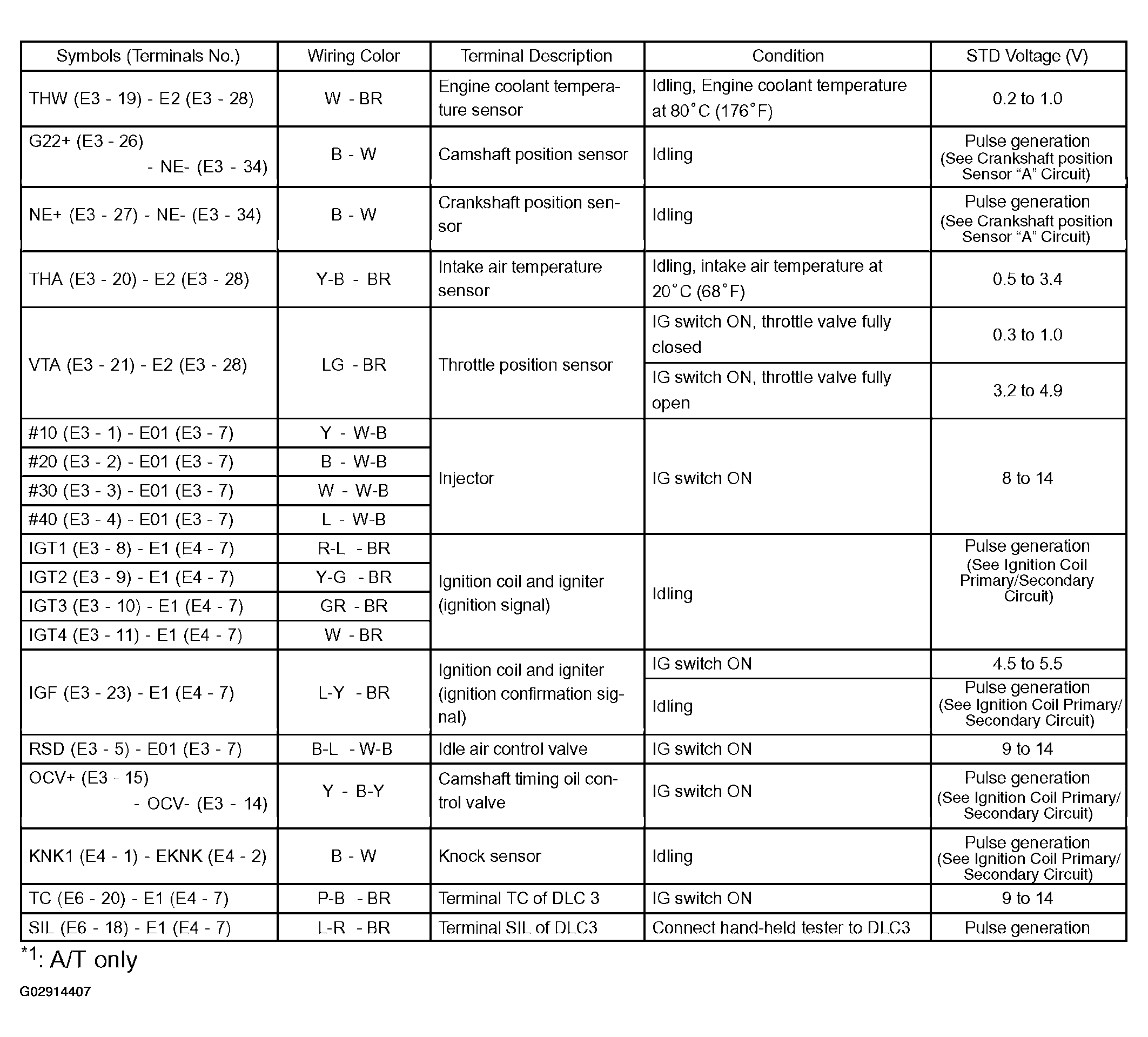

Fig 3: ECM Terminals Description (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
