Section 580 (Power Door Lock Control System): Location

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

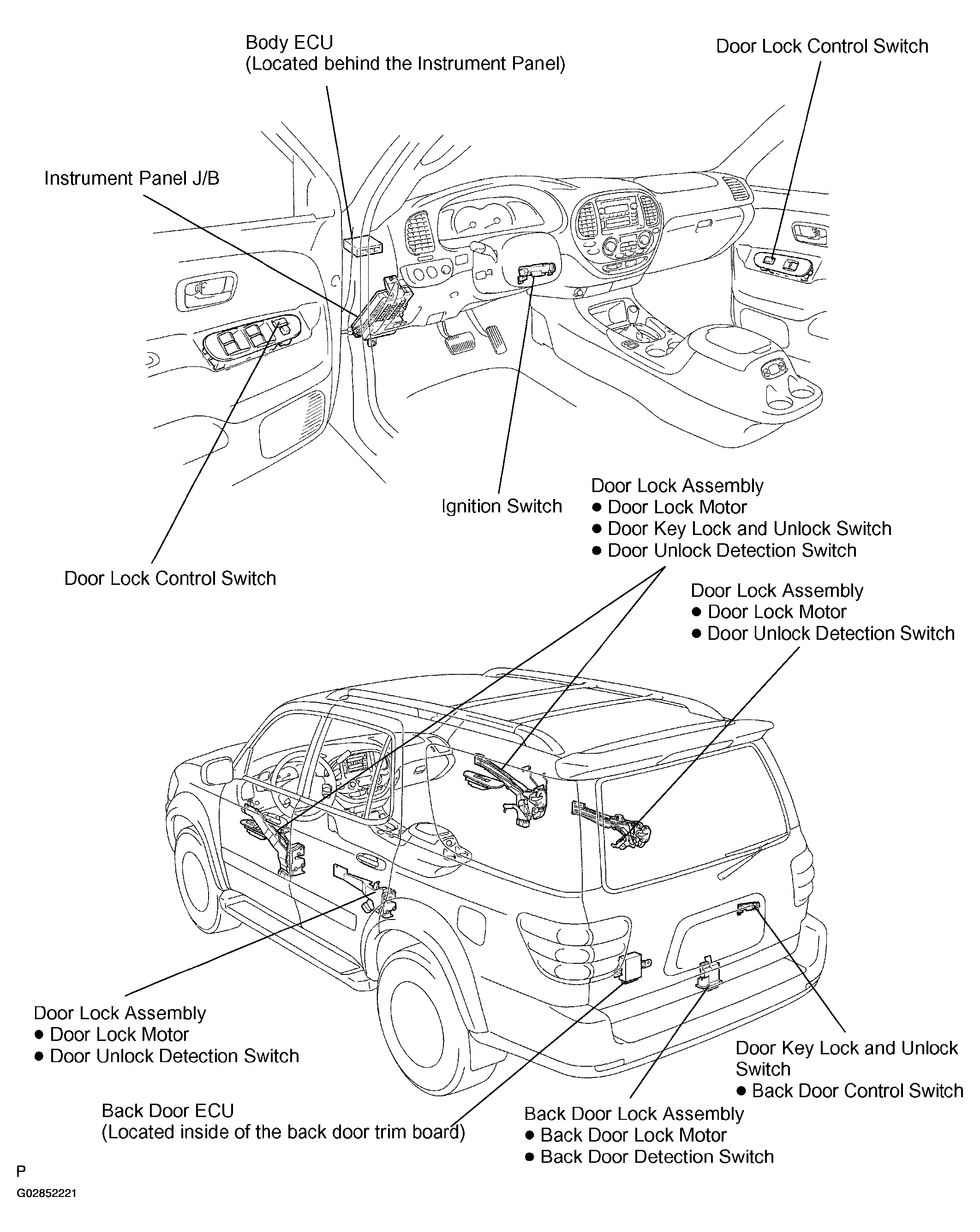

Fig 1: Locating Power Door Lock Control System Components
G02852221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
