Engine Control System (SFI) - Diagnostics (2ZZ-GE): Location

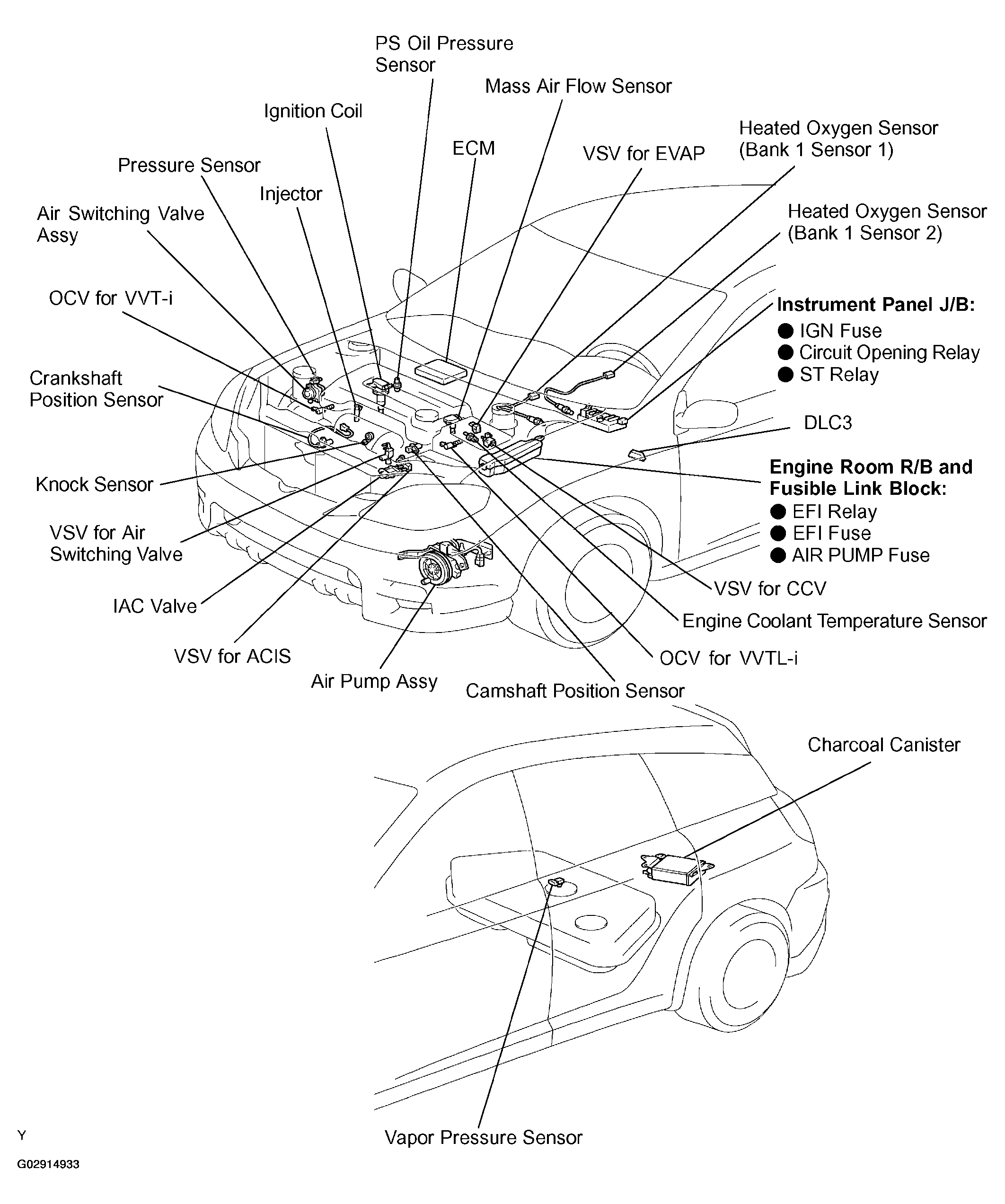

Fig 1: Electrical Components Location

G02914933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
