Terminals Of ECM

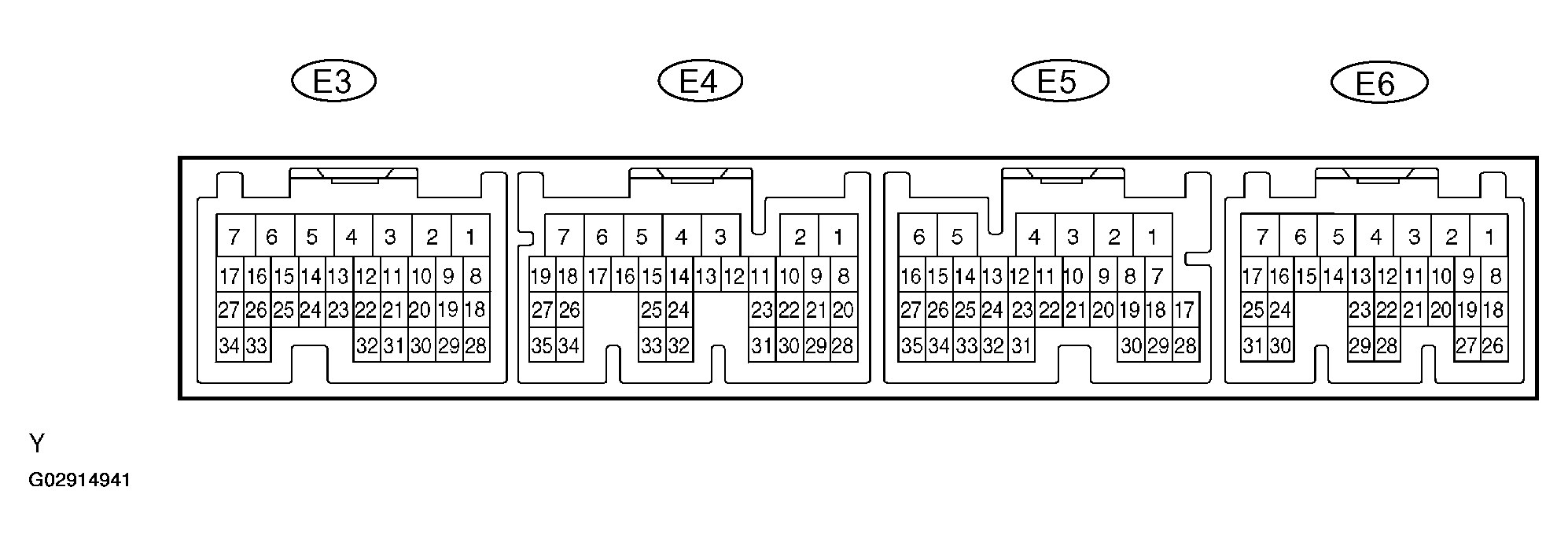

Fig 1: ECM Connector Terminal Identification
G02914941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

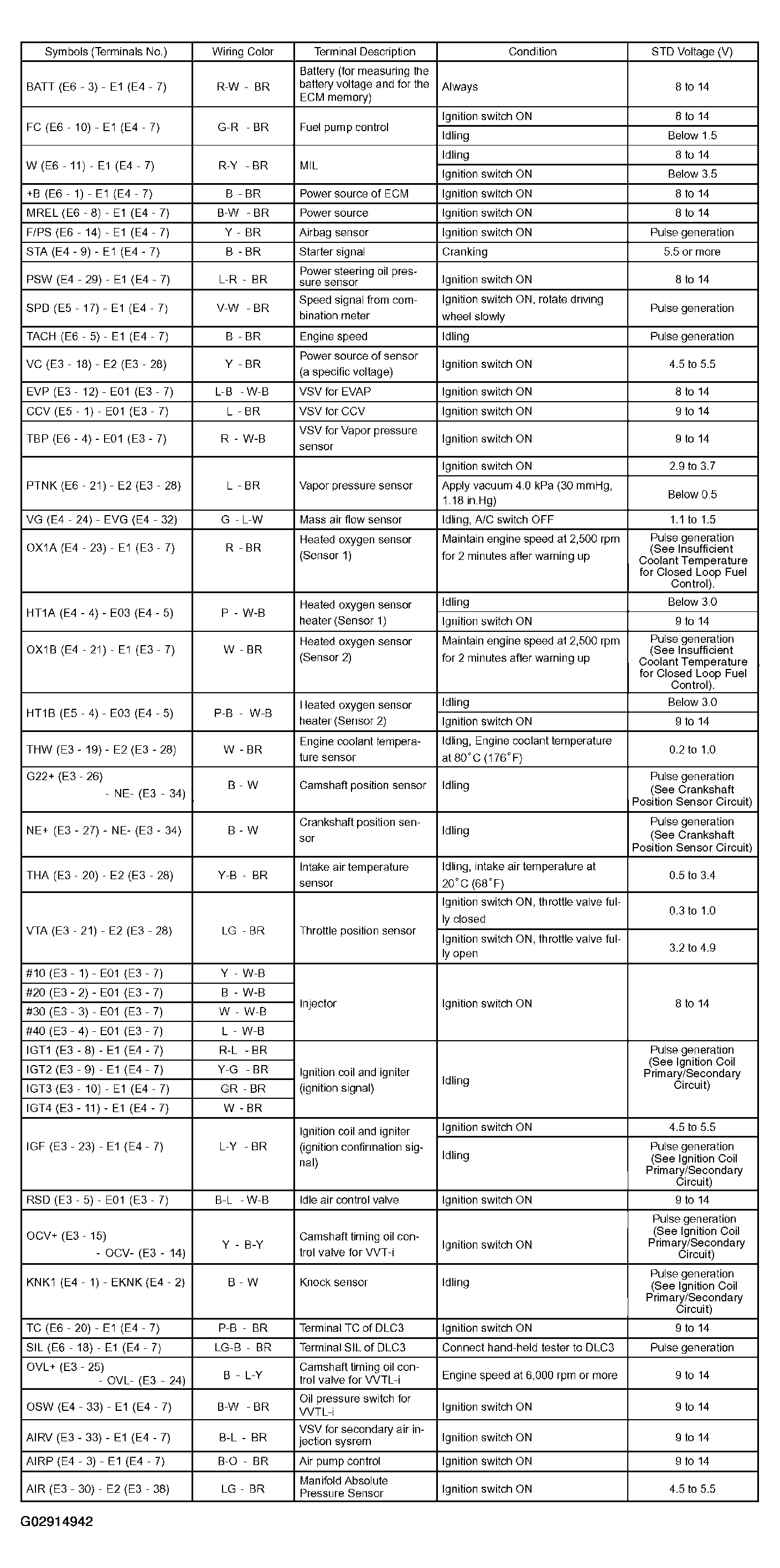

Fig 2: Terminal Condition Voltage Table
G02914942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
