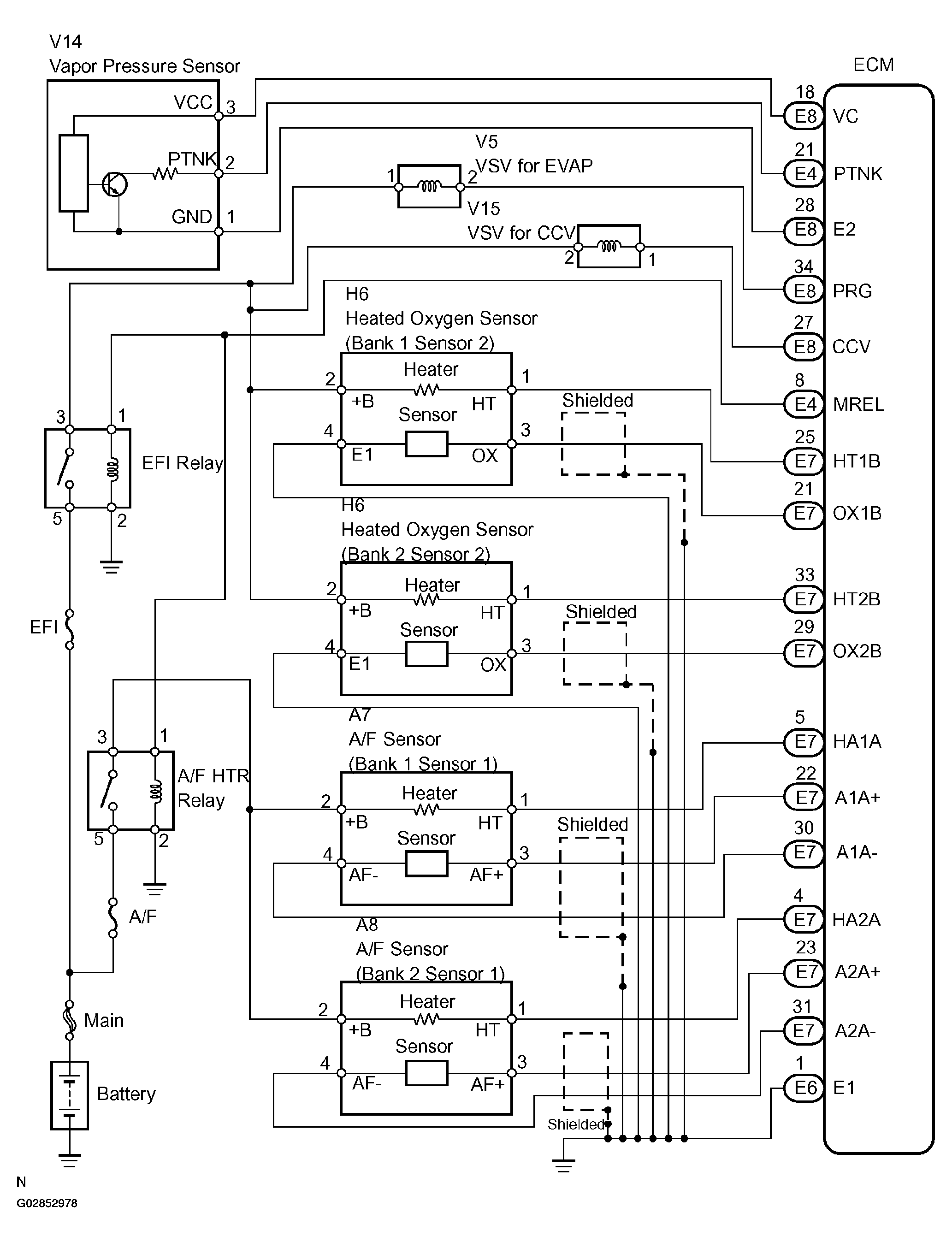

System Diagram
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

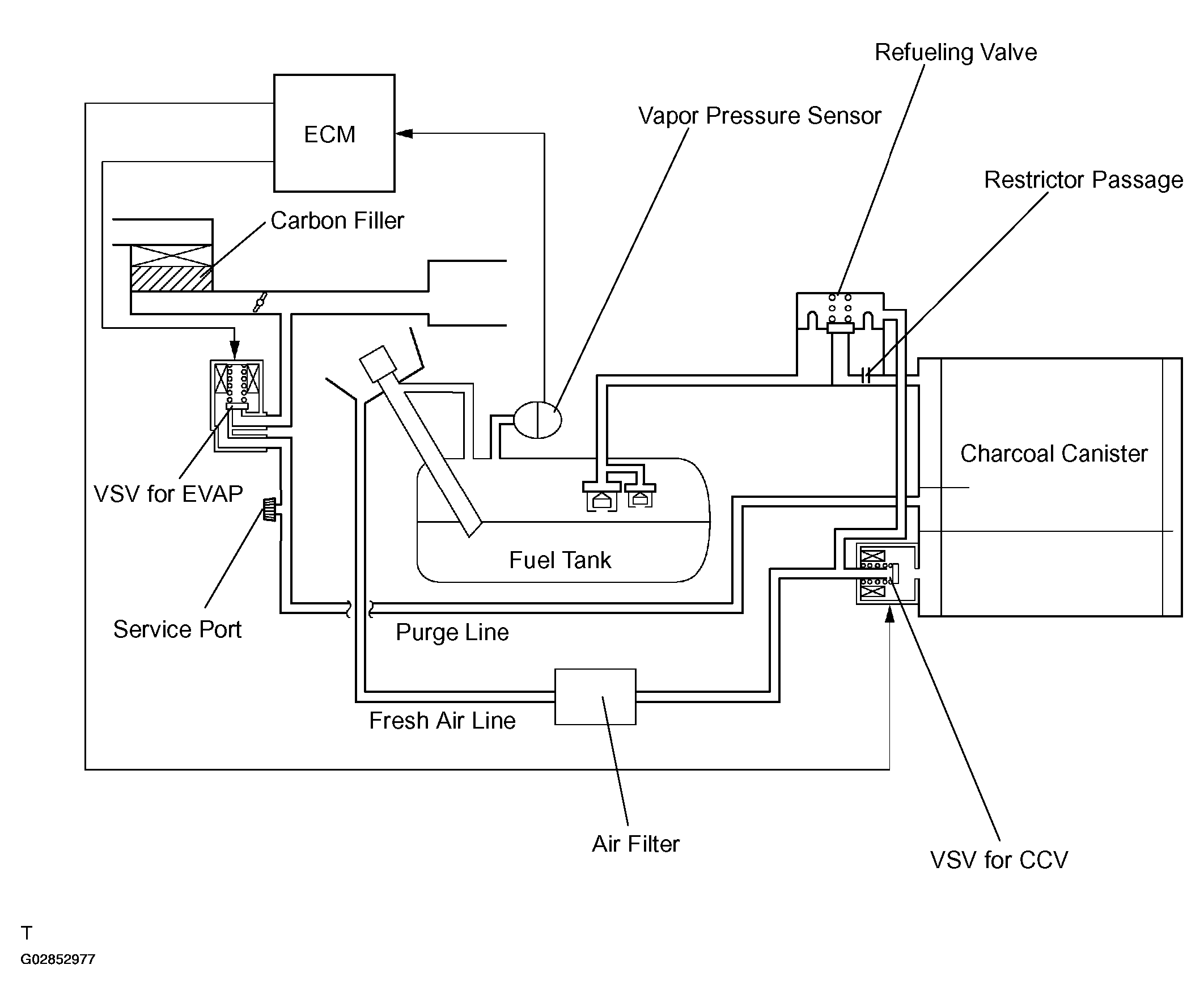

The emission control system is determined by the ECM based on signals from various sensors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
