Rear Door: Components

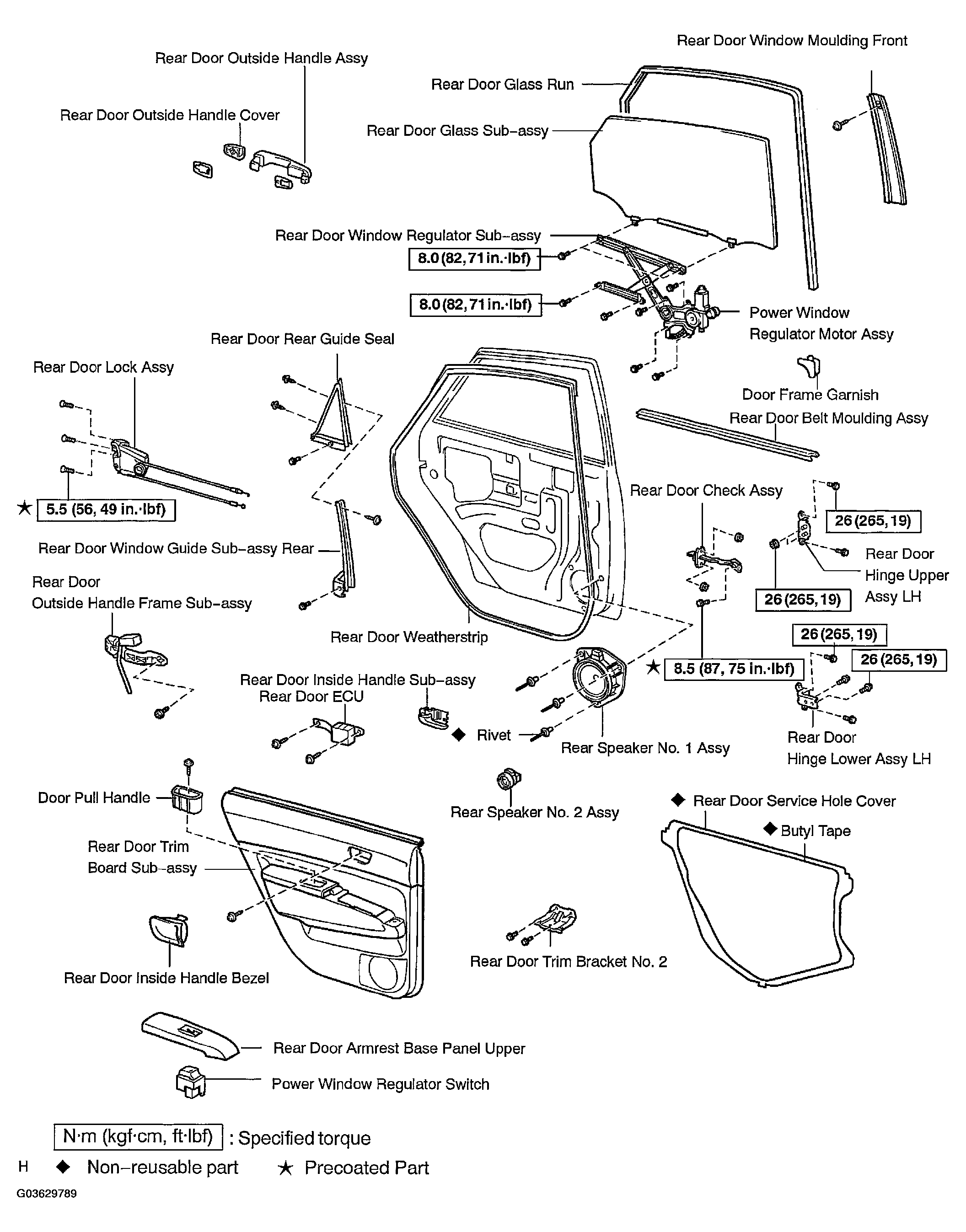

Fig 1: Identifying Component Of Rear Door

G03629789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
